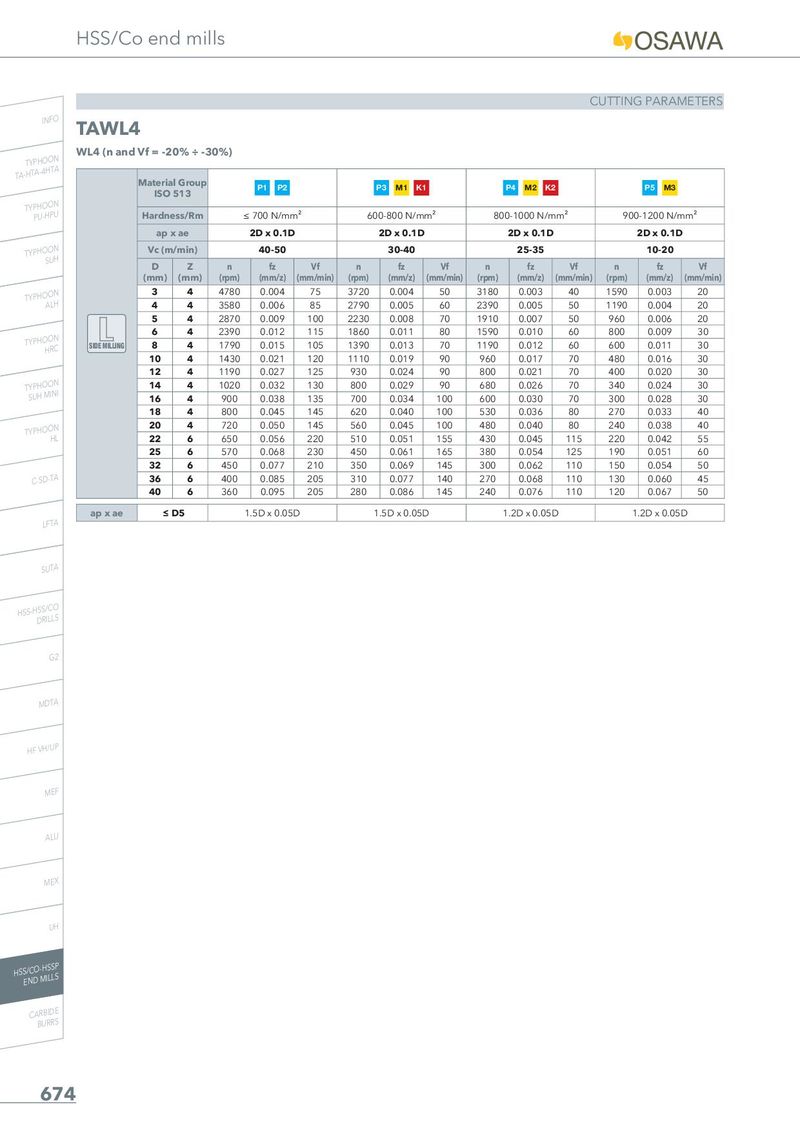

TYPHOON TA-HTA-4HTA

CUTTING PARAMETERS

TAWL4

WL4 (n and Vf = -20% ÷ -30%)

	Materia ISO	l Group 513		P1 P2			P3 M1 K1			P4 M2 K2			P5 M3
	Hardn	ess/Rm	≤	700 N/mm	²	60	0-800 N/m	m²	80	0-1000 N/m	m²	90	0-1200 N/m	m²
	ap	x ae		2D x 0.1D			2D x 0.1D			2D x 0.1D			2D x 0.1D
	Vc (m	/min)		40-50			30-40			25-35			10-20
	D (mm)	Z (mm)	n (rpm)	fz (mm/z) (	Vf mm/min)	n (rpm)	fz (mm/z) (	Vf mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)
	3	4	4780	0.004	75	3720	0.004	50	3180	0.003	40	1590	0.003	20
	4	4	3580	0.006	85	2790	0.005	60	2390	0.005	50	1190	0.004	20
	5	4	2870	0.009	100	2230	0.008	70	1910	0.007	50	960	0.006	20
	6	4	2390	0.012	115	1860	0.011	80	1590	0.010	60	800	0.009	30
SIDE MILLING	8	4	1790	0.015	105	1390	0.013	70	1190	0.012	60	600	0.011	30
	10	4	1430	0.021	120	1110	0.019	90	960	0.017	70	480	0.016	30
	12	4	1190	0.027	125	930	0.024	90	800	0.021	70	400	0.020	30
	14	4	1020	0.032	130	800	0.029	90	680	0.026	70	340	0.024	30
	16	4	900	0.038	135	700	0.034	100	600	0.030	70	300	0.028	30
	18	4	800	0.045	145	620	0.040	100	530	0.036	80	270	0.033	40
	20	4	720	0.050	145	560	0.045	100	480	0.040	80	240	0.038	40
	22	6	650	0.056	220	510	0.051	155	430	0.045	115	220	0.042	55
	25	6	570	0.068	230	450	0.061	165	380	0.054	125	190	0.051	60
	32	6	450	0.077	210	350	0.069	145	300	0.062	110	150	0.054	50
	36	6	400	0.085	205	310	0.077	140	270	0.068	110	130	0.060	45
	40	6	360	0.095	205	280	0.086	145	240	0.076	110	120	0.067	50
ap x ae	≤	D5	1	.5D x 0.05D		1	.5D x 0.05D		1	.2D x 0.05	D		1.2D x 0.05	D
