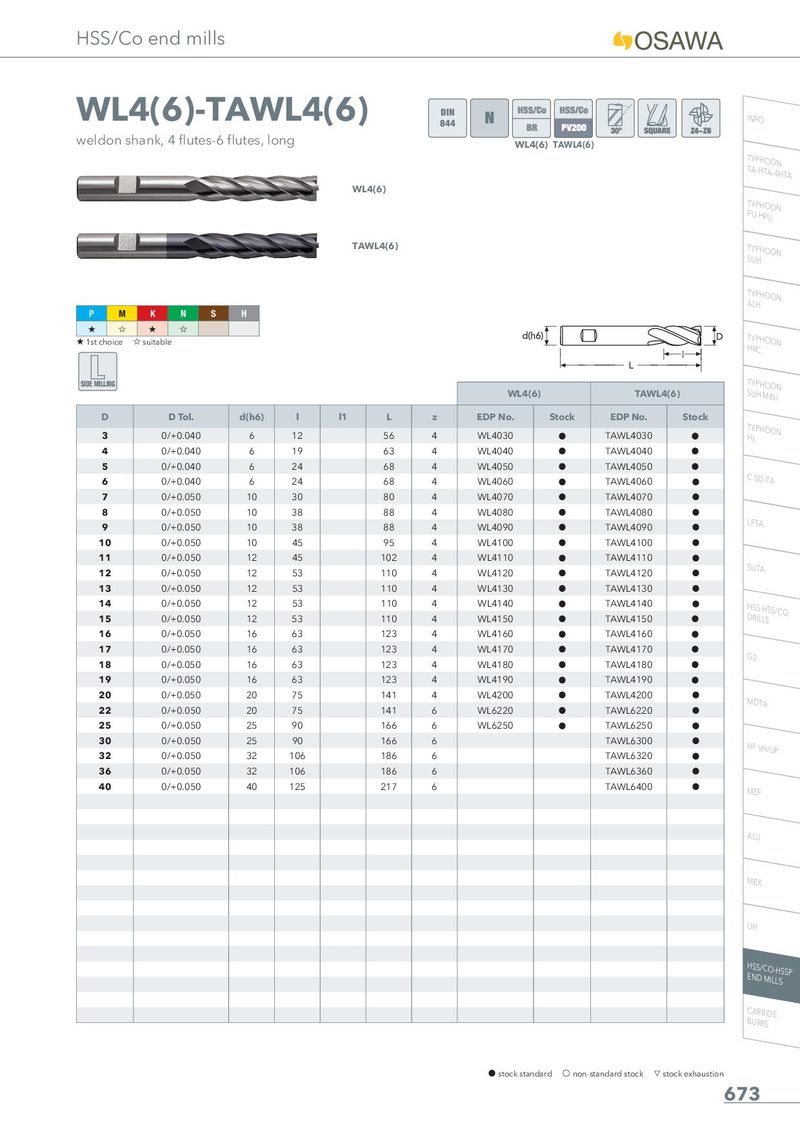

WL4(6)-TAWL4(6)

weldon shank, 4 flutes-6 flutes, long

WL4(6)

TAWL4(6)

DIN 844

WL4(6) TAWL4(6)

INFO

TYPHOON TA-HTA-4HTA

TYPHOON PU-HPU

TYPHOON SUH

TYPHOON ALH

P M	K N S	H
� � �1st choice	� � �suitable
SIDE MILLING
						WL4(	6)	TAWL4	(6)
D	D Tol.	d(h6)	l	l1 L	z	EDP No.	Stock	EDP No.	Stock
3	0/+0.040	6	12	56	4	WL4030	h	TAWL4030	h
4	0/+0.040	6	19	63	4	WL4040	h	TAWL4040	h
5	0/+0.040	6	24	68	4	WL4050	h	TAWL4050	h
6	0/+0.040	6	24	68	4	WL4060	h	TAWL4060	h
7	0/+0.050	10	30	80	4	WL4070	h	TAWL4070	h
8	0/+0.050	10	38	88	4	WL4080	h	TAWL4080	h
9	0/+0.050	10	38	88	4	WL4090	h	TAWL4090	h
10	0/+0.050	10	45	95	4	WL4100	h	TAWL4100	h
11	0/+0.050	12	45	102	4	WL4110	h	TAWL4110	h
12	0/+0.050	12	53	110	4	WL4120	h	TAWL4120	h
13	0/+0.050	12	53	110	4	WL4130	h	TAWL4130	h
14	0/+0.050	12	53	110	4	WL4140	h	TAWL4140	h
15	0/+0.050	12	53	110	4	WL4150	h	TAWL4150	h
16	0/+0.050	16	63	123	4	WL4160	h	TAWL4160	h
17	0/+0.050	16	63	123	4	WL4170	h	TAWL4170	h
18	0/+0.050	16	63	123	4	WL4180	h	TAWL4180	h
19	0/+0.050	16	63	123	4	WL4190	h	TAWL4190	h
20	0/+0.050	20	75	141	4	WL4200	h	TAWL4200	h
22	0/+0.050	20	75	141	6	WL6220	h	TAWL6220	h
25	0/+0.050	25	90	166	6	WL6250	h	TAWL6250	h
30	0/+0.050	25	90	166	6			TAWL6300	h
32	0/+0.050	32	106	186	6			TAWL6320	h
36	0/+0.050	32	106	186	6			TAWL6360	h
40	0/+0.050	40	125	217	6			TAWL6400	h
