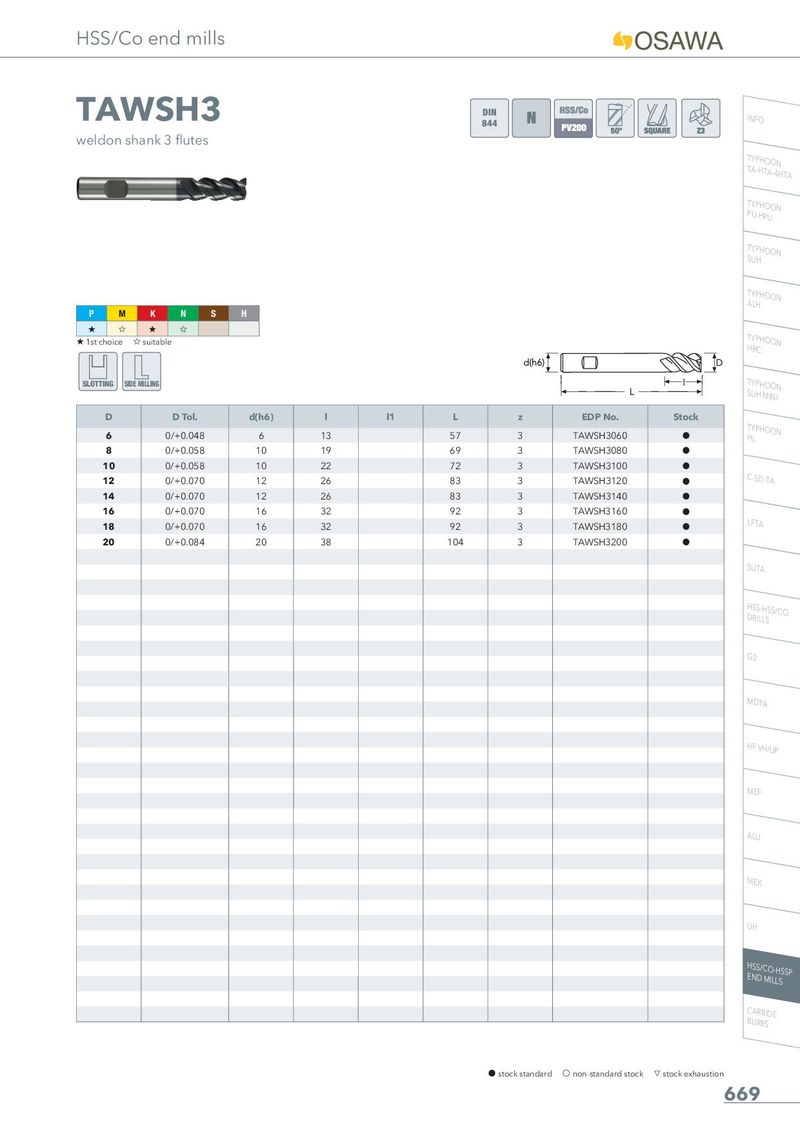

TAWSH3
weldon shank 3 flutes
DIN 844
INFO
TYPHOON TA-HTA-4HTA
TYPHOON PU-HPU
TYPHOON SUH
TYPHOON ALH
| P M | K N S | H | ||||||
| � � | � � | |||||||
| �1st choice | �suitable | |||||||
| SLOTTING SID | E MILLING | |||||||
| D | D Tol. | d(h6) | l | l1 | L | z | EDP No. | Stock |
| 6 | 0/+0.048 | 6 | 13 | 57 | 3 | TAWSH3060 | h | |
| 8 | 0/+0.058 | 10 | 19 | 69 | 3 | TAWSH3080 | h | |
| 10 | 0/+0.058 | 10 | 22 | 72 | 3 | TAWSH3100 | h | |
| 12 | 0/+0.070 | 12 | 26 | 83 | 3 | TAWSH3120 | h | |
| 14 | 0/+0.070 | 12 | 26 | 83 | 3 | TAWSH3140 | h | |
| 16 | 0/+0.070 | 16 | 32 | 92 | 3 | TAWSH3160 | h | |
| 18 | 0/+0.070 | 16 | 32 | 92 | 3 | TAWSH3180 | h | |
| 20 | 0/+0.084 | 20 | 38 | 104 | 3 | TAWSH3200 | h |
