INFO

TYPHOON TA-HTA-4HTA

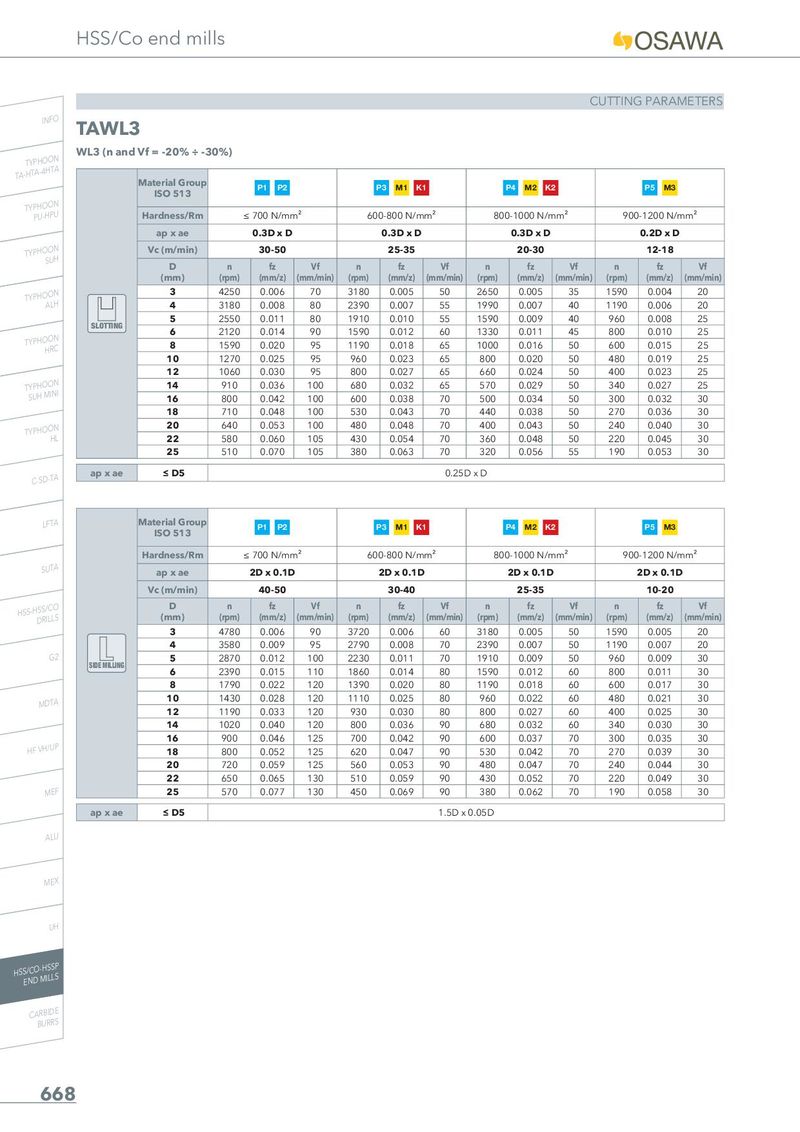

CUTTING PARAMETERS

TAWL3

WL3 (n and Vf = -20% ÷ -30%)

	Material Group ISO 513		P1 P2			P3 M1 K1			P4 M2 K	2		P5 M3
	Hardness/Rm	≤	700 N/mm	²	60	0-800 N/m	m²	80	0-1000 N/m	m²	90	0-1200 N/	mm²
	ap x ae		0.3D x D			0.3D x D			0.3D x D			0.2D x D
	Vc (m/min)		30-50			25-35			20-30			12-18
	D (mm)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)
	3	4250	0.006	70	3180	0.005	50	2650	0.005	35	1590	0.004	20
	4	3180	0.008	80	2390	0.007	55	1990	0.007	40	1190	0.006	20
SLOTTING	5	2550	0.011	80	1910	0.010	55	1590	0.009	40	960	0.008	25
	6	2120	0.014	90	1590	0.012	60	1330	0.011	45	800	0.010	25
	8	1590	0.020	95	1190	0.018	65	1000	0.016	50	600	0.015	25
	10	1270	0.025	95	960	0.023	65	800	0.020	50	480	0.019	25
	12	1060	0.030	95	800	0.027	65	660	0.024	50	400	0.023	25
	14	910	0.036	100	680	0.032	65	570	0.029	50	340	0.027	25
	16	800	0.042	100	600	0.038	70	500	0.034	50	300	0.032	30
	18	710	0.048	100	530	0.043	70	440	0.038	50	270	0.036	30
	20	640	0.053	100	480	0.048	70	400	0.043	50	240	0.040	30
	22	580	0.060	105	430	0.054	70	360	0.048	50	220	0.045	30
	25	510	0.070	105	380	0.063	70	320	0.056	55	190	0.053	30
ap x ae	≤ D5						0.25D	x D

TYPHOON

SUH

TYPHOON

HRC

TYPHOON

C-SD-TA

	Material Group ISO 513		P1 P2		P	3 M1 K1			P4 M2 K2			P5 M3
	Hardness/Rm	≤	700 N/mm	²	60	0-800 N/m	m²	800	-1000 N/m	m²	90	0-1200 N/	mm²
	ap x ae		2D x 0.1D			2D x 0.1D			2D x 0.1D			2D x 0.1D
	Vc (m/min)		40-50			30-40			25-35			10-20
	D (mm)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)
	3	4780	0.006	90	3720	0.006	60	3180	0.005	50	1590	0.005	20
	4	3580	0.009	95	2790	0.008	70	2390	0.007	50	1190	0.007	20
	5	2870	0.012	100	2230	0.011	70	1910	0.009	50	960	0.009	30
SIDE MILLING	6	2390	0.015	110	1860	0.014	80	1590	0.012	60	800	0.011	30
	8	1790	0.022	120	1390	0.020	80	1190	0.018	60	600	0.017	30
	10	1430	0.028	120	1110	0.025	80	960	0.022	60	480	0.021	30
	12	1190	0.033	120	930	0.030	80	800	0.027	60	400	0.025	30
	14	1020	0.040	120	800	0.036	90	680	0.032	60	340	0.030	30
	16	900	0.046	125	700	0.042	90	600	0.037	70	300	0.035	30
	18	800	0.052	125	620	0.047	90	530	0.042	70	270	0.039	30
	20	720	0.059	125	560	0.053	90	480	0.047	70	240	0.044	30
	22	650	0.065	130	510	0.059	90	430	0.052	70	220	0.049	30
	25	570	0.077	130	450	0.069	90	380	0.062	70	190	0.058	30
ap x ae	≤ D5						1.5D x	0.05D

DRILLS

MDTA

ALU

MEX

UH

HSS/CO-HSSP END MILLS

CARBIDE
