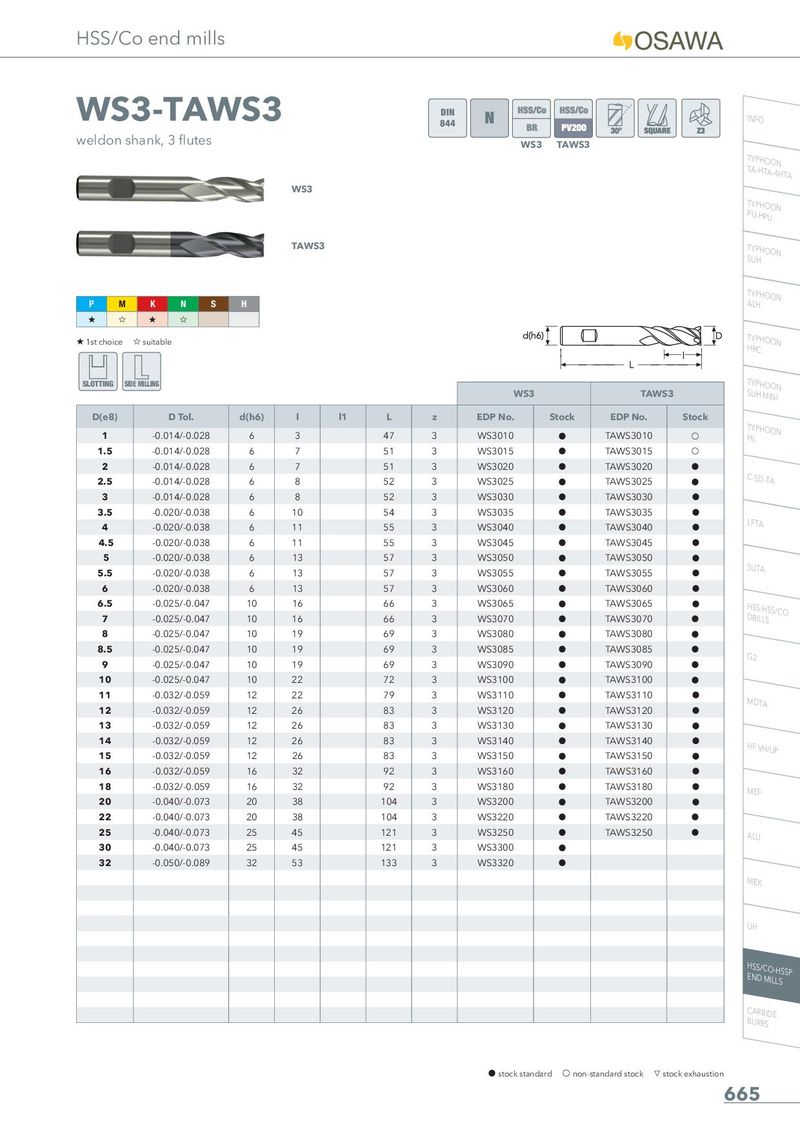

HSS/Co end mills WS3-TAWS3 DIN INFO 844 weldon shank, 3 flutes WS3 TAWS3 TTYAP-HHTOAO-4NHTA WS3 TPYUP-HHPOUON TAWS3 TSUYPHHOON P M K N S H TAYLPHHOON + , + , + 1st choice , suitable THYRPCHOON SLOTTING SIDE MILLING TSUYPHHMOIONIN WS3 TAWS3 D(e8) D Tol. d(h6) l l1 L z EDP No. Stock EDP No. Stock 1 -0.014/-0.028 6 3 47 3 WS3010 h TAWS3010 f THYLPHOON 1.5 -0.014/-0.028 6 7 51 3 WS3015 h TAWS3015 f 2 -0.014/-0.028 6 7 51 3 WS3020 h TAWS3020 h 2.5 -0.014/-0.028 6 8 52 3 WS3025 h TAWS3025 h C-SD-TA 3 -0.014/-0.028 6 8 52 3 WS3030 h TAWS3030 h 3.5 -0.020/-0.038 6 10 54 3 WS3035 h TAWS3035 h 4 -0.020/-0.038 6 11 55 3 WS3040 h TAWS3040 h LFTA 4.5 -0.020/-0.038 6 11 55 3 WS3045 h TAWS3045 h 5 -0.020/-0.038 6 13 57 3 WS3050 h TAWS3050 h 5.5 -0.020/-0.038 6 13 57 3 WS3055 h TAWS3055 h SUTA 6 -0.020/-0.038 6 13 57 3 WS3060 h TAWS3060 h 6.5 -0.025/-0.047 10 16 66 3 WS3065 h TAWS3065 h HDSRSIL-LHSSS/CO 7 -0.025/-0.047 10 16 66 3 WS3070 h TAWS3070 h 8 -0.025/-0.047 10 19 69 3 WS3080 h TAWS3080 h 8.5 -0.025/-0.047 10 19 69 3 WS3085 h TAWS3085 h G2 9 -0.025/-0.047 10 19 69 3 WS3090 h TAWS3090 h 10 -0.025/-0.047 10 22 72 3 WS3100 h TAWS3100 h 11 -0.032/-0.059 12 22 79 3 WS3110 h TAWS3110 h MDTA 12 -0.032/-0.059 12 26 83 3 WS3120 h TAWS3120 h 13 -0.032/-0.059 12 26 83 3 WS3130 h TAWS3130 h 14 -0.032/-0.059 12 26 83 3 WS3140 h TAWS3140 h HF VH/UP 15 -0.032/-0.059 12 26 83 3 WS3150 h TAWS3150 h 16 -0.032/-0.059 16 32 92 3 WS3160 h TAWS3160 h 18 -0.032/-0.059 16 32 92 3 WS3180 h TAWS3180 h MEF 20 -0.040/-0.073 20 38 104 3 WS3200 h TAWS3200 h 22 -0.040/-0.073 20 38 104 3 WS3220 h TAWS3220 h 25 -0.040/-0.073 25 45 121 3 WS3250 h TAWS3250 h ALU 30 -0.040/-0.073 25 45 121 3 WS3300 h 32 -0.050/-0.089 32 53 133 3 WS3320 h MEX UH HENSSD/CMOIL-LHSSSP CBUARRRBSIDE h stock standard f non-standard stock m stock exhaustion 665
