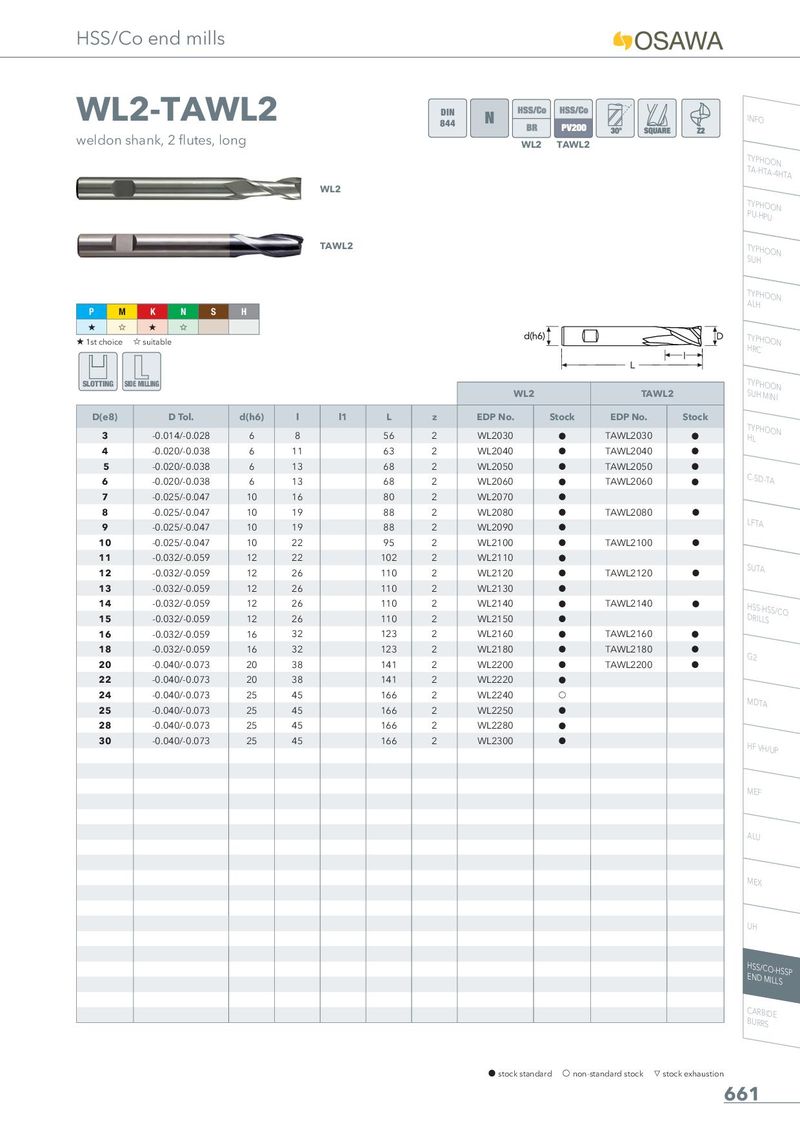

Общий каталог Osawa 2018 - страница 663

HSS/Co end mills WL2-TAWL2 DIN INFO 844 weldon shank, 2 flutes, long WL2 TAWL2 TTYAP-HHTOAO-4NHTA WL2 TPYUP-HHPOUON TAWL2 TSUYPHHOON P M K N S H TAYLPHHOON + , + , + 1st choice , suitable THYRPCHOON SLOTTING SIDE MILLING TSUYPHHMOIONIN WL2 TAWL2 D(e8) D Tol. d(h6) l l1 L z EDP No. Stock EDP No. Stock 3 -0.014/-0.028 6 8 56 2 WL2030 h TAWL2030 h THYLPHOON 4 -0.020/-0.038 6 11 63 2 WL2040 h TAWL2040 h 5 -0.020/-0.038 6 13 68 2 WL2050 h TAWL2050 h 6 -0.020/-0.038 6 13 68 2 WL2060 h TAWL2060 h C-SD-TA 7 -0.025/-0.047 10 16 80 2 WL2070 h 8 -0.025/-0.047 10 19 88 2 WL2080 h TAWL2080 h 9 -0.025/-0.047 10 19 88 2 WL2090 h LFTA 10 -0.025/-0.047 10 22 95 2 WL2100 h TAWL2100 h 11 -0.032/-0.059 12 22 102 2 WL2110 h 12 -0.032/-0.059 12 26 110 2 WL2120 h TAWL2120 h SUTA 13 -0.032/-0.059 12 26 110 2 WL2130 h 14 -0.032/-0.059 12 26 110 2 WL2140 h TAWL2140 h HDSRSIL-LHSSS/CO 15 -0.032/-0.059 12 26 110 2 WL2150 h 16 -0.032/-0.059 16 32 123 2 WL2160 h TAWL2160 h 18 -0.032/-0.059 16 32 123 2 WL2180 h TAWL2180 h G2 20 -0.040/-0.073 20 38 141 2 WL2200 h TAWL2200 h 22 -0.040/-0.073 20 38 141 2 WL2220 h 24 -0.040/-0.073 25 45 166 2 WL2240 f MDTA 25 -0.040/-0.073 25 45 166 2 WL2250 h 28 -0.040/-0.073 25 45 166 2 WL2280 h 30 -0.040/-0.073 25 45 166 2 WL2300 h HF VH/UP MEF ALU MEX UH HENSSD/CMOIL-LHSSSP CBUARRRBSIDE h stock standard f non-standard stock m stock exhaustion 661
