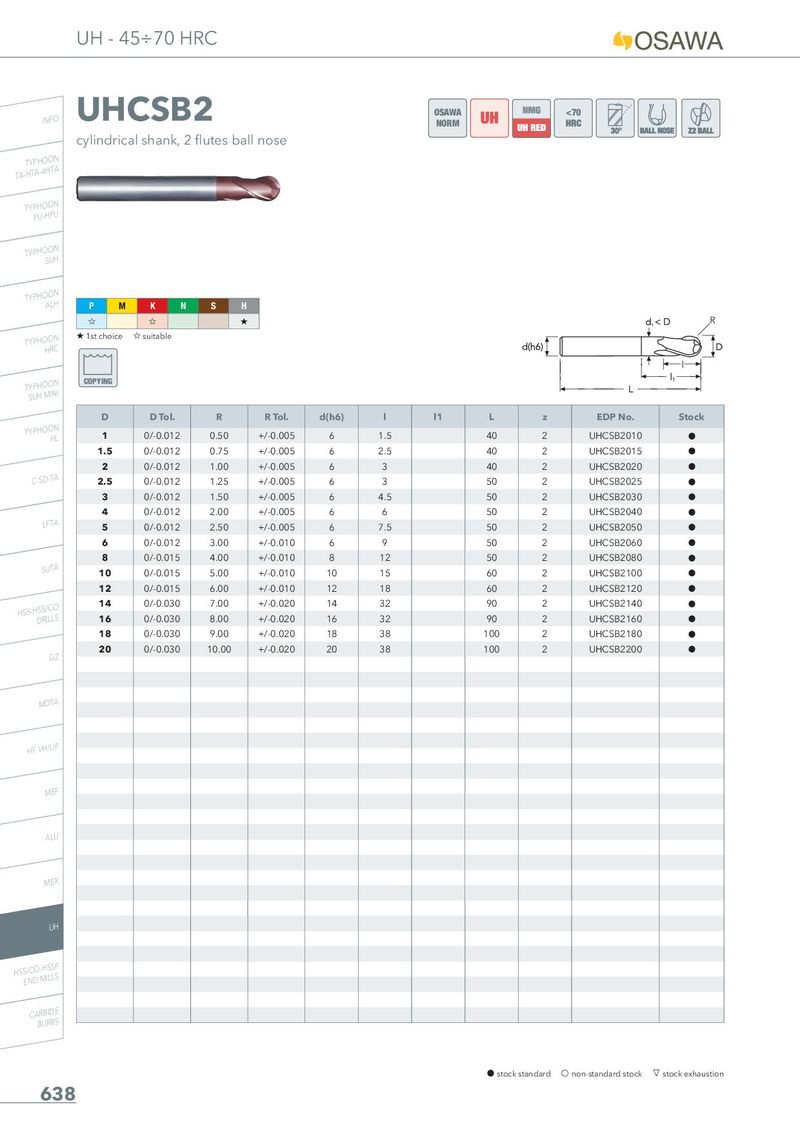

UH - 45÷70 HRC INFO UHCSB2 OSAWA <70 NORM cylindrical shank, 2 flutes ball nose TA-THYTPAH-4OHOTNA TYPPHUO-HOPNU TYPHOSOUNH TYPHOAOLNH P M K N S H , , + R TYPHOHORNC + 1st choice , suitable TSYUPHHOMOINNI COPYING D D Tol. R R Tol. d(h6) l l1 L z EDP No. Stock TYPHOOHNL 1 0/-0.012 0.50 +/-0.005 6 1.5 40 2 UHCSB2010 h 1.5 0/-0.012 0.75 +/-0.005 6 2.5 40 2 UHCSB2015 h 2 0/-0.012 1.00 +/-0.005 6 3 40 2 UHCSB2020 h C-SD-TA 2.5 0/-0.012 1.25 +/-0.005 6 3 50 2 UHCSB2025 h 3 0/-0.012 1.50 +/-0.005 6 4.5 50 2 UHCSB2030 h 4 0/-0.012 2.00 +/-0.005 6 6 50 2 UHCSB2040 h LFTA 5 0/-0.012 2.50 +/-0.005 6 7.5 50 2 UHCSB2050 h 6 0/-0.012 3.00 +/-0.010 6 9 50 2 UHCSB2060 h 8 0/-0.015 4.00 +/-0.010 8 12 50 2 UHCSB2080 h SUTA 10 0/-0.015 5.00 +/-0.010 10 15 60 2 UHCSB2100 h 12 0/-0.015 6.00 +/-0.010 12 18 60 2 UHCSB2120 h HSS-HDSSR/ILCLOS 14 0/-0.030 7.00 +/-0.020 14 32 90 2 UHCSB2140 h 16 0/-0.030 8.00 +/-0.020 16 32 90 2 UHCSB2160 h 18 0/-0.030 9.00 +/-0.020 18 38 100 2 UHCSB2180 h G2 20 0/-0.030 10.00 +/-0.020 20 38 100 2 UHCSB2200 h MDTA HF VH/UP MEF ALU MEX UH HSSE/NCDO-MHISLSLPS CARBIDE BURRS h stock standard f non-standard stock m stock exhaustion 638
