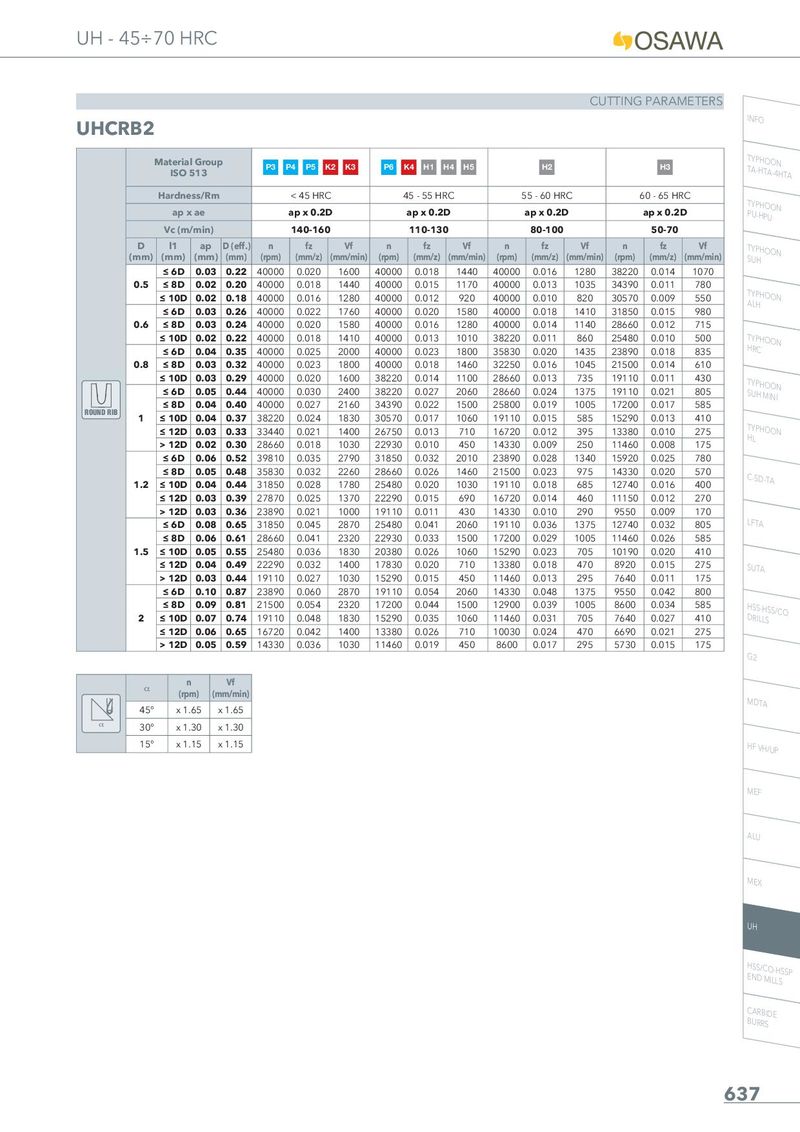

CUTTING PARAMETERS

UHCRB2 INFO

		Material ISO	Grou 513	p	P3 P	4 P5 K	2 K3	P6 K	4 H1	H4 H5		H2			H3
		Hardne	ss/Rm			< 45 HRC		4	5 - 55 HR	C	5	5 - 60 HR	C		60 - 65 HR	C
		ap x	ae			ap x 0.2	D		ap x 0.2	D		ap x 0.2D			ap x 0.2	D
		Vc (m/	min)			140-160			110-13	0		80-100			50-70
	D	l1	ap	D (eff.)	n	fz	Vf	n	fz	Vf	n	fz	Vf	n	fz	Vf
	(mm)	(mm)	(mm)	(mm)	(rpm)	(mm/z)	(mm/min)	(rpm)	(mm/z)	(mm/min)	(rpm)	(mm/z)	(mm/min)	(rpm)	(mm/z)	(mm/min)
		≤ 6D	0.03	0.22	40000	0.020	1600	40000	0.018	1440	40000	0.016	1280	38220	0.014	1070
	0.5	≤ 8D	0.02	0.20	40000	0.018	1440	40000	0.015	1170	40000	0.013	1035	34390	0.011	780
		≤ 10D	0.02	0.18	40000	0.016	1280	40000	0.012	920	40000	0.010	820	30570	0.009	550
		≤ 6D	0.03	0.26	40000	0.022	1760	40000	0.020	1580	40000	0.018	1410	31850	0.015	980
	0.6	≤ 8D	0.03	0.24	40000	0.020	1580	40000	0.016	1280	40000	0.014	1140	28660	0.012	715
		≤ 10D	0.02	0.22	40000	0.018	1410	40000	0.013	1010	38220	0.011	860	25480	0.010	500
		≤ 6D	0.04	0.35	40000	0.025	2000	40000	0.023	1800	35830	0.020	1435	23890	0.018	835
	0.8	≤ 8D	0.03	0.32	40000	0.023	1800	40000	0.018	1460	32250	0.016	1045	21500	0.014	610
		≤ 10D	0.03	0.29	40000	0.020	1600	38220	0.014	1100	28660	0.013	735	19110	0.011	430
		≤ 6D	0.05	0.44	40000	0.030	2400	38220	0.027	2060	28660	0.024	1375	19110	0.021	805
		≤ 8D	0.04	0.40	40000	0.027	2160	34390	0.022	1500	25800	0.019	1005	17200	0.017	585
ROUND RIB	1	≤ 10D	0.04	0.37	38220	0.024	1830	30570	0.017	1060	19110	0.015	585	15290	0.013	410
		≤ 12D	0.03	0.33	33440	0.021	1400	26750	0.013	710	16720	0.012	395	13380	0.010	275
		> 12D	0.02	0.30	28660	0.018	1030	22930	0.010	450	14330	0.009	250	11460	0.008	175
		≤ 6D	0.06	0.52	39810	0.035	2790	31850	0.032	2010	23890	0.028	1340	15920	0.025	780
		≤ 8D	0.05	0.48	35830	0.032	2260	28660	0.026	1460	21500	0.023	975	14330	0.020	570
	1.2	≤ 10D	0.04	0.44	31850	0.028	1780	25480	0.020	1030	19110	0.018	685	12740	0.016	400
		≤ 12D	0.03	0.39	27870	0.025	1370	22290	0.015	690	16720	0.014	460	11150	0.012	270
		> 12D	0.03	0.36	23890	0.021	1000	19110	0.011	430	14330	0.010	290	9550	0.009	170
		≤ 6D	0.08	0.65	31850	0.045	2870	25480	0.041	2060	19110	0.036	1375	12740	0.032	805
		≤ 8D	0.06	0.61	28660	0.041	2320	22930	0.033	1500	17200	0.029	1005	11460	0.026	585
	1.5	≤ 10D	0.05	0.55	25480	0.036	1830	20380	0.026	1060	15290	0.023	705	10190	0.020	410
		≤ 12D	0.04	0.49	22290	0.032	1400	17830	0.020	710	13380	0.018	470	8920	0.015	275
		> 12D	0.03	0.44	19110	0.027	1030	15290	0.015	450	11460	0.013	295	7640	0.011	175
		≤ 6D	0.10	0.87	23890	0.060	2870	19110	0.054	2060	14330	0.048	1375	9550	0.042	800
		≤ 8D	0.09	0.81	21500	0.054	2320	17200	0.044	1500	12900	0.039	1005	8600	0.034	585
	2	≤ 10D	0.07	0.74	19110	0.048	1830	15290	0.035	1060	11460	0.031	705	7640	0.027	410
		≤ 12D	0.06	0.65	16720	0.042	1400	13380	0.026	710	10030	0.024	470	6690	0.021	275
		> 12D	0.05	0.59	14330	0.036	1030	11460	0.019	450	8600	0.017	295	5730	0.015	175

TYPHOON

TYPHOON ALH

TYPHOON

TYPHOON HL

C-SD-TA

G2

	�	n (rpm)	V (mm/	f min)
	45°	x 1.65	x 1	.65
�	30°	x 1.30	x 1	.30
	15°	x 1.15	x 1	.15

MDTA

MEF

ALU

MEX

UH
