UH - < 70 HRC - Corner radius

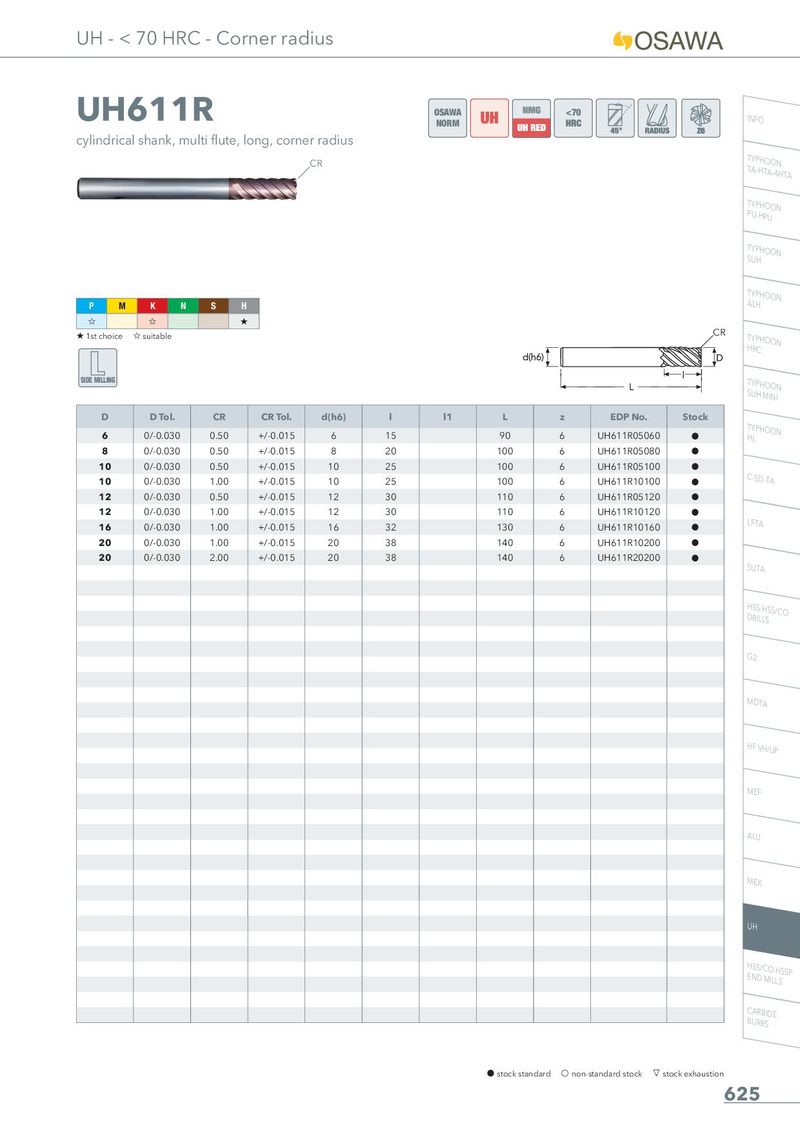

UH611R
cylindrical shank, multi flute, long, corner radius
CR
OSAWA NORM
<70
INFO
TYPHOON TA-HTA-4HTA
TYPHOON PU-HPU
TYPHOON SUH
TYPHOON
| P M | K N | S H | |||||||
| � | � | � | |||||||
| �1st choice | �suitable | CR | |||||||
| SIDE MILLING | |||||||||
| D | D Tol. | CR | CR Tol. | d(h6) | l l1 | L | z | EDP No. | Stock |
| 6 | 0/-0.030 | 0.50 | +/-0.015 | 6 | 15 | 90 | 6 | UH611R05060 | h |
| 8 | 0/-0.030 | 0.50 | +/-0.015 | 8 | 20 | 100 | 6 | UH611R05080 | h |
| 10 | 0/-0.030 | 0.50 | +/-0.015 | 10 | 25 | 100 | 6 | UH611R05100 | h |
| 10 | 0/-0.030 | 1.00 | +/-0.015 | 10 | 25 | 100 | 6 | UH611R10100 | h |
| 12 | 0/-0.030 | 0.50 | +/-0.015 | 12 | 30 | 110 | 6 | UH611R05120 | h |
| 12 | 0/-0.030 | 1.00 | +/-0.015 | 12 | 30 | 110 | 6 | UH611R10120 | h |
| 16 | 0/-0.030 | 1.00 | +/-0.015 | 16 | 32 | 130 | 6 | UH611R10160 | h |
| 20 | 0/-0.030 | 1.00 | +/-0.015 | 20 | 38 | 140 | 6 | UH611R10200 | h |
| 20 | 0/-0.030 | 2.00 | +/-0.015 | 20 | 38 | 140 | 6 | UH611R20200 | h |
