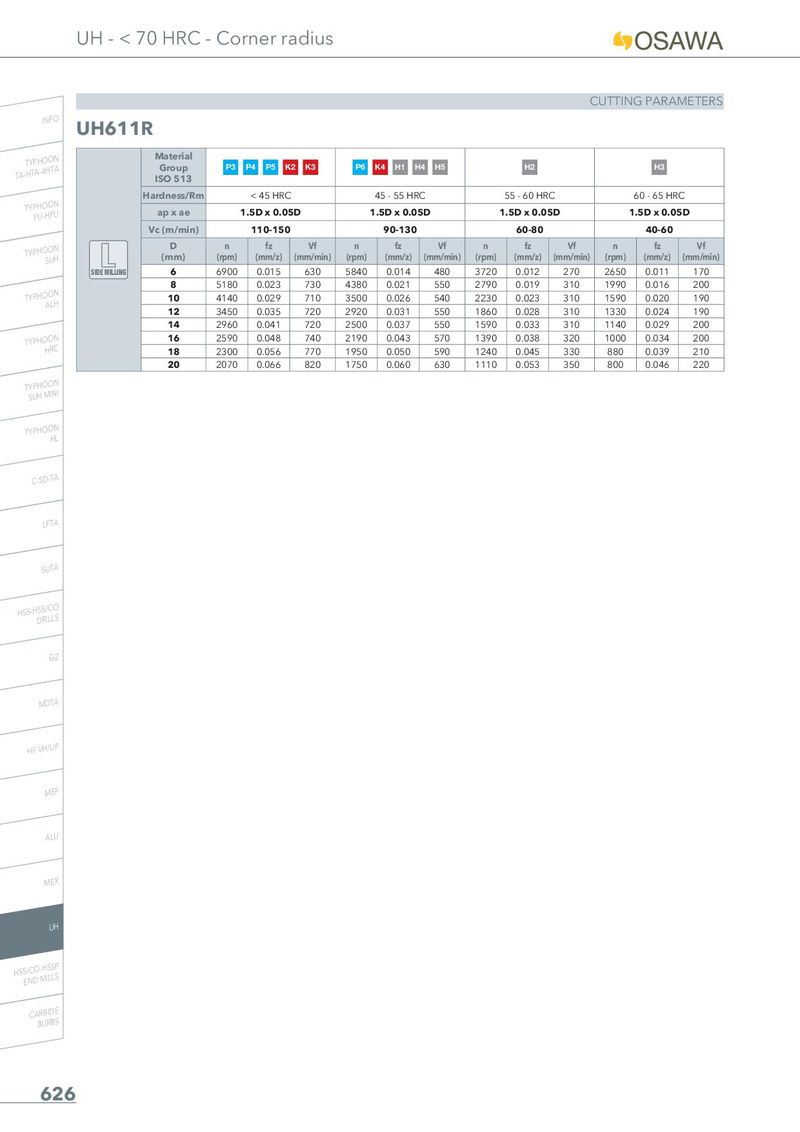

UH - < 70 HRC - Corner radius

CUTTING PARAMETERS

INFO UH611R

M IS	aterial Group O 513	P3	P4 P5 K2	K3	P6	K4 H1 H	4 H5		H2			H3
Har	dness/Rm		< 45 HRC			45 - 55 HR	C		55 - 60 HR	C		60 - 65 HR	C
a	pxae	1	.5D x 0.05	D	1	.5D x 0.05	D	1	.5D x 0.05	D	1	.5D x 0.0	5D
Vc	(m/min)		110-150			90-130			60-80			40-60
	D (mm)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)
SIDE MILLING	6	6900	0.015	630	5840	0.014	480	3720	0.012	270	2650	0.011	170
	8	5180	0.023	730	4380	0.021	550	2790	0.019	310	1990	0.016	200
	10	4140	0.029	710	3500	0.026	540	2230	0.023	310	1590	0.020	190
	12	3450	0.035	720	2920	0.031	550	1860	0.028	310	1330	0.024	190
	14	2960	0.041	720	2500	0.037	550	1590	0.033	310	1140	0.029	200
	16	2590	0.048	740	2190	0.043	570	1390	0.038	320	1000	0.034	200
	18	2300	0.056	770	1950	0.050	590	1240	0.045	330	880	0.039	210
	20	2070	0.066	820	1750	0.060	630	1110	0.053	350	800	0.046	220
