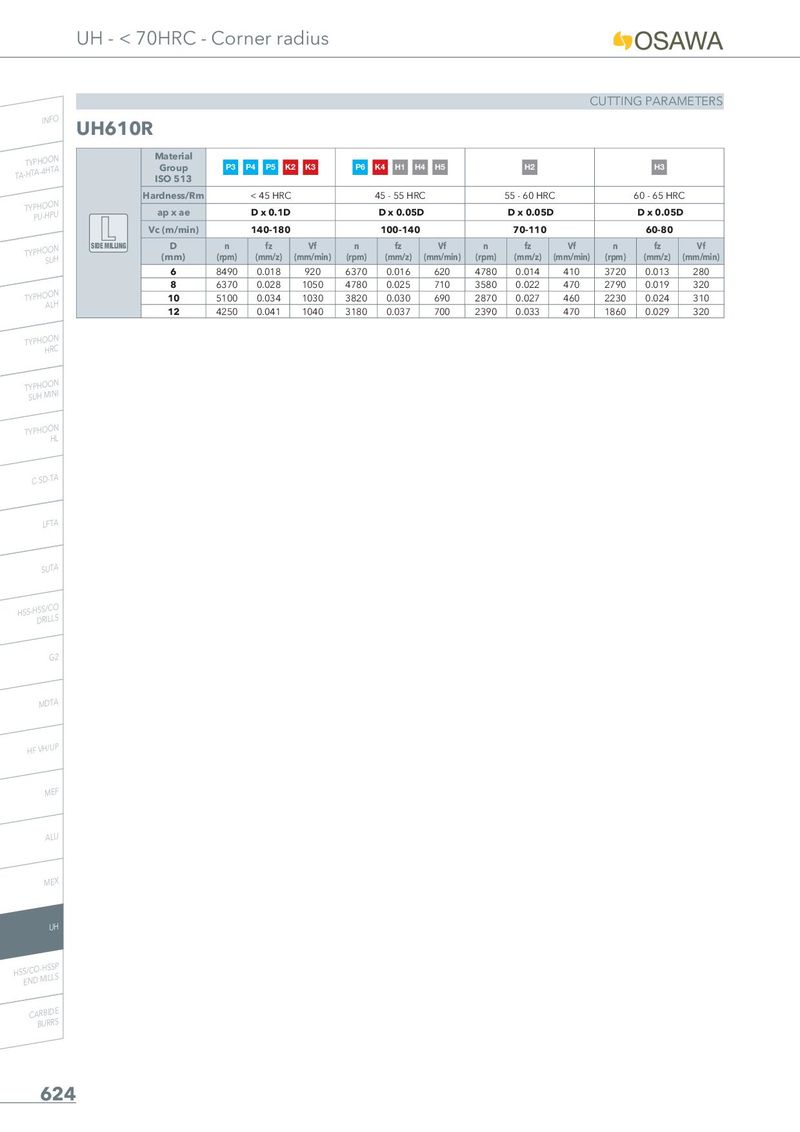

UH - < 70HRC - Corner radius CUTTING PARAMETERS INFO UH610R TA-THYTPAH-4OHOTNA Material Group P3 P4 P5 K2 K3 P6 K4 H1 H4 H5 H2 H3 ISO 513 Hardness/Rm < 45 HRC 45 - 55 HRC 55 - 60 HRC 60 - 65 HRC TYPPHUO-HOPNU ap x ae D x 0.1D D x 0.05D D x 0.05D D x 0.05D Vc (m/min) 140-180 100-140 70-110 60-80 TYPHOSOUNH SIDE MILLING D n fz Vf n fz Vf n fz Vf n fz Vf (mm) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) 6 8490 0.018 920 6370 0.016 620 4780 0.014 410 3720 0.013 280 8 6370 0.028 1050 4780 0.025 710 3580 0.022 470 2790 0.019 320 TYPHOAOLNH 10 5100 0.034 1030 3820 0.030 690 2870 0.027 460 2230 0.024 310 12 4250 0.041 1040 3180 0.037 700 2390 0.033 470 1860 0.029 320 TYPHOHORNC TSYUPHHOMOINNI TYPHOOHNL C-SD-TA LFTA SUTA HSS-HDSSR/ILCLOS G2 MDTA HF VH/UP MEF ALU MEX UH HSSE/NCDO-MHISLSLPS CARBIDE BURRS 624
