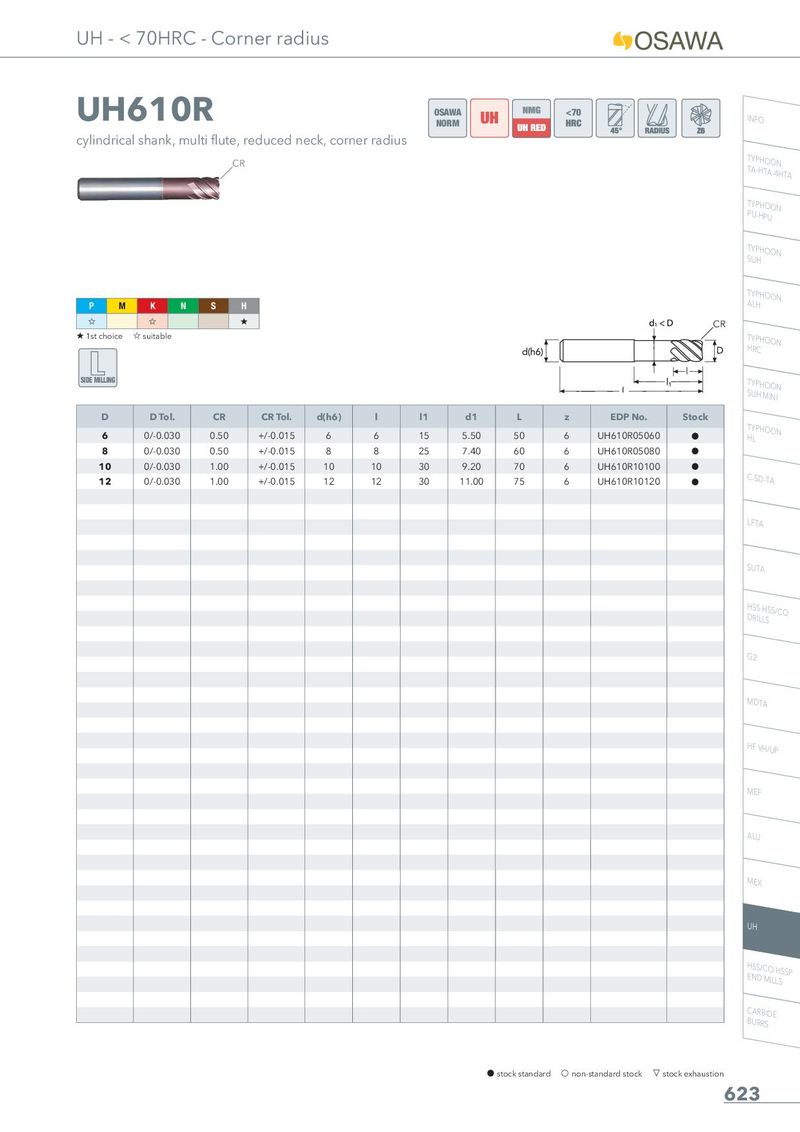

UH - < 70HRC - Corner radius UH610R OSAWA <70 INFO NORM cylindrical shank, multi flute, reduced neck, corner radius CR TTYAP-HHTOAO-4NHTA TPYUP-HHPOUON TSUYPHHOON P M K N S H TAYLPHHOON , , + CR + 1st choice , suitable THYRPCHOON SIDE MILLING TSUYPHHMOIONIN D D Tol. CR CR Tol. d(h6) l l1 d1 L z EDP No. Stock 6 0/-0.030 0.50 +/-0.015 6 6 15 5.50 50 6 UH610R05060 h THYLPHOON 8 0/-0.030 0.50 +/-0.015 8 8 25 7.40 60 6 UH610R05080 h 10 0/-0.030 1.00 +/-0.015 10 10 30 9.20 70 6 UH610R10100 h 12 0/-0.030 1.00 +/-0.015 12 12 30 11.00 75 6 UH610R10120 h C-SD-TA LFTA SUTA HDSRSIL-LHSSS/CO G2 MDTA HF VH/UP MEF ALU MEX UH HENSSD/CMOIL-LHSSSP CBUARRRBSIDE h stock standard f non-standard stock m stock exhaustion 623
