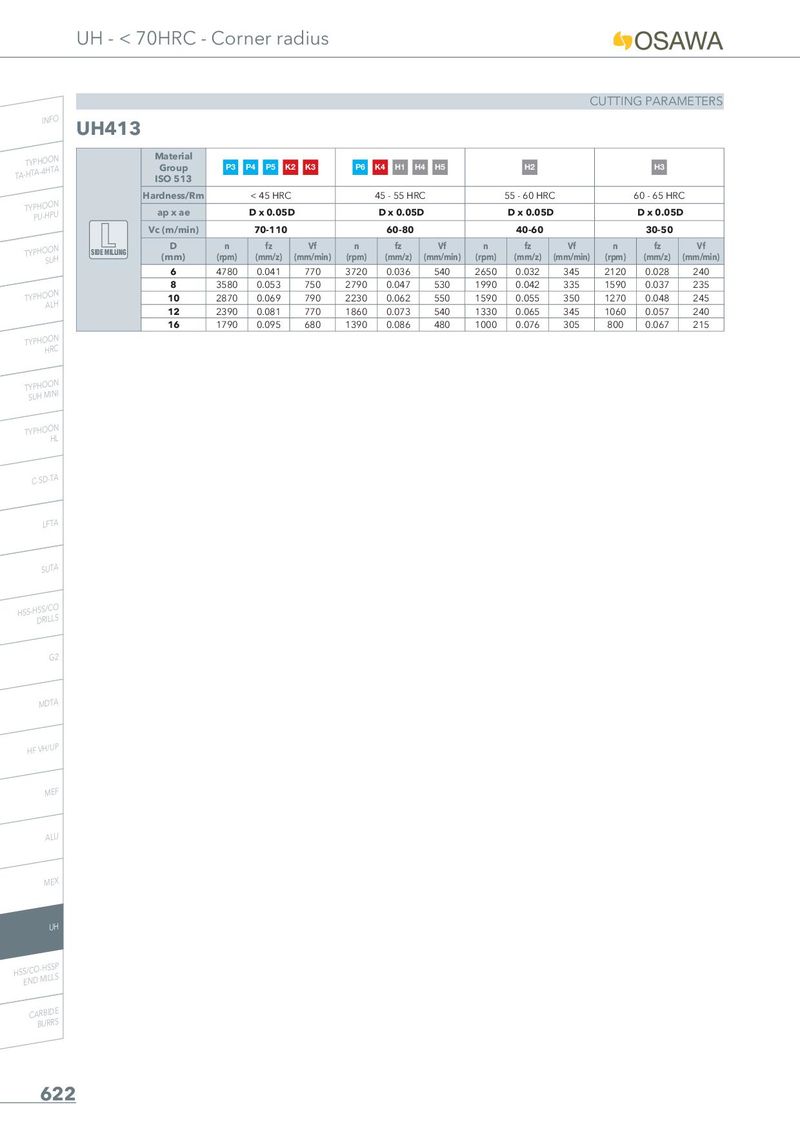

CUTTING PARAMETERS

INFO UH413

	Material Group ISO 513	P3	P4 P5 K2	K3	P6	K4 H1 H4	H5		H2			H3
	Hardness/Rm		< 45 HRC			45 - 55 HRC			55 - 60 HRC			60 - 65 HR	C
	ap x ae		D x 0.05D			D x 0.05D			D x 0.05D			D x 0.05D
	Vc (m/min)		70-110			60-80			40-60			30-50
SIDE MILLING	D (mm)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z) (	Vf mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)
	6	4780	0.041	770	3720	0.036	540	2650	0.032	345	2120	0.028	240
	8	3580	0.053	750	2790	0.047	530	1990	0.042	335	1590	0.037	235
	10	2870	0.069	790	2230	0.062	550	1590	0.055	350	1270	0.048	245
	12	2390	0.081	770	1860	0.073	540	1330	0.065	345	1060	0.057	240
	16	1790	0.095	680	1390	0.086	480	1000	0.076	305	800	0.067	215
