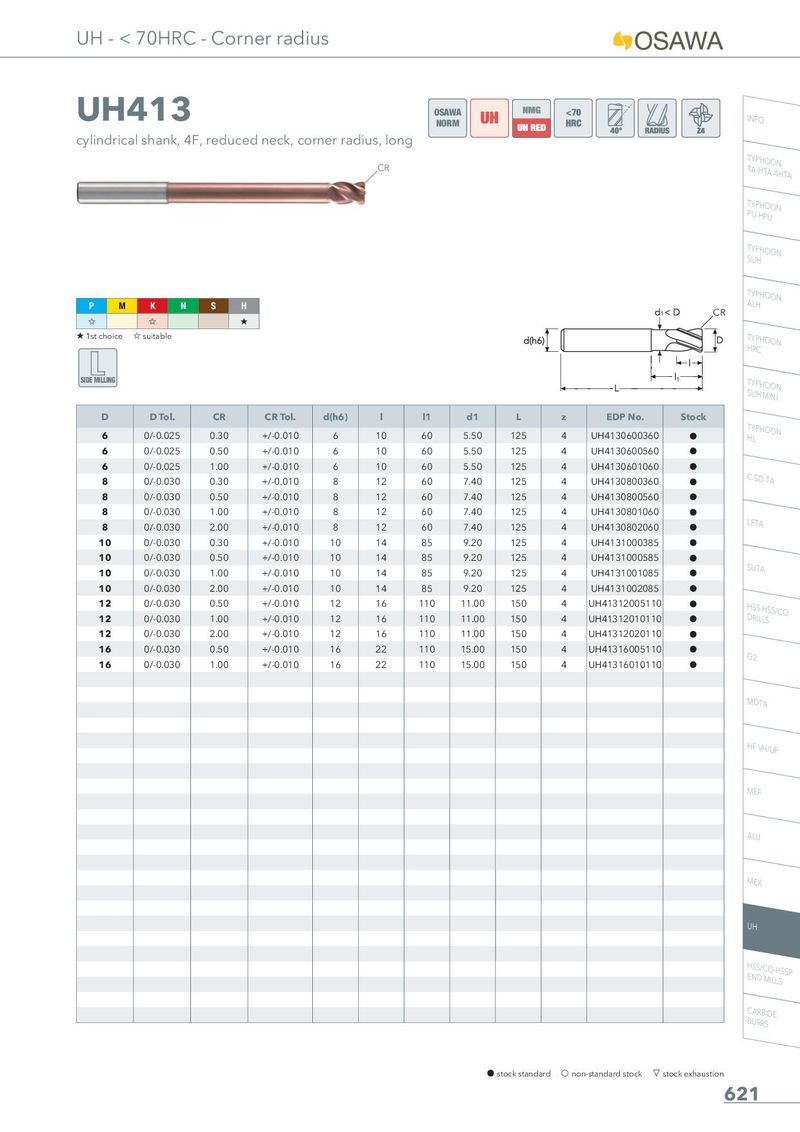

UH - < 70HRC - Corner radius UH413 OSAWA <70 INFO NORM cylindrical shank, 4F, reduced neck, corner radius, long CR TTYAP-HHTOAO-4NHTA TPYUP-HHPOUON TSUYPHHOON P M K N S H TAYLPHHOON , , + CR + 1st choice , suitable THYRPCHOON SIDE MILLING TSUYPHHMOIONIN D D Tol. CR CR Tol. d(h6) l l1 d1 L z EDP No. Stock 6 0/-0.025 0.30 +/-0.010 6 10 60 5.50 125 4 UH4130600360 h THYLPHOON 6 0/-0.025 0.50 +/-0.010 6 10 60 5.50 125 4 UH4130600560 h 6 0/-0.025 1.00 +/-0.010 6 10 60 5.50 125 4 UH4130601060 h 8 0/-0.030 0.30 +/-0.010 8 12 60 7.40 125 4 UH4130800360 h C-SD-TA 8 0/-0.030 0.50 +/-0.010 8 12 60 7.40 125 4 UH4130800560 h 8 0/-0.030 1.00 +/-0.010 8 12 60 7.40 125 4 UH4130801060 h 8 0/-0.030 2.00 +/-0.010 8 12 60 7.40 125 4 UH4130802060 h LFTA 10 0/-0.030 0.30 +/-0.010 10 14 85 9.20 125 4 UH4131000385 h 10 0/-0.030 0.50 +/-0.010 10 14 85 9.20 125 4 UH4131000585 h 10 0/-0.030 1.00 +/-0.010 10 14 85 9.20 125 4 UH4131001085 h SUTA 10 0/-0.030 2.00 +/-0.010 10 14 85 9.20 125 4 UH4131002085 h 12 0/-0.030 0.50 +/-0.010 12 16 110 11.00 150 4 UH41312005110 h HDSRSIL-LHSSS/CO 12 0/-0.030 1.00 +/-0.010 12 16 110 11.00 150 4 UH41312010110 h 12 0/-0.030 2.00 +/-0.010 12 16 110 11.00 150 4 UH41312020110 h 16 0/-0.030 0.50 +/-0.010 16 22 110 15.00 150 4 UH41316005110 h G2 16 0/-0.030 1.00 +/-0.010 16 22 110 15.00 150 4 UH41316010110 h MDTA HF VH/UP MEF ALU MEX UH HENSSD/CMOIL-LHSSSP CBUARRRBSIDE h stock standard f non-standard stock m stock exhaustion 621
