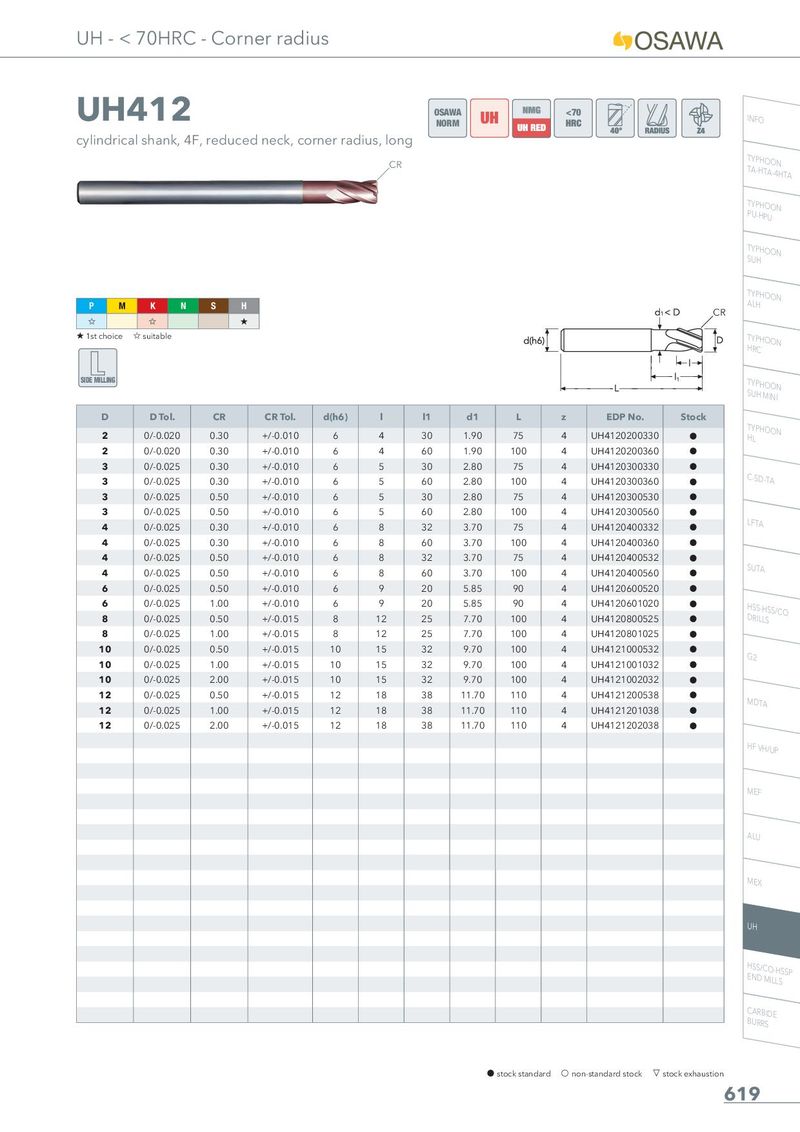

UH - < 70HRC - Corner radius UH412 OSAWA <70 INFO NORM cylindrical shank, 4F, reduced neck, corner radius, long CR TTYAP-HHTOAO-4NHTA TPYUP-HHPOUON TSUYPHHOON P M K N S H TAYLPHHOON , , + CR + 1st choice , suitable THYRPCHOON SIDE MILLING TSUYPHHMOIONIN D D Tol. CR CR Tol. d(h6) l l1 d1 L z EDP No. Stock 2 0/-0.020 0.30 +/-0.010 6 4 30 1.90 75 4 UH4120200330 h THYLPHOON 2 0/-0.020 0.30 +/-0.010 6 4 60 1.90 100 4 UH4120200360 h 3 0/-0.025 0.30 +/-0.010 6 5 30 2.80 75 4 UH4120300330 h 3 0/-0.025 0.30 +/-0.010 6 5 60 2.80 100 4 UH4120300360 h C-SD-TA 3 0/-0.025 0.50 +/-0.010 6 5 30 2.80 75 4 UH4120300530 h 3 0/-0.025 0.50 +/-0.010 6 5 60 2.80 100 4 UH4120300560 h 4 0/-0.025 0.30 +/-0.010 6 8 32 3.70 75 4 UH4120400332 h LFTA 4 0/-0.025 0.30 +/-0.010 6 8 60 3.70 100 4 UH4120400360 h 4 0/-0.025 0.50 +/-0.010 6 8 32 3.70 75 4 UH4120400532 h 4 0/-0.025 0.50 +/-0.010 6 8 60 3.70 100 4 UH4120400560 h SUTA 6 0/-0.025 0.50 +/-0.010 6 9 20 5.85 90 4 UH4120600520 h 6 0/-0.025 1.00 +/-0.010 6 9 20 5.85 90 4 UH4120601020 h HDSRSIL-LHSSS/CO 8 0/-0.025 0.50 +/-0.015 8 12 25 7.70 100 4 UH4120800525 h 8 0/-0.025 1.00 +/-0.015 8 12 25 7.70 100 4 UH4120801025 h 10 0/-0.025 0.50 +/-0.015 10 15 32 9.70 100 4 UH4121000532 h G2 10 0/-0.025 1.00 +/-0.015 10 15 32 9.70 100 4 UH4121001032 h 10 0/-0.025 2.00 +/-0.015 10 15 32 9.70 100 4 UH4121002032 h 12 0/-0.025 0.50 +/-0.015 12 18 38 11.70 110 4 UH4121200538 h MDTA 12 0/-0.025 1.00 +/-0.015 12 18 38 11.70 110 4 UH4121201038 h 12 0/-0.025 2.00 +/-0.015 12 18 38 11.70 110 4 UH4121202038 h HF VH/UP MEF ALU MEX UH HENSSD/CMOIL-LHSSSP CBUARRRBSIDE h stock standard f non-standard stock m stock exhaustion 619
