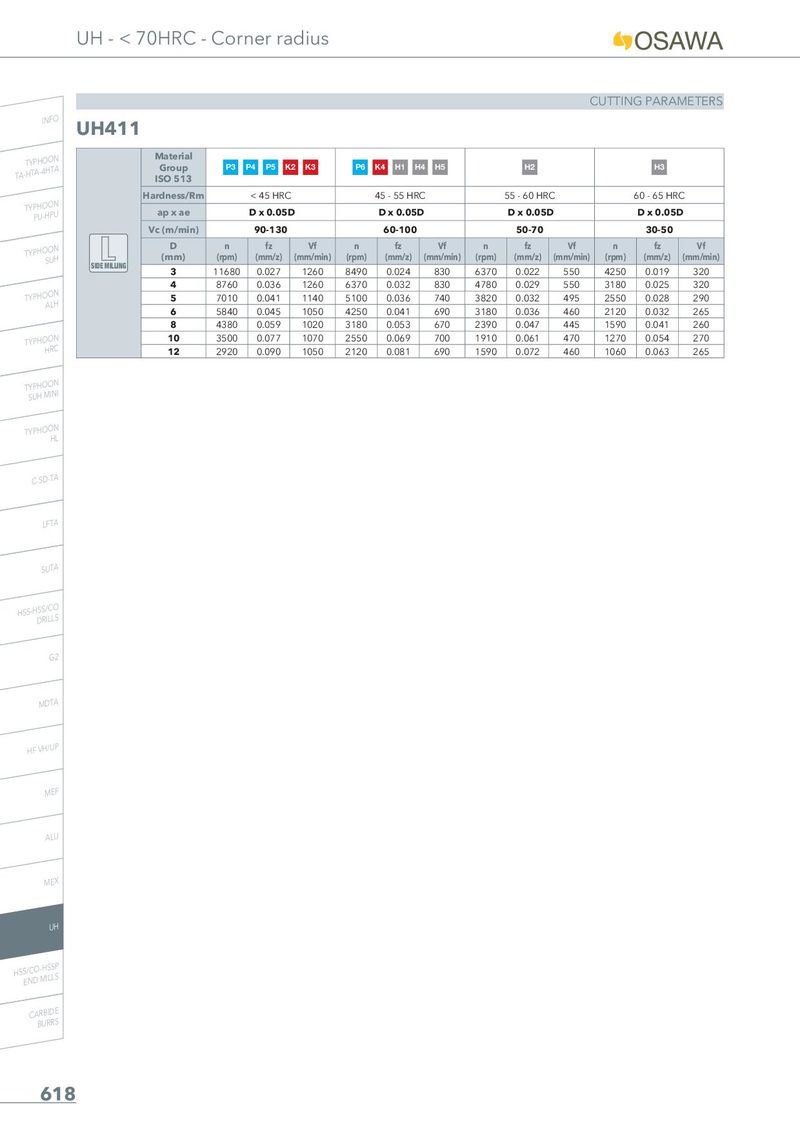

UH - < 70HRC - Corner radius CUTTING PARAMETERS INFO UH411 TA-THYTPAH-4OHOTNA Material Group P3 P4 P5 K2 K3 P6 K4 H1 H4 H5 H2 H3 ISO 513 Hardness/Rm < 45 HRC 45 - 55 HRC 55 - 60 HRC 60 - 65 HRC TYPPHUO-HOPNU ap x ae D x 0.05D D x 0.05D D x 0.05D D x 0.05D Vc (m/min) 90-130 60-100 50-70 30-50 TYPHOSOUNH D n fz Vf n fz Vf n fz Vf n fz Vf (mm) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) SIDE MILLING 3 11680 0.027 1260 8490 0.024 830 6370 0.022 550 4250 0.019 320 4 8760 0.036 1260 6370 0.032 830 4780 0.029 550 3180 0.025 320 TYPHOAOLNH 5 7010 0.041 1140 5100 0.036 740 3820 0.032 495 2550 0.028 290 6 5840 0.045 1050 4250 0.041 690 3180 0.036 460 2120 0.032 265 8 4380 0.059 1020 3180 0.053 670 2390 0.047 445 1590 0.041 260 TYPHOHORNC 10 3500 0.077 1070 2550 0.069 700 1910 0.061 470 1270 0.054 270 12 2920 0.090 1050 2120 0.081 690 1590 0.072 460 1060 0.063 265 TSYUPHHOMOINNI TYPHOOHNL C-SD-TA LFTA SUTA HSS-HDSSR/ILCLOS G2 MDTA HF VH/UP MEF ALU MEX UH HSSE/NCDO-MHISLSLPS CARBIDE BURRS 618
