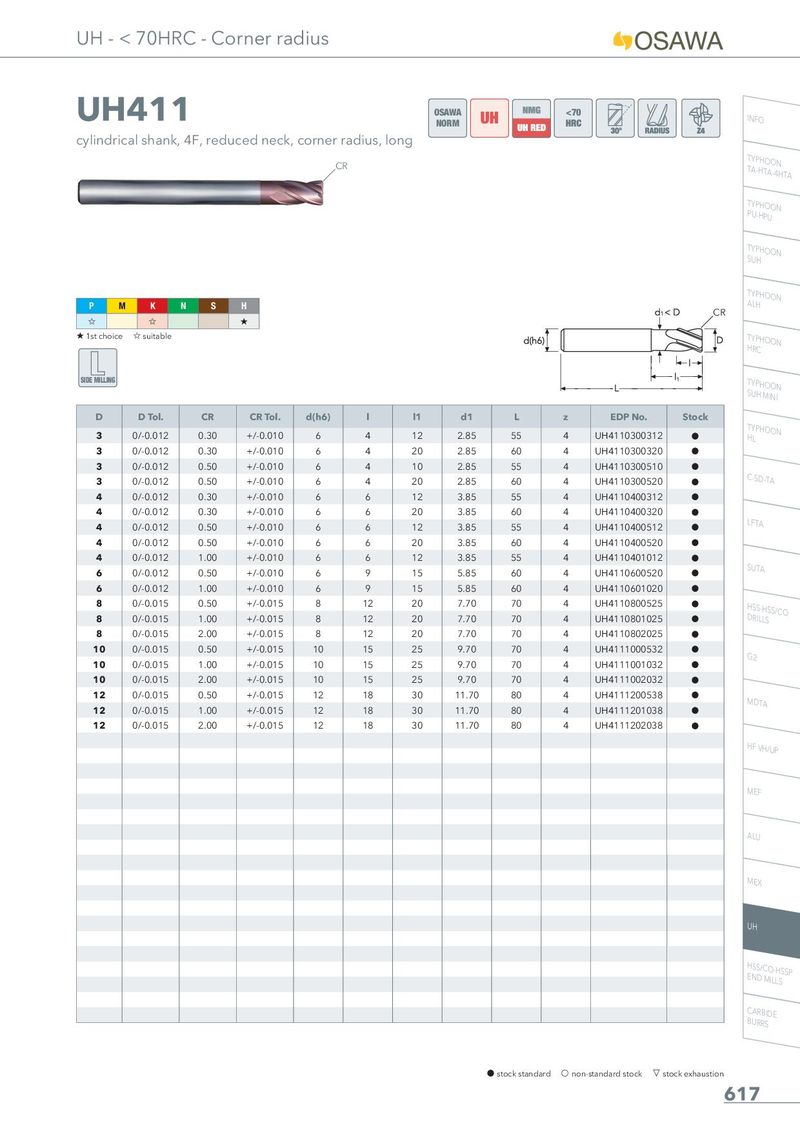

UH - < 70HRC - Corner radius UH411 OSAWA <70 INFO NORM cylindrical shank, 4F, reduced neck, corner radius, long CR TTYAP-HHTOAO-4NHTA TPYUP-HHPOUON TSUYPHHOON P M K N S H TAYLPHHOON , , + CR + 1st choice , suitable THYRPCHOON SIDE MILLING TSUYPHHMOIONIN D D Tol. CR CR Tol. d(h6) l l1 d1 L z EDP No. Stock 3 0/-0.012 0.30 +/-0.010 6 4 12 2.85 55 4 UH4110300312 h THYLPHOON 3 0/-0.012 0.30 +/-0.010 6 4 20 2.85 60 4 UH4110300320 h 3 0/-0.012 0.50 +/-0.010 6 4 10 2.85 55 4 UH4110300510 h 3 0/-0.012 0.50 +/-0.010 6 4 20 2.85 60 4 UH4110300520 h C-SD-TA 4 0/-0.012 0.30 +/-0.010 6 6 12 3.85 55 4 UH4110400312 h 4 0/-0.012 0.30 +/-0.010 6 6 20 3.85 60 4 UH4110400320 h 4 0/-0.012 0.50 +/-0.010 6 6 12 3.85 55 4 UH4110400512 h LFTA 4 0/-0.012 0.50 +/-0.010 6 6 20 3.85 60 4 UH4110400520 h 4 0/-0.012 1.00 +/-0.010 6 6 12 3.85 55 4 UH4110401012 h 6 0/-0.012 0.50 +/-0.010 6 9 15 5.85 60 4 UH4110600520 h SUTA 6 0/-0.012 1.00 +/-0.010 6 9 15 5.85 60 4 UH4110601020 h 8 0/-0.015 0.50 +/-0.015 8 12 20 7.70 70 4 UH4110800525 h HDSRSIL-LHSSS/CO 8 0/-0.015 1.00 +/-0.015 8 12 20 7.70 70 4 UH4110801025 h 8 0/-0.015 2.00 +/-0.015 8 12 20 7.70 70 4 UH4110802025 h 10 0/-0.015 0.50 +/-0.015 10 15 25 9.70 70 4 UH4111000532 h G2 10 0/-0.015 1.00 +/-0.015 10 15 25 9.70 70 4 UH4111001032 h 10 0/-0.015 2.00 +/-0.015 10 15 25 9.70 70 4 UH4111002032 h 12 0/-0.015 0.50 +/-0.015 12 18 30 11.70 80 4 UH4111200538 h MDTA 12 0/-0.015 1.00 +/-0.015 12 18 30 11.70 80 4 UH4111201038 h 12 0/-0.015 2.00 +/-0.015 12 18 30 11.70 80 4 UH4111202038 h HF VH/UP MEF ALU MEX UH HENSSD/CMOIL-LHSSSP CBUARRRBSIDE h stock standard f non-standard stock m stock exhaustion 617
