TYPHOON TA-HTA-4HTA

TYPHOON PU-HPU

TYPHOON SUH

UH410

OSAWA <70 NORM

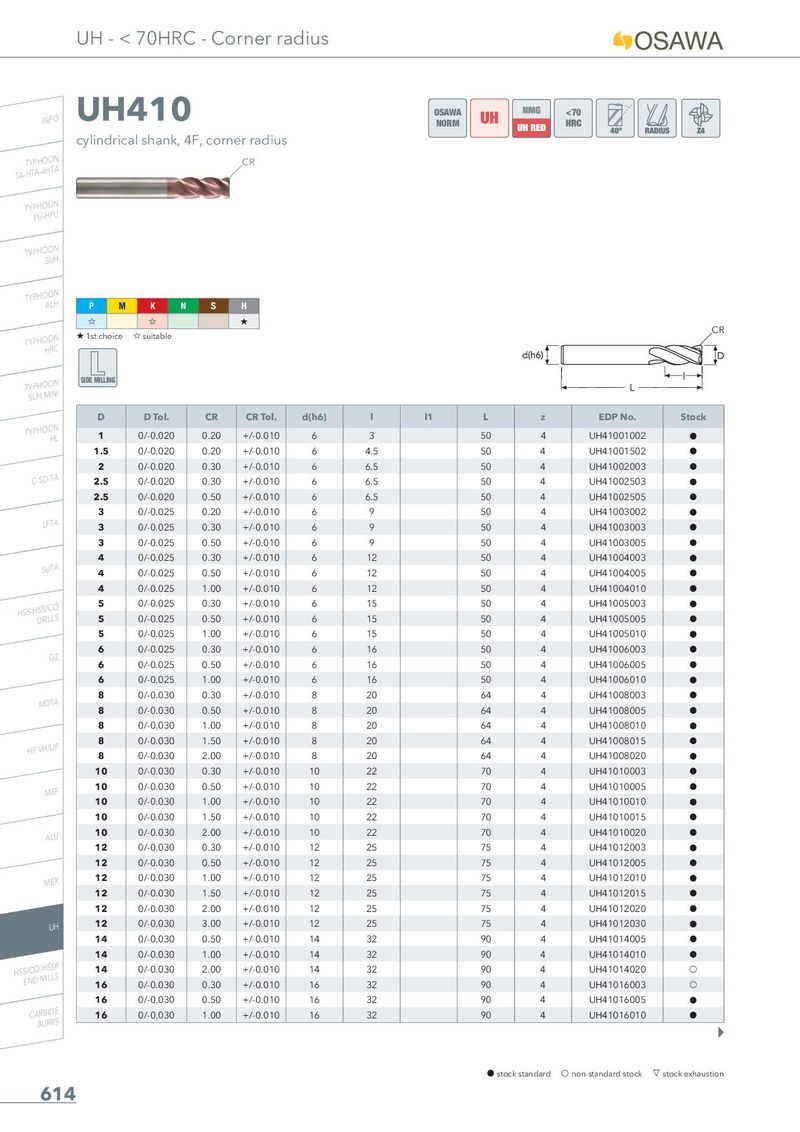

cylindrical shank, 4F, corner radius

CR

P M K	N	S	H
� �			�
�1st choice�suitable SIDE MILLING

ALH CR TYPHOON HRC

TYPHOON SUH MINI

D	D Tol.	CR	CR Tol.	d(h6)	l l	1 L	z	EDP No.	Stock
1	0/-0.020	0.20	+/-0.010	6	3	50	4	UH41001002	h
1.5	0/-0.020	0.20	+/-0.010	6	4.5	50	4	UH41001502	h
2	0/-0.020	0.30	+/-0.010	6	6.5	50	4	UH41002003	h
2.5	0/-0.020	0.30	+/-0.010	6	6.5	50	4	UH41002503	h
2.5	0/-0.020	0.50	+/-0.010	6	6.5	50	4	UH41002505	h
3	0/-0.025	0.20	+/-0.010	6	9	50	4	UH41003002	h
3	0/-0.025	0.30	+/-0.010	6	9	50	4	UH41003003	h
3	0/-0.025	0.50	+/-0.010	6	9	50	4	UH41003005	h
4	0/-0.025	0.30	+/-0.010	6	12	50	4	UH41004003	h
4	0/-0.025	0.50	+/-0.010	6	12	50	4	UH41004005	h
4	0/-0.025	1.00	+/-0.010	6	12	50	4	UH41004010	h
5	0/-0.025	0.30	+/-0.010	6	15	50	4	UH41005003	h
5	0/-0.025	0.50	+/-0.010	6	15	50	4	UH41005005	h
5	0/-0.025	1.00	+/-0.010	6	15	50	4	UH41005010	h
6	0/-0.025	0.30	+/-0.010	6	16	50	4	UH41006003	h
6	0/-0.025	0.50	+/-0.010	6	16	50	4	UH41006005	h
6	0/-0.025	1.00	+/-0.010	6	16	50	4	UH41006010	h
8	0/-0.030	0.30	+/-0.010	8	20	64	4	UH41008003	h
8	0/-0.030	0.50	+/-0.010	8	20	64	4	UH41008005	h
8	0/-0.030	1.00	+/-0.010	8	20	64	4	UH41008010	h
8	0/-0.030	1.50	+/-0.010	8	20	64	4	UH41008015	h
8	0/-0.030	2.00	+/-0.010	8	20	64	4	UH41008020	h
10	0/-0.030	0.30	+/-0.010	10	22	70	4	UH41010003	h
10	0/-0.030	0.50	+/-0.010	10	22	70	4	UH41010005	h
10	0/-0.030	1.00	+/-0.010	10	22	70	4	UH41010010	h
10	0/-0.030	1.50	+/-0.010	10	22	70	4	UH41010015	h
10	0/-0.030	2.00	+/-0.010	10	22	70	4	UH41010020	h
12	0/-0.030	0.30	+/-0.010	12	25	75	4	UH41012003	h
12	0/-0.030	0.50	+/-0.010	12	25	75	4	UH41012005	h
12	0/-0.030	1.00	+/-0.010	12	25	75	4	UH41012010	h
12	0/-0.030	1.50	+/-0.010	12	25	75	4	UH41012015	h
12	0/-0.030	2.00	+/-0.010	12	25	75	4	UH41012020	h
12	0/-0.030	3.00	+/-0.010	12	25	75	4	UH41012030	h
14	0/-0.030	0.50	+/-0.010	14	32	90	4	UH41014005	h
14	0/-0.030	1.00	+/-0.010	14	32	90	4	UH41014010	h
14	0/-0.030	2.00	+/-0.010	14	32	90	4	UH41014020	f
16	0/-0.030	0.30	+/-0.010	16	32	90	4	UH41016003	f
16	0/-0.030	0.50	+/-0.010	16	32	90	4	UH41016005	h
16	0/-0.030	1.00	+/-0.010	16	32	90	4	UH41016010	h
