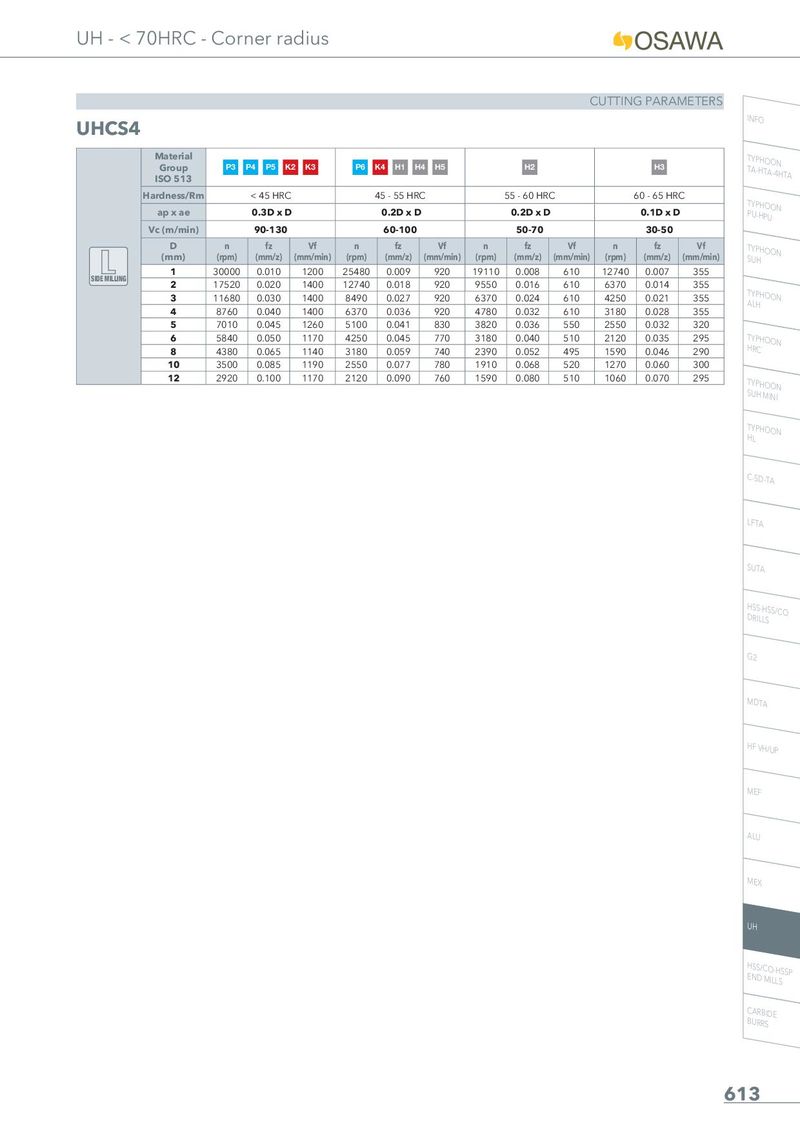

CUTTING PARAMETERS

UHCS4 INFO

M I	aterial Group SO 513	P3	P4 P5 K	2 K3	P6	K4 H1 H4	H5		H2			H3
Har	dness/Rm		< 45 HRC			45 - 55 HRC			55 - 60 HRC			60 - 65 HR	C
a	pxae		0.3D x D			0.2D x D			0.2D x D			0.1D x D
Vc	(m/min)		90-130			60-100			50-70			30-50
	D (mm)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z) (	Vf mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)
	1	30000	0.010	1200	25480	0.009	920	19110	0.008	610	12740	0.007	355
SIDE MILLING	2	17520	0.020	1400	12740	0.018	920	9550	0.016	610	6370	0.014	355
	3	11680	0.030	1400	8490	0.027	920	6370	0.024	610	4250	0.021	355
	4	8760	0.040	1400	6370	0.036	920	4780	0.032	610	3180	0.028	355
	5	7010	0.045	1260	5100	0.041	830	3820	0.036	550	2550	0.032	320
	6	5840	0.050	1170	4250	0.045	770	3180	0.040	510	2120	0.035	295
	8	4380	0.065	1140	3180	0.059	740	2390	0.052	495	1590	0.046	290
	10	3500	0.085	1190	2550	0.077	780	1910	0.068	520	1270	0.060	300
	12	2920	0.100	1170	2120	0.090	760	1590	0.080	510	1060	0.070	295
