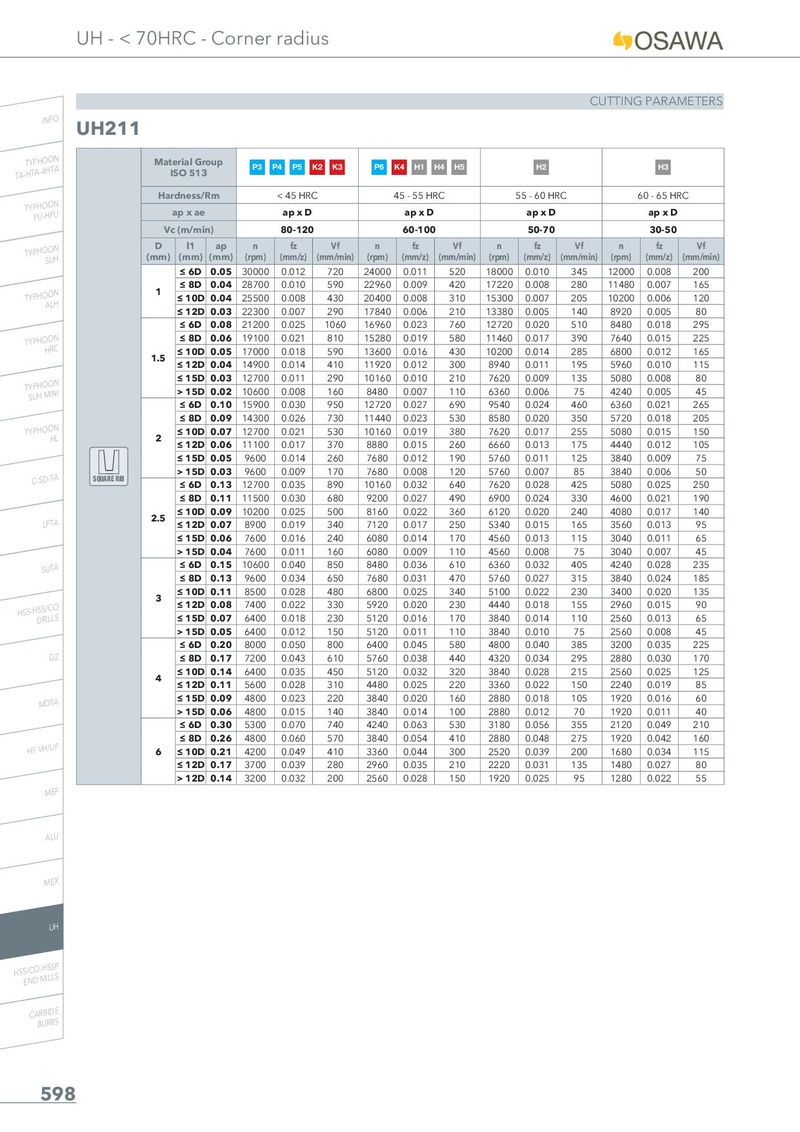

UH - < 70HRC - Corner radius CUTTING PARAMETERS INFO UH211 TA-THYTPAH-4OHOTNA Material Group P3 P4 P5 K2 K3 P6 K4 H1 H4 H5 H2 H3 ISO 513 Hardness/Rm < 45 HRC 45 - 55 HRC 55 - 60 HRC 60 - 65 HRC TYPPHUO-HOPNU ap x ae ap x D ap x D ap x D ap x D Vc (m/min) 80-120 60-100 50-70 30-50 TYPHOSOUNH D l1 ap n fz Vf n fz Vf n fz Vf n fz Vf (mm) (mm) (mm) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) ≤ 6D 0.05 30000 0.012 720 24000 0.011 520 18000 0.010 345 12000 0.008 200 1 ≤ 8D 0.04 28700 0.010 590 22960 0.009 420 17220 0.008 280 11480 0.007 165 TYPHOAOLNH ≤ 10D 0.04 25500 0.008 430 20400 0.008 310 15300 0.007 205 10200 0.006 120 ≤ 12D 0.03 22300 0.007 290 17840 0.006 210 13380 0.005 140 8920 0.005 80 ≤ 6D 0.08 21200 0.025 1060 16960 0.023 760 12720 0.020 510 8480 0.018 295 TYPHOHORNC ≤ 8D 0.06 19100 0.021 810 15280 0.019 580 11460 0.017 390 7640 0.015 225 1.5 ≤ 10D 0.05 17000 0.018 590 13600 0.016 430 10200 0.014 285 6800 0.012 165 ≤ 12D 0.04 14900 0.014 410 11920 0.012 300 8940 0.011 195 5960 0.010 115 TSYUPHHOMOINNI ≤ 15D 0.03 12700 0.011 290 10160 0.010 210 7620 0.009 135 5080 0.008 80 > 15D 0.02 10600 0.008 160 8480 0.007 110 6360 0.006 75 4240 0.005 45 ≤ 6D 0.10 15900 0.030 950 12720 0.027 690 9540 0.024 460 6360 0.021 265 ≤ 8D 0.09 14300 0.026 730 11440 0.023 530 8580 0.020 350 5720 0.018 205 TYPHOOHNL 2 ≤ 10D 0.07 12700 0.021 530 10160 0.019 380 7620 0.017 255 5080 0.015 150 ≤ 12D 0.06 11100 0.017 370 8880 0.015 260 6660 0.013 175 4440 0.012 105 ≤ 15D 0.05 9600 0.014 260 7680 0.012 190 5760 0.011 125 3840 0.009 75 C-SD-TA SQUARE RIB > 15D 0.03 9600 0.009 170 7680 0.008 120 5760 0.007 85 3840 0.006 50 ≤ 6D 0.13 12700 0.035 890 10160 0.032 640 7620 0.028 425 5080 0.025 250 ≤ 8D 0.11 11500 0.030 680 9200 0.027 490 6900 0.024 330 4600 0.021 190 2.5 ≤ 10D 0.09 10200 0.025 500 8160 0.022 360 6120 0.020 240 4080 0.017 140 LFTA ≤ 12D 0.07 8900 0.019 340 7120 0.017 250 5340 0.015 165 3560 0.013 95 ≤ 15D 0.06 7600 0.016 240 6080 0.014 170 4560 0.013 115 3040 0.011 65 > 15D 0.04 7600 0.011 160 6080 0.009 110 4560 0.008 75 3040 0.007 45 SUTA ≤ 6D 0.15 10600 0.040 850 8480 0.036 610 6360 0.032 405 4240 0.028 235 ≤ 8D 0.13 9600 0.034 650 7680 0.031 470 5760 0.027 315 3840 0.024 185 3 ≤ 10D 0.11 8500 0.028 480 6800 0.025 340 5100 0.022 230 3400 0.020 135 HSS-HDSSR/ILCLOS ≤ 12D 0.08 7400 0.022 330 5920 0.020 230 4440 0.018 155 2960 0.015 90 ≤ 15D 0.07 6400 0.018 230 5120 0.016 170 3840 0.014 110 2560 0.013 65 > 15D 0.05 6400 0.012 150 5120 0.011 110 3840 0.010 75 2560 0.008 45 ≤ 6D 0.20 8000 0.050 800 6400 0.045 580 4800 0.040 385 3200 0.035 225 G2 ≤ 8D 0.17 7200 0.043 610 5760 0.038 440 4320 0.034 295 2880 0.030 170 4 ≤ 10D 0.14 6400 0.035 450 5120 0.032 320 3840 0.028 215 2560 0.025 125 ≤ 12D 0.11 5600 0.028 310 4480 0.025 220 3360 0.022 150 2240 0.019 85 MDTA ≤ 15D 0.09 4800 0.023 220 3840 0.020 160 2880 0.018 105 1920 0.016 60 > 15D 0.06 4800 0.015 140 3840 0.014 100 2880 0.012 70 1920 0.011 40 ≤ 6D 0.30 5300 0.070 740 4240 0.063 530 3180 0.056 355 2120 0.049 210 ≤ 8D 0.26 4800 0.060 570 3840 0.054 410 2880 0.048 275 1920 0.042 160 HF VH/UP 6 ≤ 10D 0.21 4200 0.049 410 3360 0.044 300 2520 0.039 200 1680 0.034 115 ≤ 12D 0.17 3700 0.039 280 2960 0.035 210 2220 0.031 135 1480 0.027 80 > 12D 0.14 3200 0.032 200 2560 0.028 150 1920 0.025 95 1280 0.022 55 MEF ALU MEX UH HSSE/NCDO-MHISLSLPS CARBIDE BURRS 598
