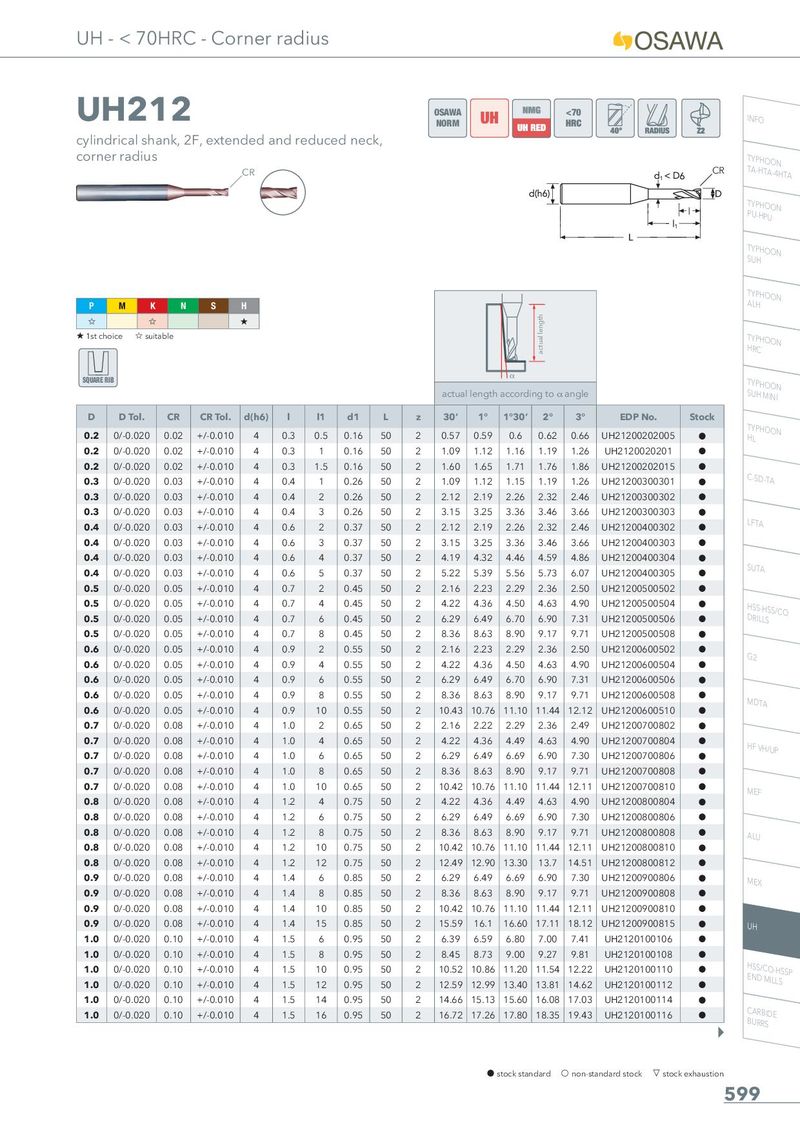

UH - < 70HRC - Corner radius UH212 OSAWA <70 INFO NORM cylindrical shank, 2F, extended and reduced neck, corner radius TTYAP-HHTOAO-4NHTA CR CR TPYUP-HHPOUON TSUYPHHOON P M K N S H TAYLPHHOON , , + actual length + 1st choice , suitable THYRPCHOON SQUARE RIB α TSUYPHHMOIONIN actual length according to _ angle D D Tol. CR CR Tol. d(h6) l l1 d1 L z 30’ 1° 1°30’ 2° 3° EDP No. Stock 0.2 0/-0.020 0.02 +/-0.010 4 0.3 0.5 0.16 50 2 0.57 0.59 0.6 0.62 0.66 UH21200202005 h THYLPHOON 0.2 0/-0.020 0.02 +/-0.010 4 0.3 1 0.16 50 2 1.09 1.12 1.16 1.19 1.26 UH2120020201 h 0.2 0/-0.020 0.02 +/-0.010 4 0.3 1.5 0.16 50 2 1.60 1.65 1.71 1.76 1.86 UH21200202015 h 0.3 0/-0.020 0.03 +/-0.010 4 0.4 1 0.26 50 2 1.09 1.12 1.15 1.19 1.26 UH21200300301 h C-SD-TA 0.3 0/-0.020 0.03 +/-0.010 4 0.4 2 0.26 50 2 2.12 2.19 2.26 2.32 2.46 UH21200300302 h 0.3 0/-0.020 0.03 +/-0.010 4 0.4 3 0.26 50 2 3.15 3.25 3.36 3.46 3.66 UH21200300303 h 0.4 0/-0.020 0.03 +/-0.010 4 0.6 2 0.37 50 2 2.12 2.19 2.26 2.32 2.46 UH21200400302 h LFTA 0.4 0/-0.020 0.03 +/-0.010 4 0.6 3 0.37 50 2 3.15 3.25 3.36 3.46 3.66 UH21200400303 h 0.4 0/-0.020 0.03 +/-0.010 4 0.6 4 0.37 50 2 4.19 4.32 4.46 4.59 4.86 UH21200400304 h 0.4 0/-0.020 0.03 +/-0.010 4 0.6 5 0.37 50 2 5.22 5.39 5.56 5.73 6.07 UH21200400305 h SUTA 0.5 0/-0.020 0.05 +/-0.010 4 0.7 2 0.45 50 2 2.16 2.23 2.29 2.36 2.50 UH21200500502 h 0.5 0/-0.020 0.05 +/-0.010 4 0.7 4 0.45 50 2 4.22 4.36 4.50 4.63 4.90 UH21200500504 h HDSRSIL-LHSSS/CO 0.5 0/-0.020 0.05 +/-0.010 4 0.7 6 0.45 50 2 6.29 6.49 6.70 6.90 7.31 UH21200500506 h 0.5 0/-0.020 0.05 +/-0.010 4 0.7 8 0.45 50 2 8.36 8.63 8.90 9.17 9.71 UH21200500508 h 0.6 0/-0.020 0.05 +/-0.010 4 0.9 2 0.55 50 2 2.16 2.23 2.29 2.36 2.50 UH21200600502 h G2 0.6 0/-0.020 0.05 +/-0.010 4 0.9 4 0.55 50 2 4.22 4.36 4.50 4.63 4.90 UH21200600504 h 0.6 0/-0.020 0.05 +/-0.010 4 0.9 6 0.55 50 2 6.29 6.49 6.70 6.90 7.31 UH21200600506 h 0.6 0/-0.020 0.05 +/-0.010 4 0.9 8 0.55 50 2 8.36 8.63 8.90 9.17 9.71 UH21200600508 h MDTA 0.6 0/-0.020 0.05 +/-0.010 4 0.9 10 0.55 50 2 10.43 10.76 11.10 11.44 12.12 UH21200600510 h 0.7 0/-0.020 0.08 +/-0.010 4 1.0 2 0.65 50 2 2.16 2.22 2.29 2.36 2.49 UH21200700802 h 0.7 0/-0.020 0.08 +/-0.010 4 1.0 4 0.65 50 2 4.22 4.36 4.49 4.63 4.90 UH21200700804 h HF VH/UP 0.7 0/-0.020 0.08 +/-0.010 4 1.0 6 0.65 50 2 6.29 6.49 6.69 6.90 7.30 UH21200700806 h 0.7 0/-0.020 0.08 +/-0.010 4 1.0 8 0.65 50 2 8.36 8.63 8.90 9.17 9.71 UH21200700808 h 0.7 0/-0.020 0.08 +/-0.010 4 1.0 10 0.65 50 2 10.42 10.76 11.10 11.44 12.11 UH21200700810 h MEF 0.8 0/-0.020 0.08 +/-0.010 4 1.2 4 0.75 50 2 4.22 4.36 4.49 4.63 4.90 UH21200800804 h 0.8 0/-0.020 0.08 +/-0.010 4 1.2 6 0.75 50 2 6.29 6.49 6.69 6.90 7.30 UH21200800806 h 0.8 0/-0.020 0.08 +/-0.010 4 1.2 8 0.75 50 2 8.36 8.63 8.90 9.17 9.71 UH21200800808 h ALU 0.8 0/-0.020 0.08 +/-0.010 4 1.2 10 0.75 50 2 10.42 10.76 11.10 11.44 12.11 UH21200800810 h 0.8 0/-0.020 0.08 +/-0.010 4 1.2 12 0.75 50 2 12.49 12.90 13.30 13.7 14.51 UH21200800812 h 0.9 0/-0.020 0.08 +/-0.010 4 1.4 6 0.85 50 2 6.29 6.49 6.69 6.90 7.30 UH21200900806 h MEX 0.9 0/-0.020 0.08 +/-0.010 4 1.4 8 0.85 50 2 8.36 8.63 8.90 9.17 9.71 UH21200900808 h 0.9 0/-0.020 0.08 +/-0.010 4 1.4 10 0.85 50 2 10.42 10.76 11.10 11.44 12.11 UH21200900810 h 0.9 0/-0.020 0.08 +/-0.010 4 1.4 15 0.85 50 2 15.59 16.1 16.60 17.11 18.12 UH21200900815 h UH 1.0 0/-0.020 0.10 +/-0.010 4 1.5 6 0.95 50 2 6.39 6.59 6.80 7.00 7.41 UH2120100106 h 1.0 0/-0.020 0.10 +/-0.010 4 1.5 8 0.95 50 2 8.45 8.73 9.00 9.27 9.81 UH2120100108 h 1.0 0/-0.020 0.10 +/-0.010 4 1.5 10 0.95 50 2 10.52 10.86 11.20 11.54 12.22 UH2120100110 h HENSSD/CMOIL-LHSSSP 1.0 0/-0.020 0.10 +/-0.010 4 1.5 12 0.95 50 2 12.59 12.99 13.40 13.81 14.62 UH2120100112 h 1.0 0/-0.020 0.10 +/-0.010 4 1.5 14 0.95 50 2 14.66 15.13 15.60 16.08 17.03 UH2120100114 h 1.0 0/-0.020 0.10 +/-0.010 4 1.5 16 0.95 50 2 16.72 17.26 17.80 18.35 19.43 UH2120100116 h CBUARRRBSIDE h stock standard f non-standard stock m stock exhaustion 599
