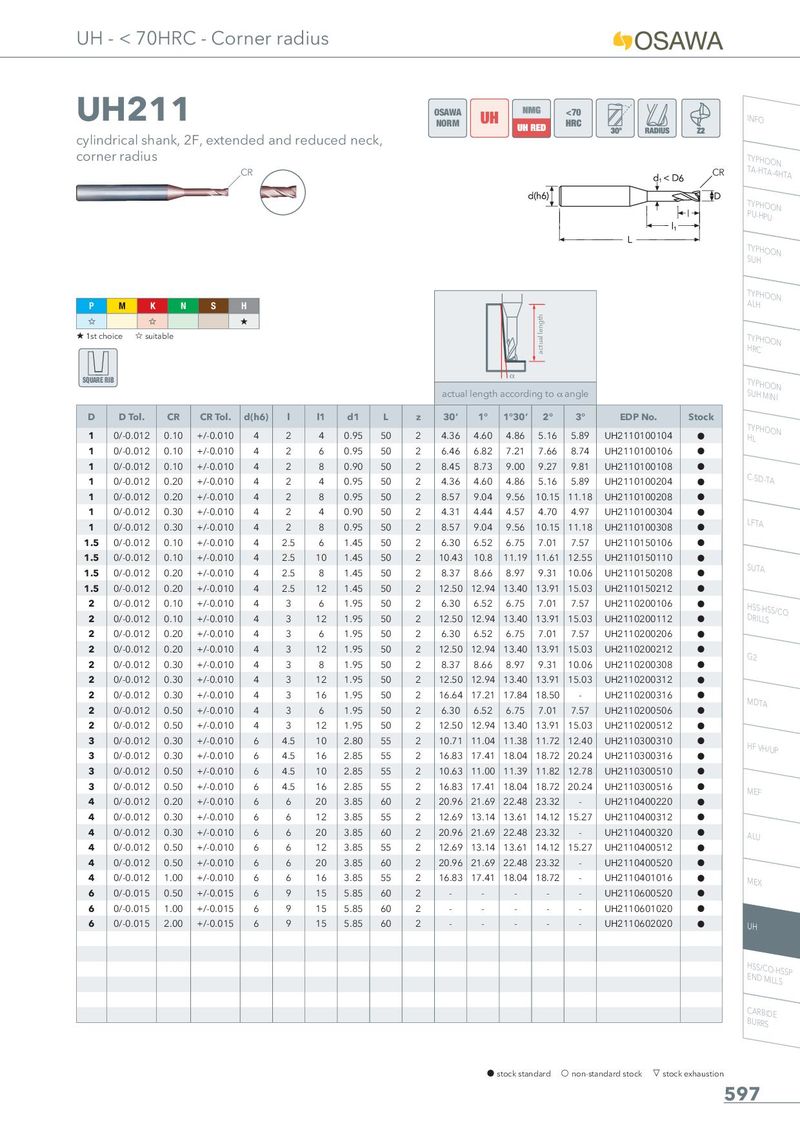

UH211

OSAWA <70 NORM INFO cylindrical shank, 2F, extended and reduced neck, corner radius TYPHOON

CR CR TA-HTA-4HTA

TYPHOON PU-HPU

TYPHOON SUH

TYPHOON

P � �1st ch SQUARE R	M K � oice�suit IB	N able	S	H �						actual	length	α accord	actual length ing to�	angle
D	D Tol.	CR	CR Tol.	d(h6)	l	l1	d1	L	z	30’	1°	1°30’	2°	3°	EDP No.	Stock
1	0/-0.012	0.10	+/-0.010	4	2	4	0.95	50	2	4.36	4.60	4.86	5.16	5.89	UH2110100104	h
1	0/-0.012	0.10	+/-0.010	4	2	6	0.95	50	2	6.46	6.82	7.21	7.66	8.74	UH2110100106	h
1	0/-0.012	0.10	+/-0.010	4	2	8	0.90	50	2	8.45	8.73	9.00	9.27	9.81	UH2110100108	h
1	0/-0.012	0.20	+/-0.010	4	2	4	0.95	50	2	4.36	4.60	4.86	5.16	5.89	UH2110100204	h
1	0/-0.012	0.20	+/-0.010	4	2	8	0.95	50	2	8.57	9.04	9.56	10.15	11.18	UH2110100208	h
1	0/-0.012	0.30	+/-0.010	4	2	4	0.90	50	2	4.31	4.44	4.57	4.70	4.97	UH2110100304	h
1	0/-0.012	0.30	+/-0.010	4	2	8	0.95	50	2	8.57	9.04	9.56	10.15	11.18	UH2110100308	h
1.5	0/-0.012	0.10	+/-0.010	4	2.5	6	1.45	50	2	6.30	6.52	6.75	7.01	7.57	UH2110150106	h
1.5	0/-0.012	0.10	+/-0.010	4	2.5	10	1.45	50	2	10.43	10.8	11.19	11.61	12.55	UH2110150110	h
1.5	0/-0.012	0.20	+/-0.010	4	2.5	8	1.45	50	2	8.37	8.66	8.97	9.31	10.06	UH2110150208	h
1.5	0/-0.012	0.20	+/-0.010	4	2.5	12	1.45	50	2	12.50	12.94	13.40	13.91	15.03	UH2110150212	h
2	0/-0.012	0.10	+/-0.010	4	3	6	1.95	50	2	6.30	6.52	6.75	7.01	7.57	UH2110200106	h
2	0/-0.012	0.10	+/-0.010	4	3	12	1.95	50	2	12.50	12.94	13.40	13.91	15.03	UH2110200112	h
2	0/-0.012	0.20	+/-0.010	4	3	6	1.95	50	2	6.30	6.52	6.75	7.01	7.57	UH2110200206	h
2	0/-0.012	0.20	+/-0.010	4	3	12	1.95	50	2	12.50	12.94	13.40	13.91	15.03	UH2110200212	h
2	0/-0.012	0.30	+/-0.010	4	3	8	1.95	50	2	8.37	8.66	8.97	9.31	10.06	UH2110200308	h
2	0/-0.012	0.30	+/-0.010	4	3	12	1.95	50	2	12.50	12.94	13.40	13.91	15.03	UH2110200312	h
2	0/-0.012	0.30	+/-0.010	4	3	16	1.95	50	2	16.64	17.21	17.84	18.50	-	UH2110200316	h
2	0/-0.012	0.50	+/-0.010	4	3	6	1.95	50	2	6.30	6.52	6.75	7.01	7.57	UH2110200506	h
2	0/-0.012	0.50	+/-0.010	4	3	12	1.95	50	2	12.50	12.94	13.40	13.91	15.03	UH2110200512	h
3	0/-0.012	0.30	+/-0.010	6	4.5	10	2.80	55	2	10.71	11.04	11.38	11.72	12.40	UH2110300310	h
3	0/-0.012	0.30	+/-0.010	6	4.5	16	2.85	55	2	16.83	17.41	18.04	18.72	20.24	UH2110300316	h
3	0/-0.012	0.50	+/-0.010	6	4.5	10	2.85	55	2	10.63	11.00	11.39	11.82	12.78	UH2110300510	h
3	0/-0.012	0.50	+/-0.010	6	4.5	16	2.85	55	2	16.83	17.41	18.04	18.72	20.24	UH2110300516	h
4	0/-0.012	0.20	+/-0.010	6	6	20	3.85	60	2	20.96	21.69	22.48	23.32	-	UH2110400220	h
4	0/-0.012	0.30	+/-0.010	6	6	12	3.85	55	2	12.69	13.14	13.61	14.12	15.27	UH2110400312	h
4	0/-0.012	0.30	+/-0.010	6	6	20	3.85	60	2	20.96	21.69	22.48	23.32	-	UH2110400320	h
4	0/-0.012	0.50	+/-0.010	6	6	12	3.85	55	2	12.69	13.14	13.61	14.12	15.27	UH2110400512	h
4	0/-0.012	0.50	+/-0.010	6	6	20	3.85	60	2	20.96	21.69	22.48	23.32	-	UH2110400520	h
4	0/-0.012	1.00	+/-0.010	6	6	16	3.85	55	2	16.83	17.41	18.04	18.72	-	UH2110401016	h
6	0/-0.015	0.50	+/-0.015	6	9	15	5.85	60	2	-	-	-	-	-	UH2110600520	h
6	0/-0.015	1.00	+/-0.015	6	9	15	5.85	60	2	-	-	-	-	-	UH2110601020	h
6	0/-0.015	2.00	+/-0.015	6	9	15	5.85	60	2	-	-	-	-	-	UH2110602020	h
