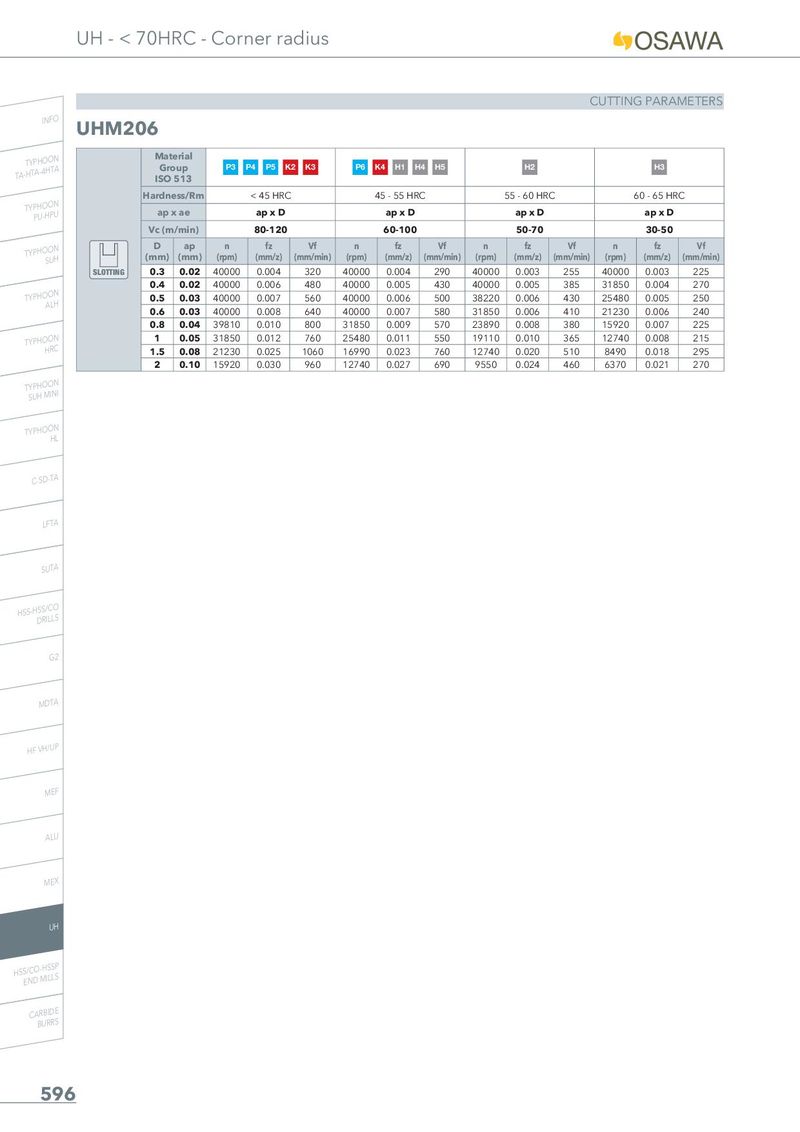

Общий каталог Osawa 2018 - страница 598

Общий каталог Osawa 2021

Общий каталог Osawa 2021

CUTTING PARAMETERS

INFO UHM206

	Ma Gr ISO	terial oup 513	P3	P4 P5 K	2 K3	P6	K4 H1 H	4 H5		H2			H3
H	ardn	ess/Rm		< 45 HRC			45 - 55 HRC			55 - 60 HR	C		60 - 65 HR	C
	ap	x ae		apxD			apxD			apxD			apxD
	Vc (m	/min)		80-120			60-100			50-70			30-50
(	D mm)	ap (mm)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)
SLOTTING	0.3	0.02	40000	0.004	320	40000	0.004	290	40000	0.003	255	40000	0.003	225
	0.4	0.02	40000	0.006	480	40000	0.005	430	40000	0.005	385	31850	0.004	270
	0.5	0.03	40000	0.007	560	40000	0.006	500	38220	0.006	430	25480	0.005	250
	0.6	0.03	40000	0.008	640	40000	0.007	580	31850	0.006	410	21230	0.006	240
	0.8	0.04	39810	0.010	800	31850	0.009	570	23890	0.008	380	15920	0.007	225
	1	0.05	31850	0.012	760	25480	0.011	550	19110	0.010	365	12740	0.008	215
	1.5	0.08	21230	0.025	1060	16990	0.023	760	12740	0.020	510	8490	0.018	295
	2	0.10	15920	0.030	960	12740	0.027	690	9550	0.024	460	6370	0.021	270
