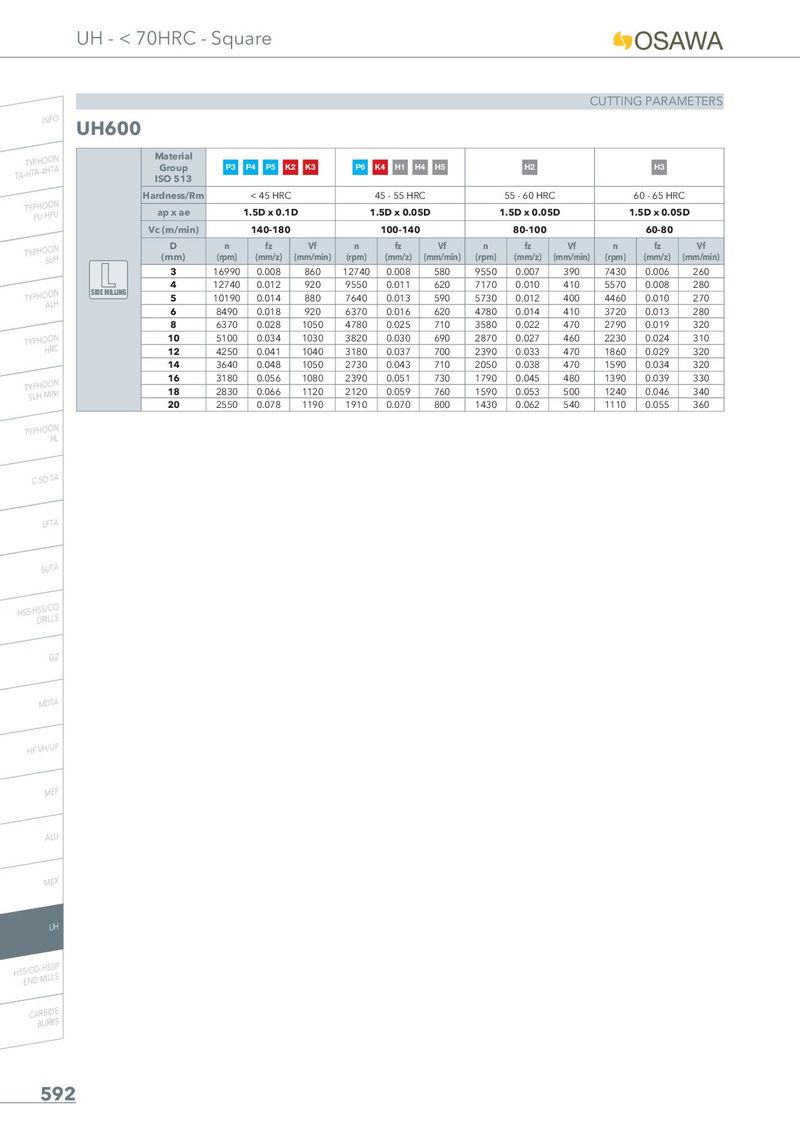

UH - < 70HRC - Square CUTTING PARAMETERS INFO UH600 TA-THYTPAH-4OHOTNA Material Group P3 P4 P5 K2 K3 P6 K4 H1 H4 H5 H2 H3 ISO 513 Hardness/Rm < 45 HRC 45 - 55 HRC 55 - 60 HRC 60 - 65 HRC TYPPHUO-HOPNU ap x ae 1.5D x 0.1D 1.5D x 0.05D 1.5D x 0.05D 1.5D x 0.05D Vc (m/min) 140-180 100-140 80-100 60-80 TYPHOSOUNH D n fz Vf n fz Vf n fz Vf n fz Vf (mm) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) 3 16990 0.008 860 12740 0.008 580 9550 0.007 390 7430 0.006 260 SIDE MILLING 4 12740 0.012 920 9550 0.011 620 7170 0.010 410 5570 0.008 280 TYPHOAOLNH 5 10190 0.014 880 7640 0.013 590 5730 0.012 400 4460 0.010 270 6 8490 0.018 920 6370 0.016 620 4780 0.014 410 3720 0.013 280 8 6370 0.028 1050 4780 0.025 710 3580 0.022 470 2790 0.019 320 TYPHOHORNC 10 5100 0.034 1030 3820 0.030 690 2870 0.027 460 2230 0.024 310 12 4250 0.041 1040 3180 0.037 700 2390 0.033 470 1860 0.029 320 14 3640 0.048 1050 2730 0.043 710 2050 0.038 470 1590 0.034 320 TSYUPHHOMOINNI 16 3180 0.056 1080 2390 0.051 730 1790 0.045 480 1390 0.039 330 18 2830 0.066 1120 2120 0.059 760 1590 0.053 500 1240 0.046 340 20 2550 0.078 1190 1910 0.070 800 1430 0.062 540 1110 0.055 360 TYPHOOHNL C-SD-TA LFTA SUTA HSS-HDSSR/ILCLOS G2 MDTA HF VH/UP MEF ALU MEX UH HSSE/NCDO-MHISLSLPS CARBIDE BURRS 592
