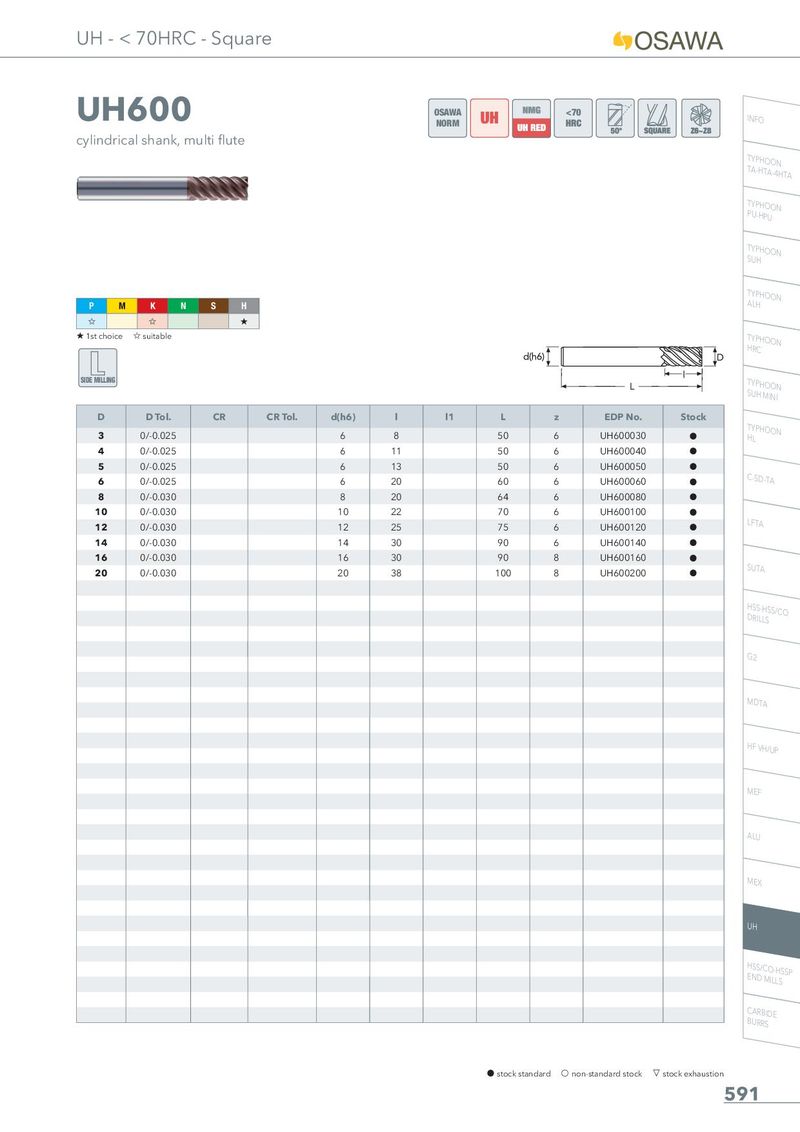

UH600
cylindrical shank, multi flute
OSAWA <70 NORM
INFO
TYPHOON TA-HTA-4HTA
TYPHOON PU-HPU
TYPHOON SUH
TYPHOON
| P M | K N | S | H | |||||||
| � | � | � | ||||||||
| �1st choice | �suitable | |||||||||
| SIDE MILLING | ||||||||||
| D | D Tol. | CR | CR Tol. | d(h6) | l | l1 L | z | EDP No. | Stock | |
| 3 | 0/-0.025 | 6 | 8 | 50 | 6 | UH600030 | h | |||
| 4 | 0/-0.025 | 6 | 11 | 50 | 6 | UH600040 | h | |||
| 5 | 0/-0.025 | 6 | 13 | 50 | 6 | UH600050 | h | |||
| 6 | 0/-0.025 | 6 | 20 | 60 | 6 | UH600060 | h | |||
| 8 | 0/-0.030 | 8 | 20 | 64 | 6 | UH600080 | h | |||
| 10 | 0/-0.030 | 10 | 22 | 70 | 6 | UH600100 | h | |||
| 12 | 0/-0.030 | 12 | 25 | 75 | 6 | UH600120 | h | |||
| 14 | 0/-0.030 | 14 | 30 | 90 | 6 | UH600140 | h | |||
| 16 | 0/-0.030 | 16 | 30 | 90 | 8 | UH600160 | h | |||
| 20 | 0/-0.030 | 20 | 38 | 100 | 8 | UH600200 | h |
