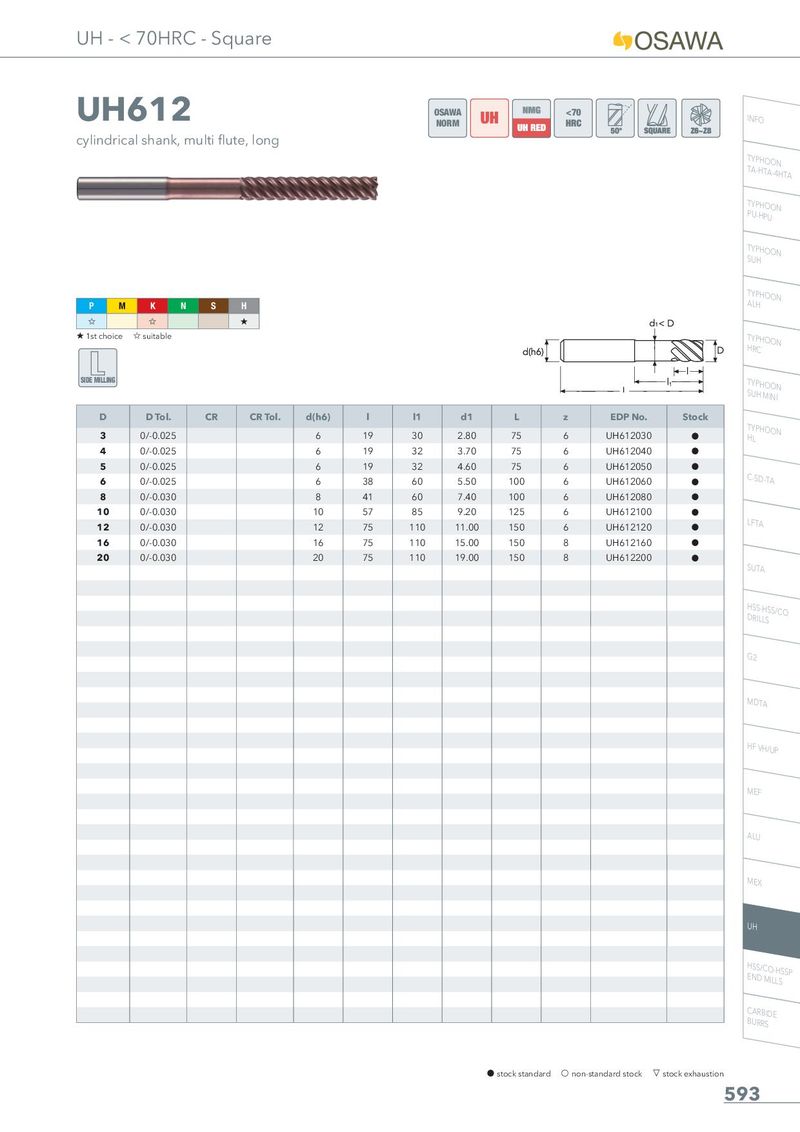

UH612
cylindrical shank, multi flute, long
OSAWA <70 NORM
INFO
TYPHOON TA-HTA-4HTA
TYPHOON PU-HPU
TYPHOON SUH
TYPHOON
| P M | K N | S | H | ||||||||
| � | � | � | |||||||||
| �1st choice | �suitable | ||||||||||
| SIDE MILLING | |||||||||||
| D | D Tol. | CR | CR Tol. | d(h6) | l | l1 | d1 | L | z | EDP No. | Stock |
| 3 | 0/-0.025 | 6 | 19 | 30 | 2.80 | 75 | 6 | UH612030 | h | ||
| 4 | 0/-0.025 | 6 | 19 | 32 | 3.70 | 75 | 6 | UH612040 | h | ||
| 5 | 0/-0.025 | 6 | 19 | 32 | 4.60 | 75 | 6 | UH612050 | h | ||
| 6 | 0/-0.025 | 6 | 38 | 60 | 5.50 | 100 | 6 | UH612060 | h | ||
| 8 | 0/-0.030 | 8 | 41 | 60 | 7.40 | 100 | 6 | UH612080 | h | ||
| 10 | 0/-0.030 | 10 | 57 | 85 | 9.20 | 125 | 6 | UH612100 | h | ||
| 12 | 0/-0.030 | 12 | 75 | 110 | 11.00 | 150 | 6 | UH612120 | h | ||
| 16 | 0/-0.030 | 16 | 75 | 110 | 15.00 | 150 | 8 | UH612160 | h | ||
| 20 | 0/-0.030 | 20 | 75 | 110 | 19.00 | 150 | 8 | UH612200 | h |
