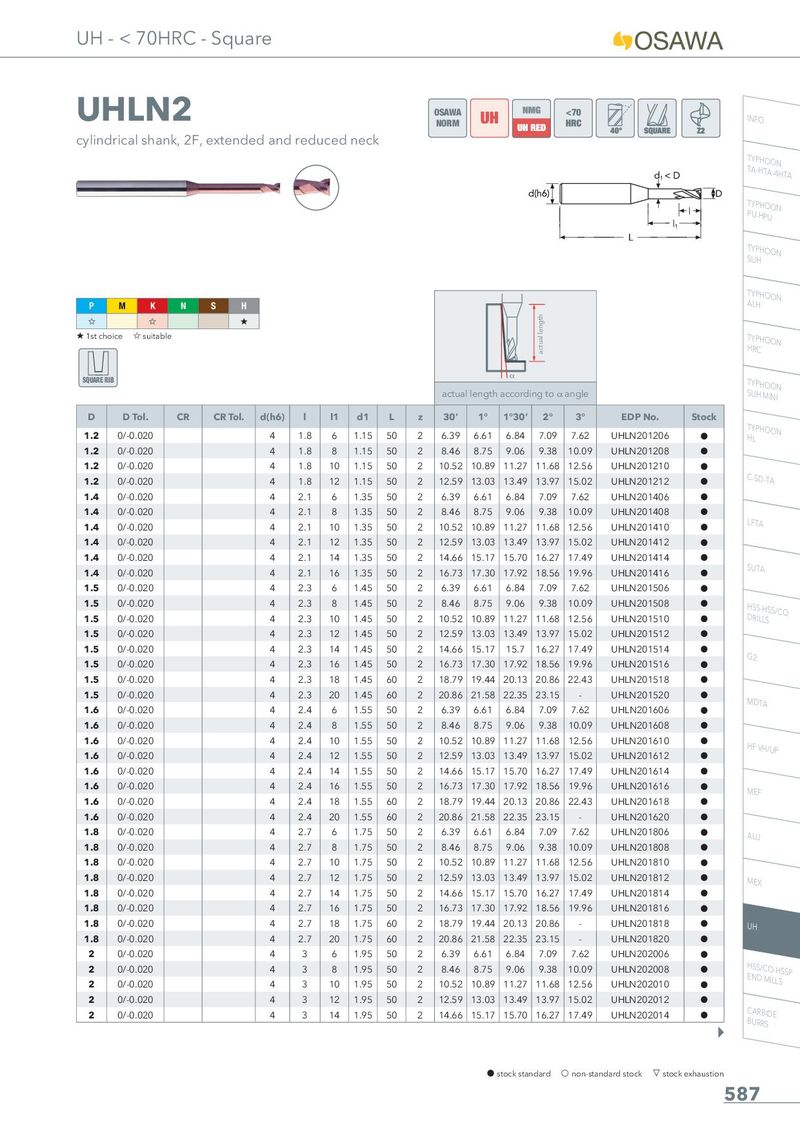

UHLN2

cylindrical shank, 2F, extended and reduced neck

OSAWA <70 NORM

INFO

TYPHOON TA-HTA-4HTA

TYPHOON PU-HPU

TYPHOON SUH

TYPHOON

P � �1st ch	M K � oice�suitable	N	S H �										actual length
SQUARE R	IB									actual	length	α accordi	ng to�	angle
D	D Tol.	CR	CR Tol.	d(h6)	l	l1	d1	L	z	30’	1°	1°30’	2°	3°	EDP No.	Stock
1.2	0/-0.020			4	1.8	6	1.15	50	2	6.39	6.61	6.84	7.09	7.62	UHLN201206	h
1.2	0/-0.020			4	1.8	8	1.15	50	2	8.46	8.75	9.06	9.38	10.09	UHLN201208	h
1.2	0/-0.020			4	1.8	10	1.15	50	2	10.52	10.89	11.27	11.68	12.56	UHLN201210	h
1.2	0/-0.020			4	1.8	12	1.15	50	2	12.59	13.03	13.49	13.97	15.02	UHLN201212	h
1.4	0/-0.020			4	2.1	6	1.35	50	2	6.39	6.61	6.84	7.09	7.62	UHLN201406	h
1.4	0/-0.020			4	2.1	8	1.35	50	2	8.46	8.75	9.06	9.38	10.09	UHLN201408	h
1.4	0/-0.020			4	2.1	10	1.35	50	2	10.52	10.89	11.27	11.68	12.56	UHLN201410	h
1.4	0/-0.020			4	2.1	12	1.35	50	2	12.59	13.03	13.49	13.97	15.02	UHLN201412	h
1.4	0/-0.020			4	2.1	14	1.35	50	2	14.66	15.17	15.70	16.27	17.49	UHLN201414	h
1.4	0/-0.020			4	2.1	16	1.35	50	2	16.73	17.30	17.92	18.56	19.96	UHLN201416	h
1.5	0/-0.020			4	2.3	6	1.45	50	2	6.39	6.61	6.84	7.09	7.62	UHLN201506	h
1.5	0/-0.020			4	2.3	8	1.45	50	2	8.46	8.75	9.06	9.38	10.09	UHLN201508	h
1.5	0/-0.020			4	2.3	10	1.45	50	2	10.52	10.89	11.27	11.68	12.56	UHLN201510	h
1.5	0/-0.020			4	2.3	12	1.45	50	2	12.59	13.03	13.49	13.97	15.02	UHLN201512	h
1.5	0/-0.020			4	2.3	14	1.45	50	2	14.66	15.17	15.7	16.27	17.49	UHLN201514	h
1.5	0/-0.020			4	2.3	16	1.45	50	2	16.73	17.30	17.92	18.56	19.96	UHLN201516	h
1.5	0/-0.020			4	2.3	18	1.45	60	2	18.79	19.44	20.13	20.86	22.43	UHLN201518	h
1.5	0/-0.020			4	2.3	20	1.45	60	2	20.86	21.58	22.35	23.15	-	UHLN201520	h
1.6	0/-0.020			4	2.4	6	1.55	50	2	6.39	6.61	6.84	7.09	7.62	UHLN201606	h
1.6	0/-0.020			4	2.4	8	1.55	50	2	8.46	8.75	9.06	9.38	10.09	UHLN201608	h
1.6	0/-0.020			4	2.4	10	1.55	50	2	10.52	10.89	11.27	11.68	12.56	UHLN201610	h
1.6	0/-0.020			4	2.4	12	1.55	50	2	12.59	13.03	13.49	13.97	15.02	UHLN201612	h
1.6	0/-0.020			4	2.4	14	1.55	50	2	14.66	15.17	15.70	16.27	17.49	UHLN201614	h
1.6	0/-0.020			4	2.4	16	1.55	50	2	16.73	17.30	17.92	18.56	19.96	UHLN201616	h
1.6	0/-0.020			4	2.4	18	1.55	60	2	18.79	19.44	20.13	20.86	22.43	UHLN201618	h
1.6	0/-0.020			4	2.4	20	1.55	60	2	20.86	21.58	22.35	23.15	-	UHLN201620	h
1.8	0/-0.020			4	2.7	6	1.75	50	2	6.39	6.61	6.84	7.09	7.62	UHLN201806	h
1.8	0/-0.020			4	2.7	8	1.75	50	2	8.46	8.75	9.06	9.38	10.09	UHLN201808	h
1.8	0/-0.020			4	2.7	10	1.75	50	2	10.52	10.89	11.27	11.68	12.56	UHLN201810	h
1.8	0/-0.020			4	2.7	12	1.75	50	2	12.59	13.03	13.49	13.97	15.02	UHLN201812	h
1.8	0/-0.020			4	2.7	14	1.75	50	2	14.66	15.17	15.70	16.27	17.49	UHLN201814	h
1.8	0/-0.020			4	2.7	16	1.75	50	2	16.73	17.30	17.92	18.56	19.96	UHLN201816	h
1.8	0/-0.020			4	2.7	18	1.75	60	2	18.79	19.44	20.13	20.86	-	UHLN201818	h
1.8	0/-0.020			4	2.7	20	1.75	60	2	20.86	21.58	22.35	23.15	-	UHLN201820	h
2	0/-0.020			4	3	6	1.95	50	2	6.39	6.61	6.84	7.09	7.62	UHLN202006	h
2	0/-0.020			4	3	8	1.95	50	2	8.46	8.75	9.06	9.38	10.09	UHLN202008	h
2	0/-0.020			4	3	10	1.95	50	2	10.52	10.89	11.27	11.68	12.56	UHLN202010	h
2	0/-0.020			4	3	12	1.95	50	2	12.59	13.03	13.49	13.97	15.02	UHLN202012	h
2	0/-0.020			4	3	14	1.95	50	2	14.66	15.17	15.70	16.27	17.49	UHLN202014	h
