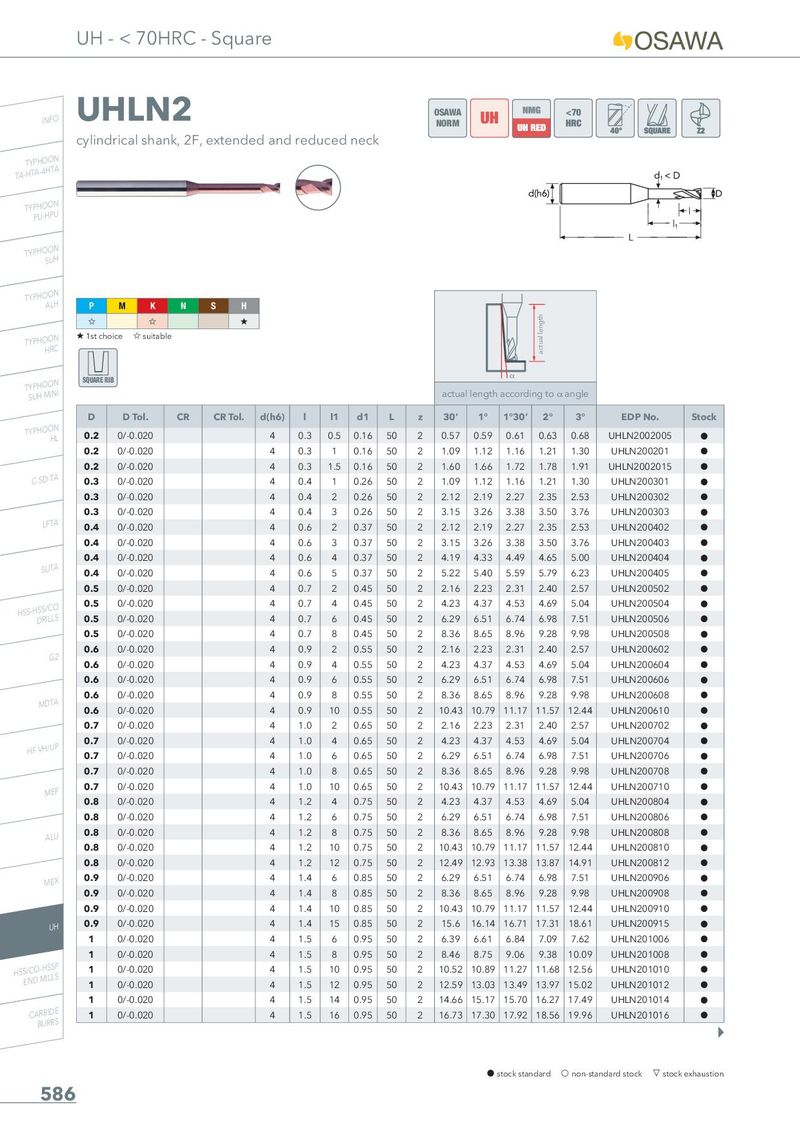

cylindrical shank, 2F, extended and reduced neck

P � �1st ch	M K � oice�suitable	N	S H �										actual length
SQUARE R	IB									actual	length	α accordi	ng to�	angle
D	D Tol.	CR	CR Tol.	d(h6)	l	l1	d1	L	z	30’	1°	1°30’	2°	3°	EDP No.	Stock
0.2	0/-0.020			4	0.3	0.5	0.16	50	2	0.57	0.59	0.61	0.63	0.68	UHLN2002005	h
0.2	0/-0.020			4	0.3	1	0.16	50	2	1.09	1.12	1.16	1.21	1.30	UHLN200201	h
0.2	0/-0.020			4	0.3	1.5	0.16	50	2	1.60	1.66	1.72	1.78	1.91	UHLN2002015	h
0.3	0/-0.020			4	0.4	1	0.26	50	2	1.09	1.12	1.16	1.21	1.30	UHLN200301	h
0.3	0/-0.020			4	0.4	2	0.26	50	2	2.12	2.19	2.27	2.35	2.53	UHLN200302	h
0.3	0/-0.020			4	0.4	3	0.26	50	2	3.15	3.26	3.38	3.50	3.76	UHLN200303	h
0.4	0/-0.020			4	0.6	2	0.37	50	2	2.12	2.19	2.27	2.35	2.53	UHLN200402	h
0.4	0/-0.020			4	0.6	3	0.37	50	2	3.15	3.26	3.38	3.50	3.76	UHLN200403	h
0.4	0/-0.020			4	0.6	4	0.37	50	2	4.19	4.33	4.49	4.65	5.00	UHLN200404	h
0.4	0/-0.020			4	0.6	5	0.37	50	2	5.22	5.40	5.59	5.79	6.23	UHLN200405	h
0.5	0/-0.020			4	0.7	2	0.45	50	2	2.16	2.23	2.31	2.40	2.57	UHLN200502	h
0.5	0/-0.020			4	0.7	4	0.45	50	2	4.23	4.37	4.53	4.69	5.04	UHLN200504	h
0.5	0/-0.020			4	0.7	6	0.45	50	2	6.29	6.51	6.74	6.98	7.51	UHLN200506	h
0.5	0/-0.020			4	0.7	8	0.45	50	2	8.36	8.65	8.96	9.28	9.98	UHLN200508	h
0.6	0/-0.020			4	0.9	2	0.55	50	2	2.16	2.23	2.31	2.40	2.57	UHLN200602	h
0.6	0/-0.020			4	0.9	4	0.55	50	2	4.23	4.37	4.53	4.69	5.04	UHLN200604	h
0.6	0/-0.020			4	0.9	6	0.55	50	2	6.29	6.51	6.74	6.98	7.51	UHLN200606	h
0.6	0/-0.020			4	0.9	8	0.55	50	2	8.36	8.65	8.96	9.28	9.98	UHLN200608	h
0.6	0/-0.020			4	0.9	10	0.55	50	2	10.43	10.79	11.17	11.57	12.44	UHLN200610	h
0.7	0/-0.020			4	1.0	2	0.65	50	2	2.16	2.23	2.31	2.40	2.57	UHLN200702	h
0.7	0/-0.020			4	1.0	4	0.65	50	2	4.23	4.37	4.53	4.69	5.04	UHLN200704	h
0.7	0/-0.020			4	1.0	6	0.65	50	2	6.29	6.51	6.74	6.98	7.51	UHLN200706	h
0.7	0/-0.020			4	1.0	8	0.65	50	2	8.36	8.65	8.96	9.28	9.98	UHLN200708	h
0.7	0/-0.020			4	1.0	10	0.65	50	2	10.43	10.79	11.17	11.57	12.44	UHLN200710	h
0.8	0/-0.020			4	1.2	4	0.75	50	2	4.23	4.37	4.53	4.69	5.04	UHLN200804	h
0.8	0/-0.020			4	1.2	6	0.75	50	2	6.29	6.51	6.74	6.98	7.51	UHLN200806	h
0.8	0/-0.020			4	1.2	8	0.75	50	2	8.36	8.65	8.96	9.28	9.98	UHLN200808	h
0.8	0/-0.020			4	1.2	10	0.75	50	2	10.43	10.79	11.17	11.57	12.44	UHLN200810	h
0.8	0/-0.020			4	1.2	12	0.75	50	2	12.49	12.93	13.38	13.87	14.91	UHLN200812	h
0.9	0/-0.020			4	1.4	6	0.85	50	2	6.29	6.51	6.74	6.98	7.51	UHLN200906	h
0.9	0/-0.020			4	1.4	8	0.85	50	2	8.36	8.65	8.96	9.28	9.98	UHLN200908	h
0.9	0/-0.020			4	1.4	10	0.85	50	2	10.43	10.79	11.17	11.57	12.44	UHLN200910	h
0.9	0/-0.020			4	1.4	15	0.85	50	2	15.6	16.14	16.71	17.31	18.61	UHLN200915	h
1	0/-0.020			4	1.5	6	0.95	50	2	6.39	6.61	6.84	7.09	7.62	UHLN201006	h
1	0/-0.020			4	1.5	8	0.95	50	2	8.46	8.75	9.06	9.38	10.09	UHLN201008	h
1	0/-0.020			4	1.5	10	0.95	50	2	10.52	10.89	11.27	11.68	12.56	UHLN201010	h
1	0/-0.020			4	1.5	12	0.95	50	2	12.59	13.03	13.49	13.97	15.02	UHLN201012	h
1	0/-0.020			4	1.5	14	0.95	50	2	14.66	15.17	15.70	16.27	17.49	UHLN201014	h
1	0/-0.020			4	1.5	16	0.95	50	2	16.73	17.30	17.92	18.56	19.96	UHLN201016	h
