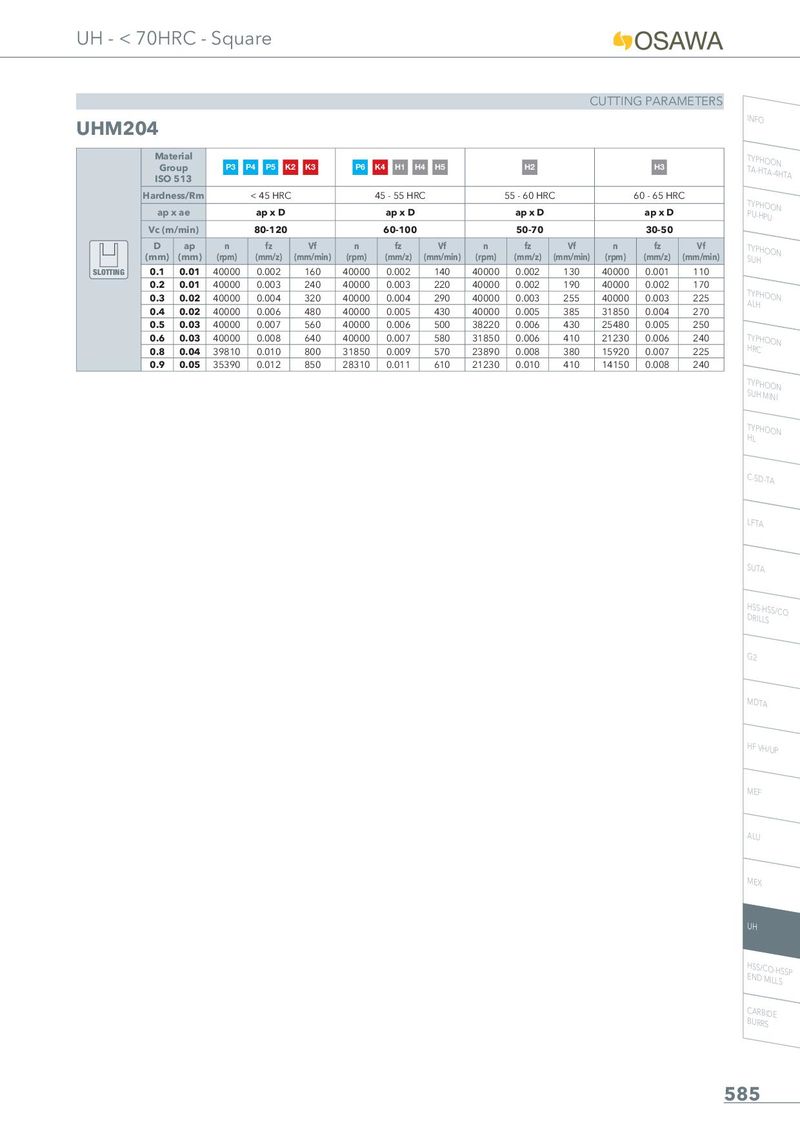

CUTTING PARAMETERS

UHM204 INFO

	Mat Gr ISO	erial oup 513	P3	P4 P5 K2	K3	P6	K4 H1 H	4 H5		H2			H3
H	ardn	ess/Rm		< 45 HRC			45 - 55 HRC			55 - 60 HR	C		60 - 65 HR	C
	ap	x ae		apxD			apxD			apxD			apxD
	Vc (m	/min)		80-120			60-100			50-70			30-50
(	D mm)	ap (mm)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)
SLOTTING	0.1	0.01	40000	0.002	160	40000	0.002	140	40000	0.002	130	40000	0.001	110
	0.2	0.01	40000	0.003	240	40000	0.003	220	40000	0.002	190	40000	0.002	170
	0.3	0.02	40000	0.004	320	40000	0.004	290	40000	0.003	255	40000	0.003	225
	0.4	0.02	40000	0.006	480	40000	0.005	430	40000	0.005	385	31850	0.004	270
	0.5	0.03	40000	0.007	560	40000	0.006	500	38220	0.006	430	25480	0.005	250
	0.6	0.03	40000	0.008	640	40000	0.007	580	31850	0.006	410	21230	0.006	240
	0.8	0.04	39810	0.010	800	31850	0.009	570	23890	0.008	380	15920	0.007	225
	0.9	0.05	35390	0.012	850	28310	0.011	610	21230	0.010	410	14150	0.008	240
