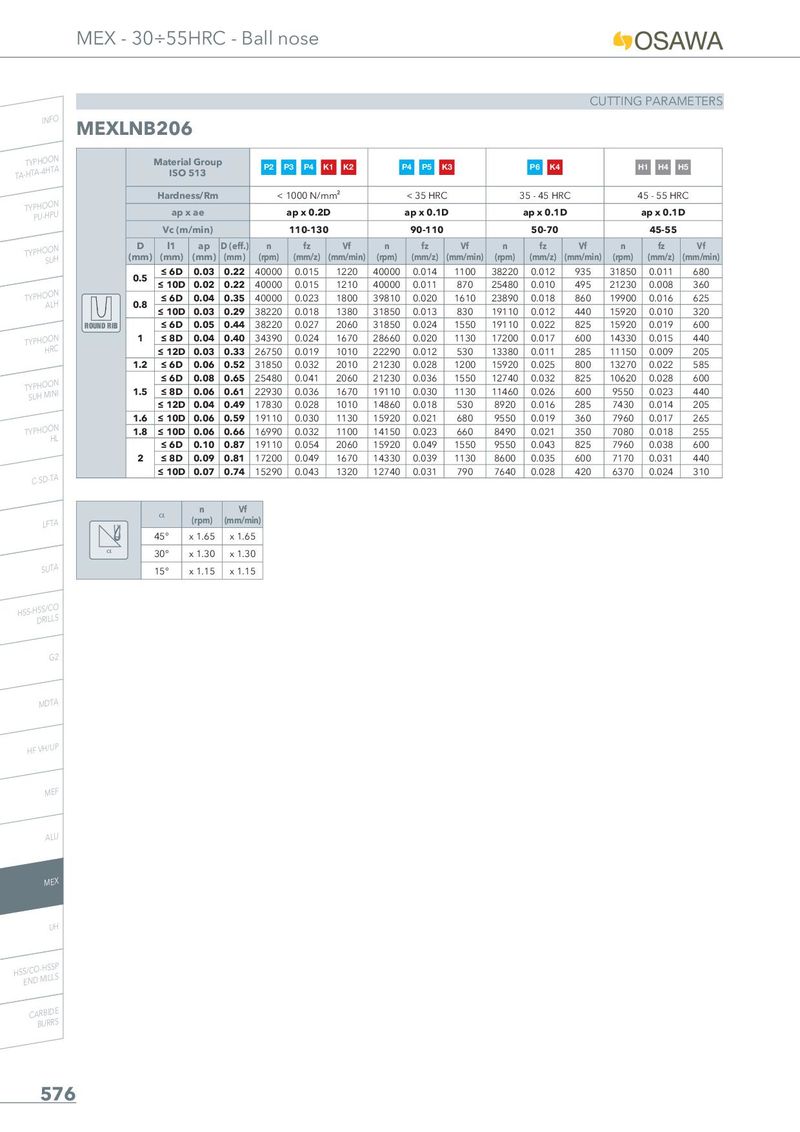

CUTTING PARAMETERS

INFO MEXLNB206

	Materia ISO	l Grou 513	p	P2 P	3 P4 K	1 K2		P4 P5 K	3		P6 K4			H1 H4 H	5
	Hardne	ss/Rm			1000 N/m	m²		< 35 HRC			35 - 45 HR	C		45 - 55 HR	C
	ap x	ae			ap x 0.2	D		ap x 0.1	D		ap x 0.1D			ap x 0.1	D
	Vc (m	/min)			110-130			90-110			50-70			45-55
D (mm)	l1 (mm)	ap (mm)	D (eff.) (mm)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)
0	≤ 6D	0.03	0.22	40000	0.015	1220	40000	0.014	1100	38220	0.012	935	31850	0.011	680
.5	≤ 10D	0.02	0.22	40000	0.015	1210	40000	0.011	870	25480	0.010	495	21230	0.008	360
	≤ 6D	0.04	0.35	40000	0.023	1800	39810	0.020	1610	23890	0.018	860	19900	0.016	625
0.8	≤ 10D	0.03	0.29	38220	0.018	1380	31850	0.013	830	19110	0.012	440	15920	0.010	320
ROUND RIB	≤ 6D	0.05	0.44	38220	0.027	2060	31850	0.024	1550	19110	0.022	825	15920	0.019	600
1	≤ 8D	0.04	0.40	34390	0.024	1670	28660	0.020	1130	17200	0.017	600	14330	0.015	440
	≤ 12D	0.03	0.33	26750	0.019	1010	22290	0.012	530	13380	0.011	285	11150	0.009	205
1.2	≤ 6D	0.06	0.52	31850	0.032	2010	21230	0.028	1200	15920	0.025	800	13270	0.022	585
	≤ 6D	0.08	0.65	25480	0.041	2060	21230	0.036	1550	12740	0.032	825	10620	0.028	600
1.5	≤ 8D	0.06	0.61	22930	0.036	1670	19110	0.030	1130	11460	0.026	600	9550	0.023	440
	≤ 12D	0.04	0.49	17830	0.028	1010	14860	0.018	530	8920	0.016	285	7430	0.014	205
1.6	≤ 10D	0.06	0.59	19110	0.030	1130	15920	0.021	680	9550	0.019	360	7960	0.017	265
1.8	≤ 10D	0.06	0.66	16990	0.032	1100	14150	0.023	660	8490	0.021	350	7080	0.018	255
	≤ 6D	0.10	0.87	19110	0.054	2060	15920	0.049	1550	9550	0.043	825	7960	0.038	600
2	≤ 8D	0.09	0.81	17200	0.049	1670	14330	0.039	1130	8600	0.035	600	7170	0.031	440
	≤ 10D	0.07	0.74	15290	0.043	1320	12740	0.031	790	7640	0.028	420	6370	0.024	310
