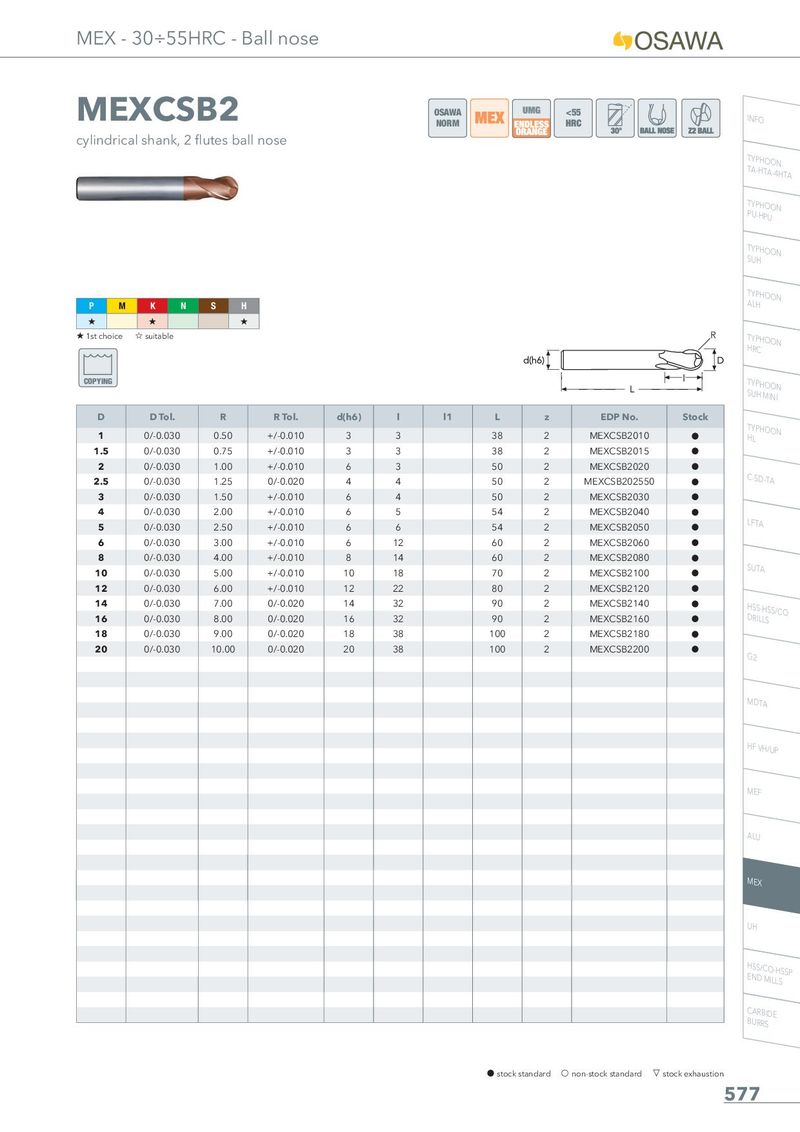

MEX - 30÷55HRC - Ball nose MEXCSB2 OSAWA <55 INFO NORM cylindrical shank, 2 flutes ball nose TTYAP-HHTOAO-4NHTA TPYUP-HHPOUON TSUYPHHOON P M K N S H TAYLPHHOON + + + + 1st choice , suitable R THYRPCHOON COPYING TSUYPHHMOIONIN D D Tol. R R Tol. d(h6) l l1 L z EDP No. Stock 1 0/-0.030 0.50 +/-0.010 3 3 38 2 MEXCSB2010 h THYLPHOON 1.5 0/-0.030 0.75 +/-0.010 3 3 38 2 MEXCSB2015 h 2 0/-0.030 1.00 +/-0.010 6 3 50 2 MEXCSB2020 h 2.5 0/-0.030 1.25 0/-0.020 4 4 50 2 MEXCSB202550 h C-SD-TA 3 0/-0.030 1.50 +/-0.010 6 4 50 2 MEXCSB2030 h 4 0/-0.030 2.00 +/-0.010 6 5 54 2 MEXCSB2040 h 5 0/-0.030 2.50 +/-0.010 6 6 54 2 MEXCSB2050 h LFTA 6 0/-0.030 3.00 +/-0.010 6 12 60 2 MEXCSB2060 h 8 0/-0.030 4.00 +/-0.010 8 14 60 2 MEXCSB2080 h 10 0/-0.030 5.00 +/-0.010 10 18 70 2 MEXCSB2100 h SUTA 12 0/-0.030 6.00 +/-0.010 12 22 80 2 MEXCSB2120 h 14 0/-0.030 7.00 0/-0.020 14 32 90 2 MEXCSB2140 h HDSRSIL-LHSSS/CO 16 0/-0.030 8.00 0/-0.020 16 32 90 2 MEXCSB2160 h 18 0/-0.030 9.00 0/-0.020 18 38 100 2 MEXCSB2180 h 20 0/-0.030 10.00 0/-0.020 20 38 100 2 MEXCSB2200 h G2 MDTA HF VH/UP MEF ALU MEX UH HENSSD/CMOIL-LHSSSP CBUARRRBSIDE h stock standard f non-stock standard m stock exhaustion 577
