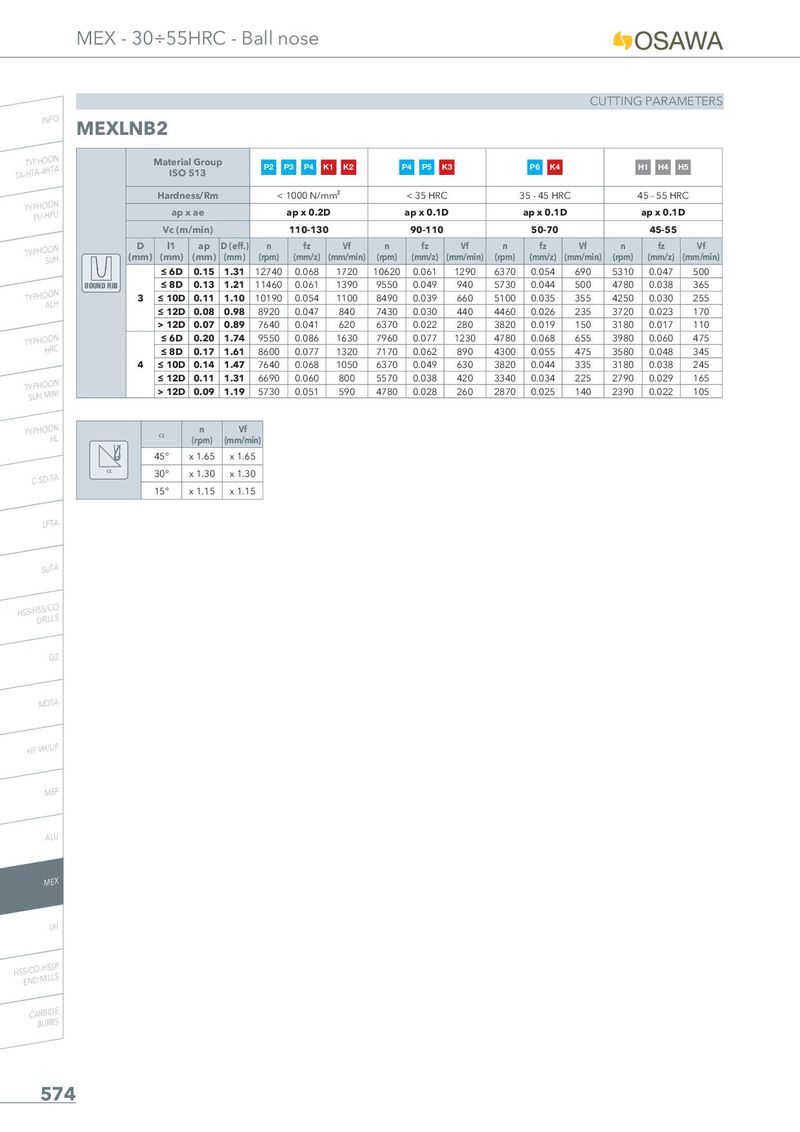

MEX - 30÷55HRC - Ball nose CUTTING PARAMETERS INFO MEXLNB2 TA-THYTPAH-4OHOTNA Material Group P2 P3 P4 K1 K2 P4 P5 K3 P6 K4 H1 H4 H5 ISO 513 Hardness/Rm < 1000 N/mm² < 35 HRC 35 - 45 HRC 45 - 55 HRC TYPPHUO-HOPNU ap x ae ap x 0.2D ap x 0.1D ap x 0.1D ap x 0.1D Vc (m/min) 110-130 90-110 50-70 45-55 TYPHOSOUNH D l1 ap D (eff.) n fz Vf n fz Vf n fz Vf n fz Vf (mm) (mm) (mm) (mm) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) ≤ 6D 0.15 1.31 12740 0.068 1720 10620 0.061 1290 6370 0.054 690 5310 0.047 500 ROUND RIB ≤ 8D 0.13 1.21 11460 0.061 1390 9550 0.049 940 5730 0.044 500 4780 0.038 365 TYPHOAOLNH 3 ≤ 10D 0.11 1.10 10190 0.054 1100 8490 0.039 660 5100 0.035 355 4250 0.030 255 ≤ 12D 0.08 0.98 8920 0.047 840 7430 0.030 440 4460 0.026 235 3720 0.023 170 > 12D 0.07 0.89 7640 0.041 620 6370 0.022 280 3820 0.019 150 3180 0.017 110 TYPHOHORNC ≤ 6D 0.20 1.74 9550 0.086 1630 7960 0.077 1230 4780 0.068 655 3980 0.060 475 ≤ 8D 0.17 1.61 8600 0.077 1320 7170 0.062 890 4300 0.055 475 3580 0.048 345 4 ≤ 10D 0.14 1.47 7640 0.068 1050 6370 0.049 630 3820 0.044 335 3180 0.038 245 TSYUPHHOMOINNI ≤ 12D 0.11 1.31 6690 0.060 800 5570 0.038 420 3340 0.034 225 2790 0.029 165 > 12D 0.09 1.19 5730 0.051 590 4780 0.028 260 2870 0.025 140 2390 0.022 105 TYPHOOHNL _ n Vf (rpm) (mm/min) 45° x 1.65 x 1.65 C-SD-TA _ 30° x 1.30 x 1.30 15° x 1.15 x 1.15 LFTA SUTA HSS-HDSSR/ILCLOS G2 MDTA HF VH/UP MEF ALU MEX UH HSSE/NCDO-MHISLSLPS CARBIDE BURRS 574
