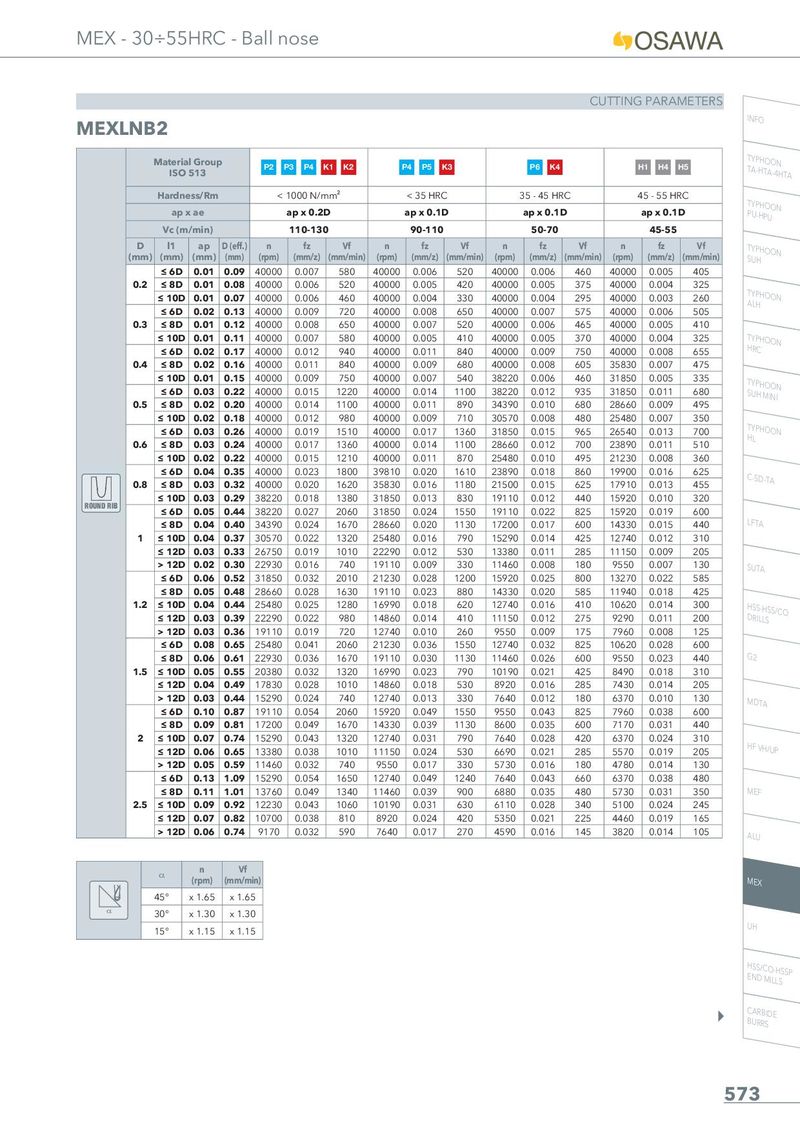

MEX - 30÷55HRC - Ball nose CUTTING PARAMETERS MEXLNB2 INFO Material Group P2 P3 P4 K1 K2 P4 P5 K3 P6 K4 H1 H4 H5 TTYAP-HHTOAO-4NHTA ISO 513 Hardness/Rm < 1000 N/mm² < 35 HRC 35 - 45 HRC 45 - 55 HRC TPYUP-HHPOUON ap x ae ap x 0.2D ap x 0.1D ap x 0.1D ap x 0.1D Vc (m/min) 110-130 90-110 50-70 45-55 D l1 ap D (eff.) n fz Vf n fz Vf n fz Vf n fz Vf TSUYPHHOON (mm) (mm) (mm) (mm) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) ≤ 6D 0.01 0.09 40000 0.007 580 40000 0.006 520 40000 0.006 460 40000 0.005 405 0.2 ≤ 8D 0.01 0.08 40000 0.006 520 40000 0.005 420 40000 0.005 375 40000 0.004 325 TAYLPHHOON ≤ 10D 0.01 0.07 40000 0.006 460 40000 0.004 330 40000 0.004 295 40000 0.003 260 ≤ 6D 0.02 0.13 40000 0.009 720 40000 0.008 650 40000 0.007 575 40000 0.006 505 0.3 ≤ 8D 0.01 0.12 40000 0.008 650 40000 0.007 520 40000 0.006 465 40000 0.005 410 ≤ 10D 0.01 0.11 40000 0.007 580 40000 0.005 410 40000 0.005 370 40000 0.004 325 THYRPCHOON ≤ 6D 0.02 0.17 40000 0.012 940 40000 0.011 840 40000 0.009 750 40000 0.008 655 0.4 ≤ 8D 0.02 0.16 40000 0.011 840 40000 0.009 680 40000 0.008 605 35830 0.007 475 ≤ 10D 0.01 0.15 40000 0.009 750 40000 0.007 540 38220 0.006 460 31850 0.005 335 TSUYPHHMOIONIN ≤ 6D 0.03 0.22 40000 0.015 1220 40000 0.014 1100 38220 0.012 935 31850 0.011 680 0.5 ≤ 8D 0.02 0.20 40000 0.014 1100 40000 0.011 890 34390 0.010 680 28660 0.009 495 ≤ 10D 0.02 0.18 40000 0.012 980 40000 0.009 710 30570 0.008 480 25480 0.007 350 ≤ 6D 0.03 0.26 40000 0.019 1510 40000 0.017 1360 31850 0.015 965 26540 0.013 700 THYLPHOON 0.6 ≤ 8D 0.03 0.24 40000 0.017 1360 40000 0.014 1100 28660 0.012 700 23890 0.011 510 ≤ 10D 0.02 0.22 40000 0.015 1210 40000 0.011 870 25480 0.010 495 21230 0.008 360 ≤ 6D 0.04 0.35 40000 0.023 1800 39810 0.020 1610 23890 0.018 860 19900 0.016 625 C-SD-TA 0.8 ≤ 8D 0.03 0.32 40000 0.020 1620 35830 0.016 1180 21500 0.015 625 17910 0.013 455 ROUND RIB ≤ 10D 0.03 0.29 38220 0.018 1380 31850 0.013 830 19110 0.012 440 15920 0.010 320 ≤ 6D 0.05 0.44 38220 0.027 2060 31850 0.024 1550 19110 0.022 825 15920 0.019 600 ≤ 8D 0.04 0.40 34390 0.024 1670 28660 0.020 1130 17200 0.017 600 14330 0.015 440 LFTA 1 ≤ 10D 0.04 0.37 30570 0.022 1320 25480 0.016 790 15290 0.014 425 12740 0.012 310 ≤ 12D 0.03 0.33 26750 0.019 1010 22290 0.012 530 13380 0.011 285 11150 0.009 205 > 12D 0.02 0.30 22930 0.016 740 19110 0.009 330 11460 0.008 180 9550 0.007 130 SUTA ≤ 6D 0.06 0.52 31850 0.032 2010 21230 0.028 1200 15920 0.025 800 13270 0.022 585 ≤ 8D 0.05 0.48 28660 0.028 1630 19110 0.023 880 14330 0.020 585 11940 0.018 425 1.2 ≤ 10D 0.04 0.44 25480 0.025 1280 16990 0.018 620 12740 0.016 410 10620 0.014 300 HDSRSIL-LHSSS/CO ≤ 12D 0.03 0.39 22290 0.022 980 14860 0.014 410 11150 0.012 275 9290 0.011 200 > 12D 0.03 0.36 19110 0.019 720 12740 0.010 260 9550 0.009 175 7960 0.008 125 ≤ 6D 0.08 0.65 25480 0.041 2060 21230 0.036 1550 12740 0.032 825 10620 0.028 600 ≤ 8D 0.06 0.61 22930 0.036 1670 19110 0.030 1130 11460 0.026 600 9550 0.023 440 G2 1.5 ≤ 10D 0.05 0.55 20380 0.032 1320 16990 0.023 790 10190 0.021 425 8490 0.018 310 ≤ 12D 0.04 0.49 17830 0.028 1010 14860 0.018 530 8920 0.016 285 7430 0.014 205 > 12D 0.03 0.44 15290 0.024 740 12740 0.013 330 7640 0.012 180 6370 0.010 130 MDTA ≤ 6D 0.10 0.87 19110 0.054 2060 15920 0.049 1550 9550 0.043 825 7960 0.038 600 ≤ 8D 0.09 0.81 17200 0.049 1670 14330 0.039 1130 8600 0.035 600 7170 0.031 440 2 ≤ 10D 0.07 0.74 15290 0.043 1320 12740 0.031 790 7640 0.028 420 6370 0.024 310 HF VH/UP ≤ 12D 0.06 0.65 13380 0.038 1010 11150 0.024 530 6690 0.021 285 5570 0.019 205 > 12D 0.05 0.59 11460 0.032 740 9550 0.017 330 5730 0.016 180 4780 0.014 130 ≤ 6D 0.13 1.09 15290 0.054 1650 12740 0.049 1240 7640 0.043 660 6370 0.038 480 ≤ 8D 0.11 1.01 13760 0.049 1340 11460 0.039 900 6880 0.035 480 5730 0.031 350 MEF 2.5 ≤ 10D 0.09 0.92 12230 0.043 1060 10190 0.031 630 6110 0.028 340 5100 0.024 245 ≤ 12D 0.07 0.82 10700 0.038 810 8920 0.024 420 5350 0.021 225 4460 0.019 165 > 12D 0.06 0.74 9170 0.032 590 7640 0.017 270 4590 0.016 145 3820 0.014 105 ALU _ n Vf (rpm) (mm/min) MEX 45° x 1.65 x 1.65 _ 30° x 1.30 x 1.30 15° x 1.15 x 1.15 UH HENSSD/CMOIL-LHSSSP CBUARRRBSIDE 573
