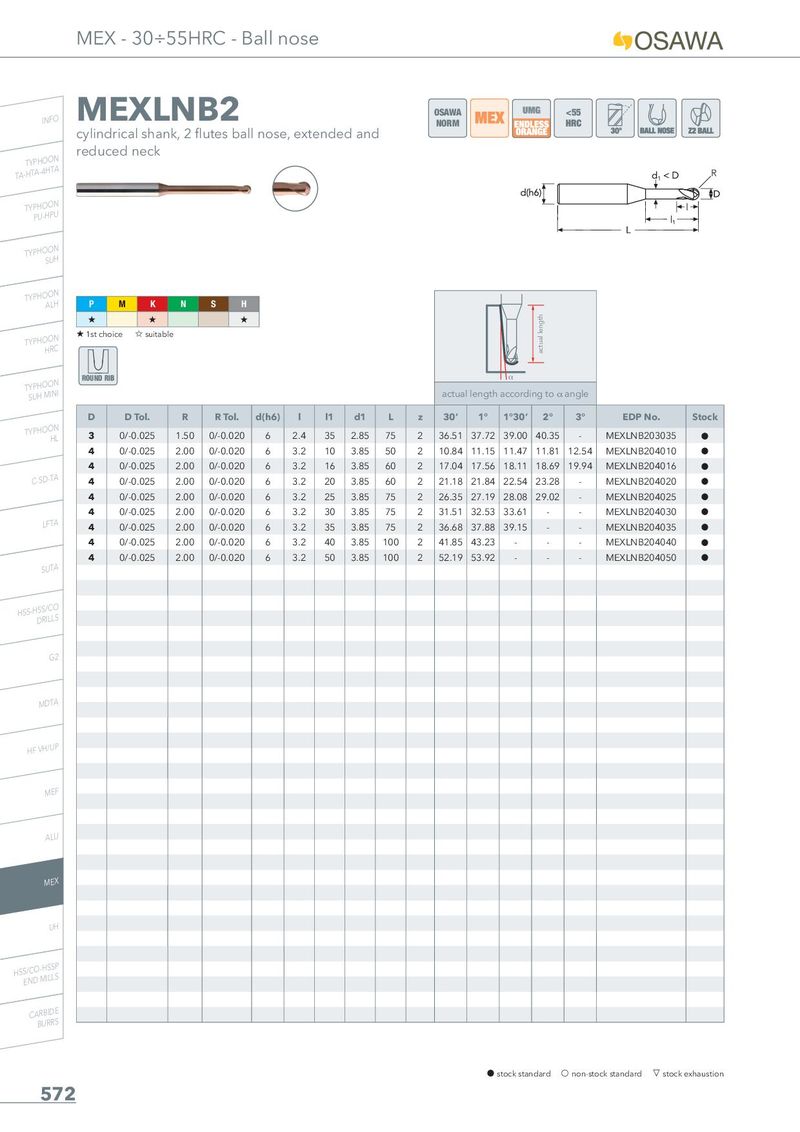

MEX - 30÷55HRC - Ball nose INFO MEXLNB2 OSAWA <55 NORM cylindrical shank, 2 flutes ball nose, extended and TA-THYTPAH-4OHOTNA reduced neck R TYPPHUO-HOPNU TYPHOSOUNH TYPHOAOLNH P M K N S H + + + actual length TYPHOHORNC + 1st choice , suitable TSYUPHHOMOINNI ROUND RIB α actual length according to _ angle D D Tol. R R Tol. d(h6) l l1 d1 L z 30’ 1° 1°30’ 2° 3° EDP No. Stock TYPHOOHNL 3 0/-0.025 1.50 0/-0.020 6 2.4 35 2.85 75 2 36.51 37.72 39.00 40.35 - MEXLNB203035 h 4 0/-0.025 2.00 0/-0.020 6 3.2 10 3.85 50 2 10.84 11.15 11.47 11.81 12.54 MEXLNB204010 h 4 0/-0.025 2.00 0/-0.020 6 3.2 16 3.85 60 2 17.04 17.56 18.11 18.69 19.94 MEXLNB204016 h C-SD-TA 4 0/-0.025 2.00 0/-0.020 6 3.2 20 3.85 60 2 21.18 21.84 22.54 23.28 - MEXLNB204020 h 4 0/-0.025 2.00 0/-0.020 6 3.2 25 3.85 75 2 26.35 27.19 28.08 29.02 - MEXLNB204025 h 4 0/-0.025 2.00 0/-0.020 6 3.2 30 3.85 75 2 31.51 32.53 33.61 - - MEXLNB204030 h LFTA 4 0/-0.025 2.00 0/-0.020 6 3.2 35 3.85 75 2 36.68 37.88 39.15 - - MEXLNB204035 h 4 0/-0.025 2.00 0/-0.020 6 3.2 40 3.85 100 2 41.85 43.23 - - - MEXLNB204040 h 4 0/-0.025 2.00 0/-0.020 6 3.2 50 3.85 100 2 52.19 53.92 - - - MEXLNB204050 h SUTA HSS-HDSSR/ILCLOS G2 MDTA HF VH/UP MEF ALU MEX UH HSSE/NCDO-MHISLSLPS CARBIDE BURRS h stock standard f non-stock standard m stock exhaustion 572
