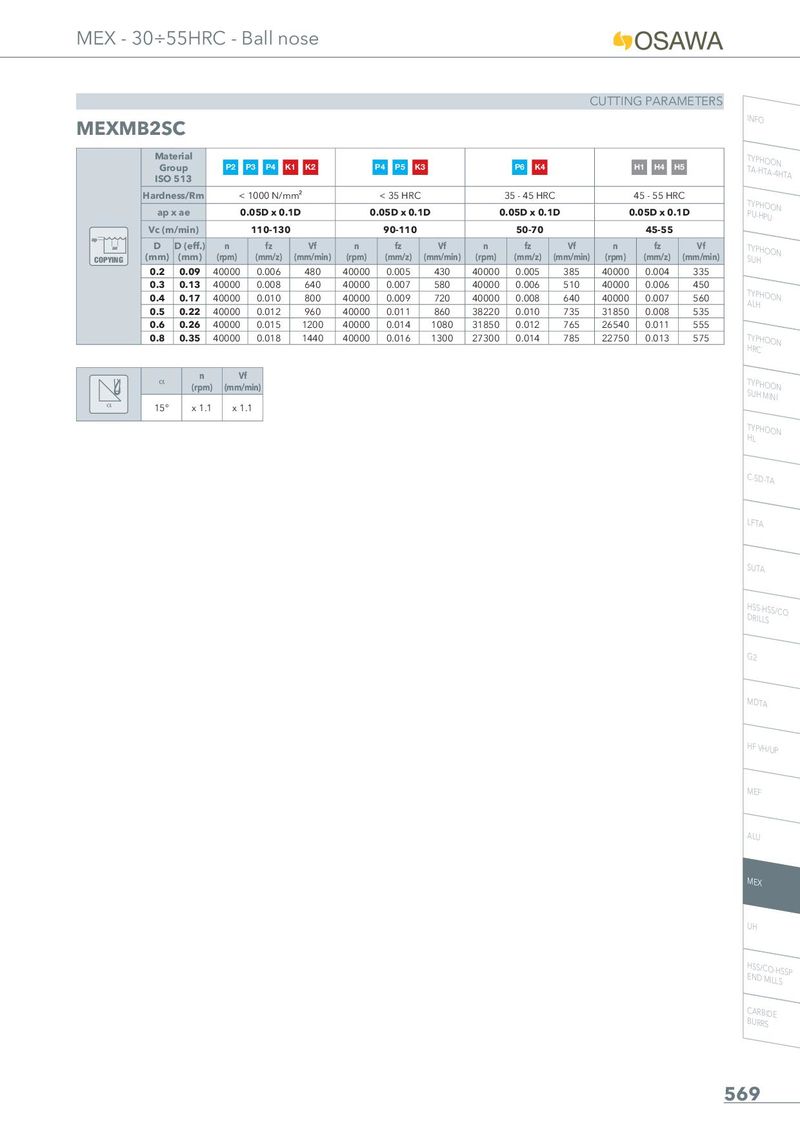

CUTTING PARAMETERS

MEXMB2SC INFO

	Mat Gro ISO	erial up 513	P2	P3 P4 K	1 K2		P4 P5 K	3		P6 K4			H1 H4 H	5
H	ardn	ess/Rm		1000 N/m	m²		< 35 HRC			35 - 45 HRC			45 - 55 HR	C
	ap	x ae	0	.05D x 0.1	D	0	.05D x 0.1	D	0.	05D x 0.1	D	0	.05D x 0.	1D
	Vc (m	/min)		110-130			90-110			50-70			45-55
COPYING ae ap (	D mm)	D (eff.) (mm)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)
	0.2	0.09	40000	0.006	480	40000	0.005	430	40000	0.005	385	40000	0.004	335
	0.3	0.13	40000	0.008	640	40000	0.007	580	40000	0.006	510	40000	0.006	450
	0.4	0.17	40000	0.010	800	40000	0.009	720	40000	0.008	640	40000	0.007	560
	0.5	0.22	40000	0.012	960	40000	0.011	860	38220	0.010	735	31850	0.008	535
	0.6	0.26	40000	0.015	1200	40000	0.014	1080	31850	0.012	765	26540	0.011	555
	0.8	0.35	40000	0.018	1440	40000	0.016	1300	27300	0.014	785	22750	0.013	575

TYPHOON

TYPHOON ALH

n Vf (rpm) (mm/min)

_ 15° x 1.1 x 1.1

HRC
