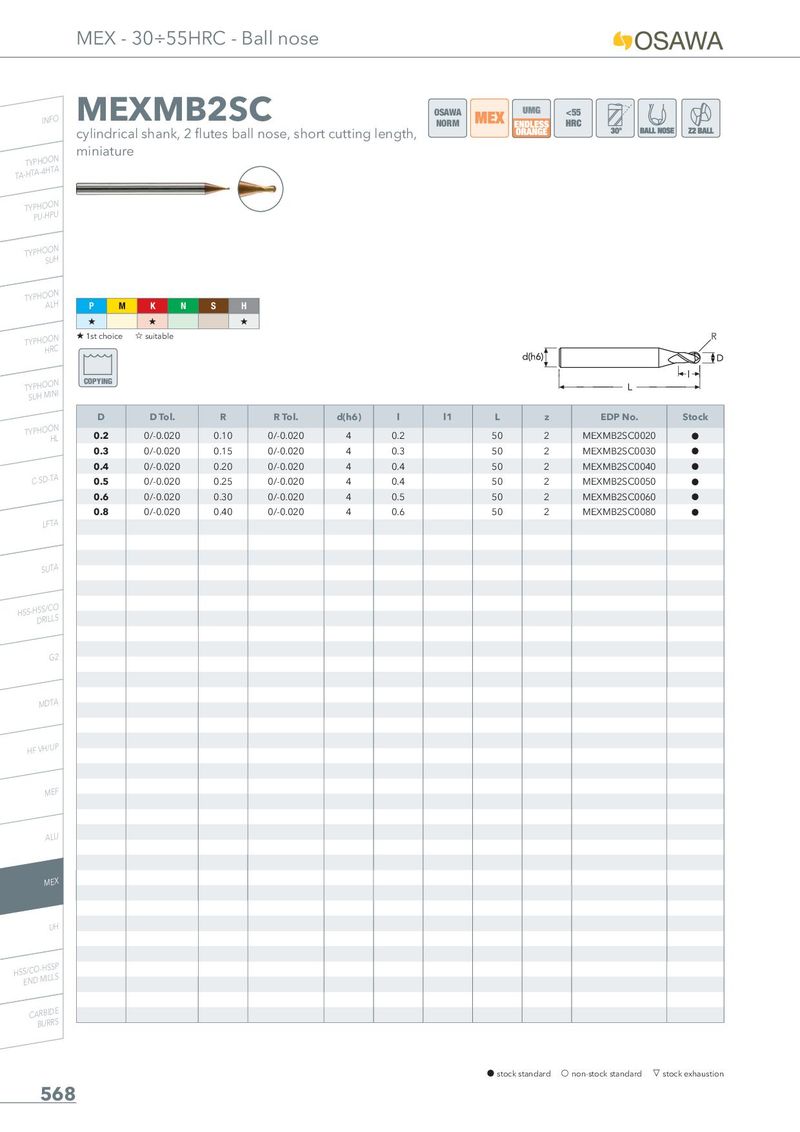

MEXMB2SC
OSAWA <55 NORM cylindrical shank, 2 flutes ball nose, short cutting length,
miniature
| P M | K N | S H | ||||||||
| � | � | � | ||||||||
| �1st choice | �suitable | R | ||||||||
| COPYING | ||||||||||
| D | D Tol. | R | R Tol. | d(h6) | l | l1 | L | z | EDP No. | Stock |
| 0.2 | 0/-0.020 | 0.10 | 0/-0.020 | 4 | 0.2 | 50 | 2 | MEXMB2SC0020 | h | |
| 0.3 | 0/-0.020 | 0.15 | 0/-0.020 | 4 | 0.3 | 50 | 2 | MEXMB2SC0030 | h | |
| 0.4 | 0/-0.020 | 0.20 | 0/-0.020 | 4 | 0.4 | 50 | 2 | MEXMB2SC0040 | h | |
| 0.5 | 0/-0.020 | 0.25 | 0/-0.020 | 4 | 0.4 | 50 | 2 | MEXMB2SC0050 | h | |
| 0.6 | 0/-0.020 | 0.30 | 0/-0.020 | 4 | 0.5 | 50 | 2 | MEXMB2SC0060 | h | |
| 0.8 | 0/-0.020 | 0.40 | 0/-0.020 | 4 | 0.6 | 50 | 2 | MEXMB2SC0080 | h |
