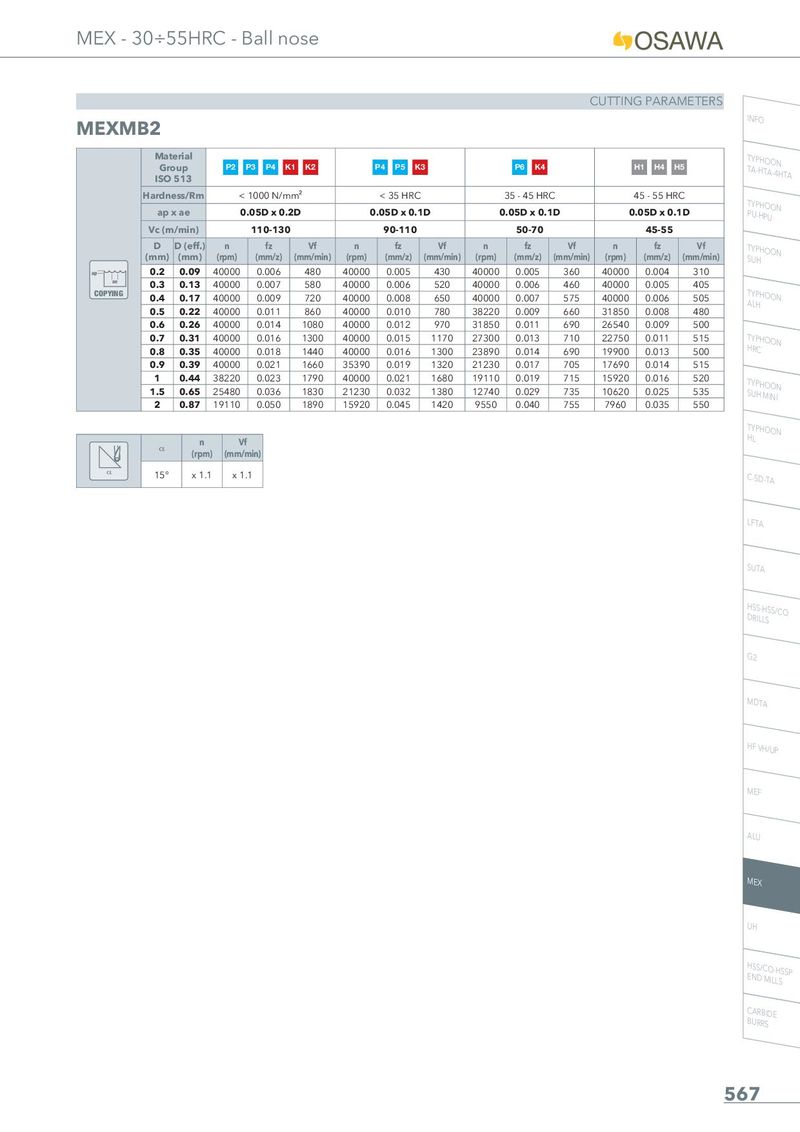

CUTTING PARAMETERS

MEXMB2 INFO

	Mat Gro ISO	erial up 513	P2	P3 P4 K	1 K2		P4 P5 K	3		P6 K4			H1 H4 H	5
H	ardn	ess/Rm		1000 N/m	m²		< 35 HRC		3	5 - 45 HR	C		45 - 55 HR	C
	ap	x ae	0	.05D x 0.	2D	0	.05D x 0.1	D	0.	05D x 0.1	D	0	.05D x 0.	1D
	Vc (m	/min)		110-130			90-110			50-70			45-55
(	D mm)	D (eff.) (mm)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)
ap	0.2	0.09	40000	0.006	480	40000	0.005	430	40000	0.005	360	40000	0.004	310
ae	0.3	0.13	40000	0.007	580	40000	0.006	520	40000	0.006	460	40000	0.005	405
COPYING	0.4	0.17	40000	0.009	720	40000	0.008	650	40000	0.007	575	40000	0.006	505
	0.5	0.22	40000	0.011	860	40000	0.010	780	38220	0.009	660	31850	0.008	480
	0.6	0.26	40000	0.014	1080	40000	0.012	970	31850	0.011	690	26540	0.009	500
	0.7	0.31	40000	0.016	1300	40000	0.015	1170	27300	0.013	710	22750	0.011	515
	0.8	0.35	40000	0.018	1440	40000	0.016	1300	23890	0.014	690	19900	0.013	500
	0.9	0.39	40000	0.021	1660	35390	0.019	1320	21230	0.017	705	17690	0.014	515
	1	0.44	38220	0.023	1790	40000	0.021	1680	19110	0.019	715	15920	0.016	520
	1.5	0.65	25480	0.036	1830	21230	0.032	1380	12740	0.029	735	10620	0.025	535
	2	0.87	19110	0.050	1890	15920	0.045	1420	9550	0.040	755	7960	0.035	550

TYPHOON

ALH

TYPHOON

n Vf (rpm) (mm/min)

_ 15° x 1.1 x 1.1
