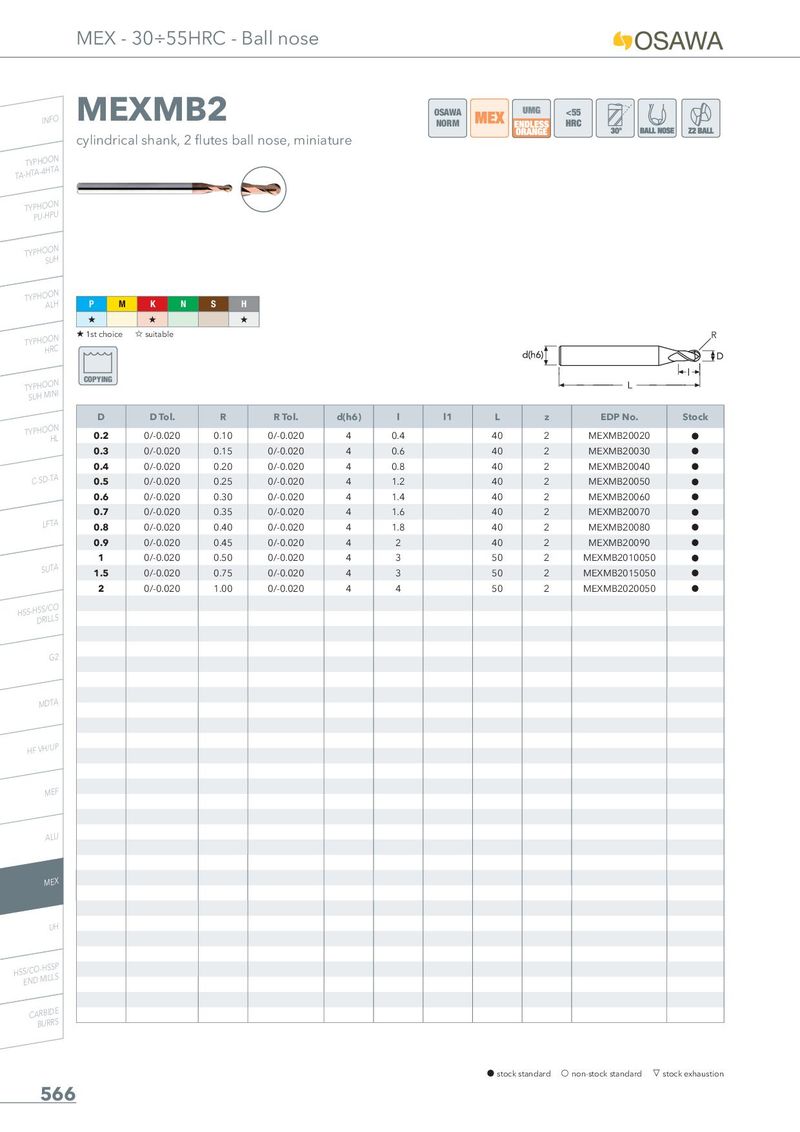

Общий каталог Osawa 2018 - страница 568

MEX - 30÷55HRC - Ball nose INFO MEXMB2 OSAWA <55 NORM cylindrical shank, 2 flutes ball nose, miniature TA-THYTPAH-4OHOTNA TYPPHUO-HOPNU TYPHOSOUNH TYPHOAOLNH P M K N S H + + + TYPHOHORNC + 1st choice , suitable R TSYUPHHOMOINNI COPYING D D Tol. R R Tol. d(h6) l l1 L z EDP No. Stock TYPHOOHNL 0.2 0/-0.020 0.10 0/-0.020 4 0.4 40 2 MEXMB20020 h 0.3 0/-0.020 0.15 0/-0.020 4 0.6 40 2 MEXMB20030 h 0.4 0/-0.020 0.20 0/-0.020 4 0.8 40 2 MEXMB20040 h C-SD-TA 0.5 0/-0.020 0.25 0/-0.020 4 1.2 40 2 MEXMB20050 h 0.6 0/-0.020 0.30 0/-0.020 4 1.4 40 2 MEXMB20060 h 0.7 0/-0.020 0.35 0/-0.020 4 1.6 40 2 MEXMB20070 h LFTA 0.8 0/-0.020 0.40 0/-0.020 4 1.8 40 2 MEXMB20080 h 0.9 0/-0.020 0.45 0/-0.020 4 2 40 2 MEXMB20090 h 1 0/-0.020 0.50 0/-0.020 4 3 50 2 MEXMB2010050 h SUTA 1.5 0/-0.020 0.75 0/-0.020 4 3 50 2 MEXMB2015050 h 2 0/-0.020 1.00 0/-0.020 4 4 50 2 MEXMB2020050 h HSS-HDSSR/ILCLOS G2 MDTA HF VH/UP MEF ALU MEX UH HSSE/NCDO-MHISLSLPS CARBIDE BURRS h stock standard f non-stock standard m stock exhaustion 566
