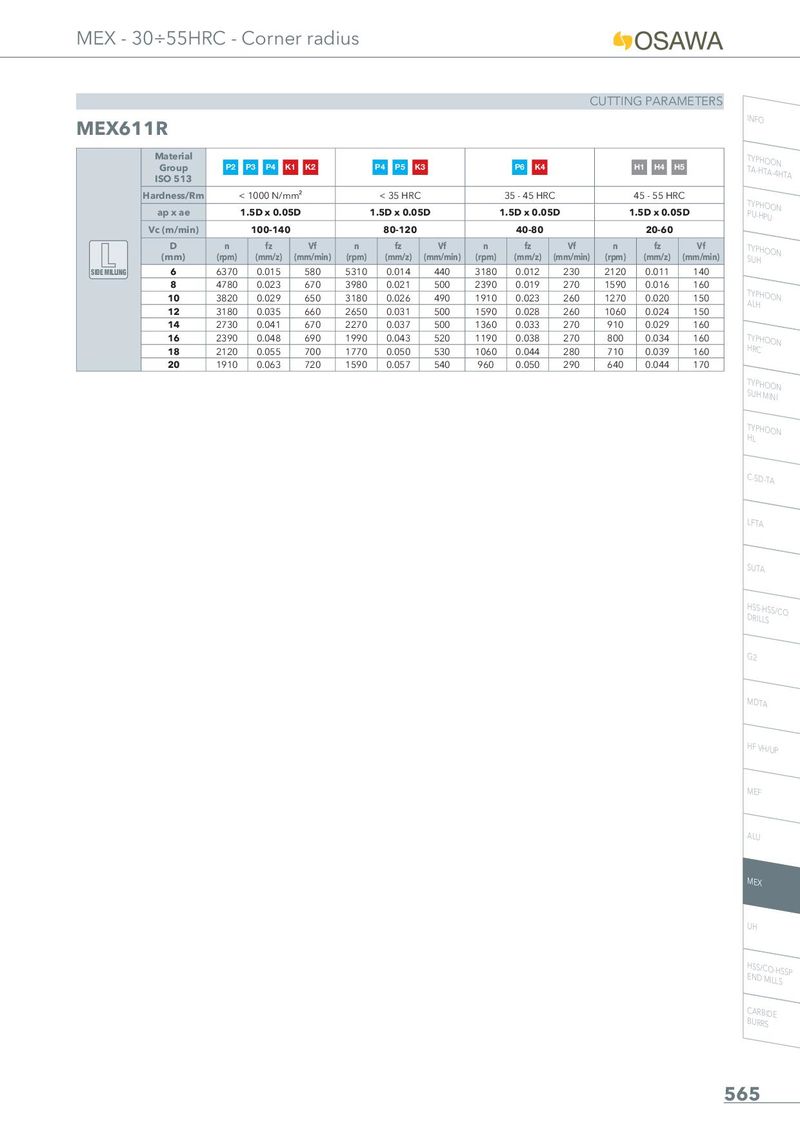

CUTTING PARAMETERS

MEX611R INFO

M IS	aterial Group O 513	P2	P3 P4 K	1 K2		P4 P5 K	3		P6 K4			H1 H4 H	5
Har	dness/Rm		1000 N/m	m²		< 35 HRC			35 - 45 HR	C		45 - 55 HR	C
a	pxae	1	.5D x 0.05	D	1	.5D x 0.05	D	1	.5D x 0.05	D	1	.5D x 0.0	5D
Vc	(m/min)		100-140			80-120			40-80			20-60
	D (mm)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)
SIDE MILLING	6	6370	0.015	580	5310	0.014	440	3180	0.012	230	2120	0.011	140
	8	4780	0.023	670	3980	0.021	500	2390	0.019	270	1590	0.016	160
	10	3820	0.029	650	3180	0.026	490	1910	0.023	260	1270	0.020	150
	12	3180	0.035	660	2650	0.031	500	1590	0.028	260	1060	0.024	150
	14	2730	0.041	670	2270	0.037	500	1360	0.033	270	910	0.029	160
	16	2390	0.048	690	1990	0.043	520	1190	0.038	270	800	0.034	160
	18	2120	0.055	700	1770	0.050	530	1060	0.044	280	710	0.039	160
	20	1910	0.063	720	1590	0.057	540	960	0.050	290	640	0.044	170
