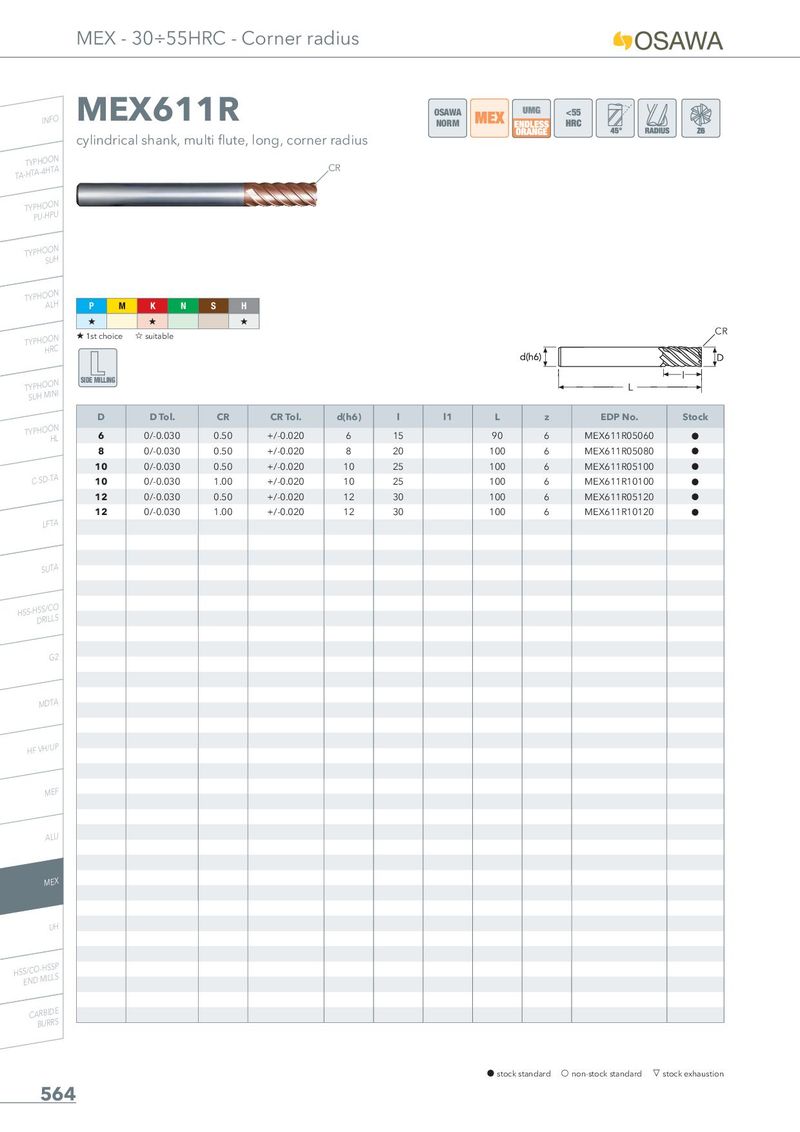

MEX611R
OSAWA <55 NORM
cylindrical shank, multi flute, long, corner radius
CR
| P M | K N | S H | ||||||||
| � | � | � | ||||||||
| �1st choice | �suitable | CR | ||||||||
| SIDE MILLING | ||||||||||
| D | D Tol. | CR | CR Tol. | d(h6) | l | l1 | L | z | EDP No. | Stock |
| 6 | 0/-0.030 | 0.50 | +/-0.020 | 6 | 15 | 90 | 6 | MEX611R05060 | h | |
| 8 | 0/-0.030 | 0.50 | +/-0.020 | 8 | 20 | 100 | 6 | MEX611R05080 | h | |
| 10 | 0/-0.030 | 0.50 | +/-0.020 | 10 | 25 | 100 | 6 | MEX611R05100 | h | |
| 10 | 0/-0.030 | 1.00 | +/-0.020 | 10 | 25 | 100 | 6 | MEX611R10100 | h | |
| 12 | 0/-0.030 | 0.50 | +/-0.020 | 12 | 30 | 100 | 6 | MEX611R05120 | h | |
| 12 | 0/-0.030 | 1.00 | +/-0.020 | 12 | 30 | 100 | 6 | MEX611R10120 | h |
