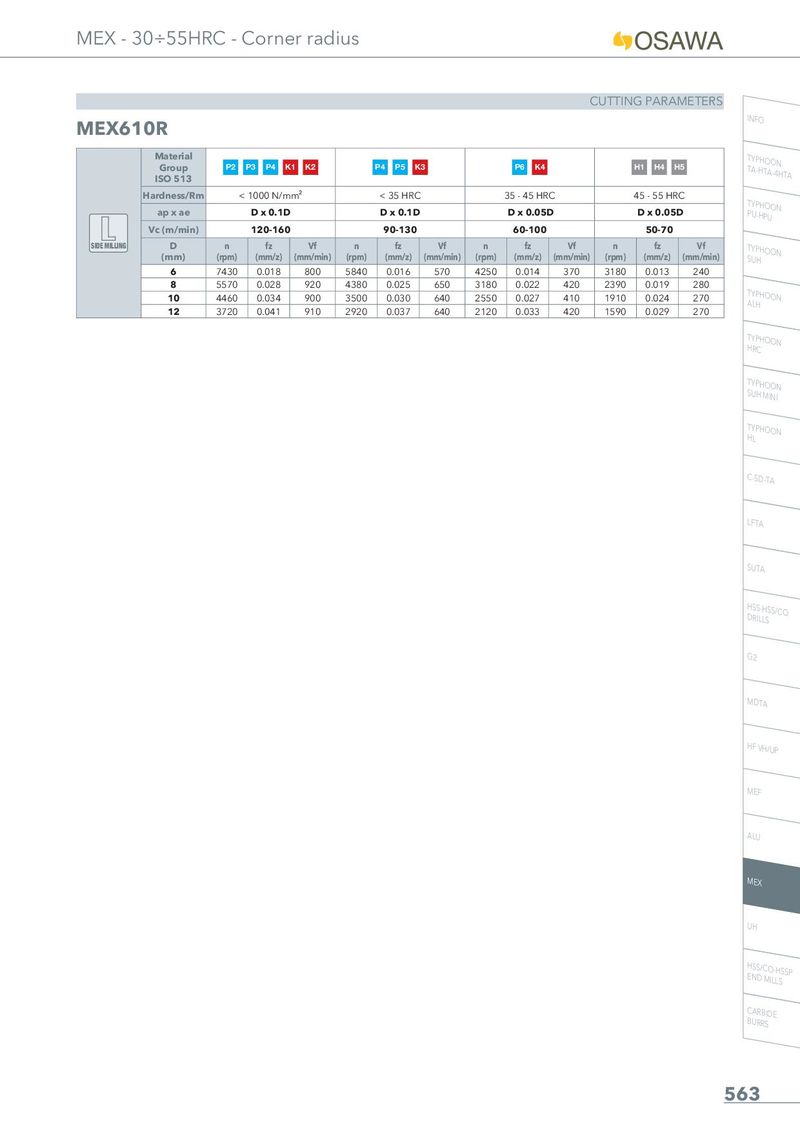

MEX - 30÷55HRC - Corner radius CUTTING PARAMETERS MEX610R INFO Material TTYAP-HHTOAO-4NHTA Group P2 P3 P4 K1 K2 P4 P5 K3 P6 K4 H1 H4 H5 ISO 513 Hardness/Rm < 1000 N/mm² < 35 HRC 35 - 45 HRC 45 - 55 HRC TPYUP-HHPOUON ap x ae D x 0.1D D x 0.1D D x 0.05D D x 0.05D Vc (m/min) 120-160 90-130 60-100 50-70 SIDE MILLING D n fz Vf n fz Vf n fz Vf n fz Vf TSUYPHHOON (mm) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) (rpm) (mm/z) (mm/min) 6 7430 0.018 800 5840 0.016 570 4250 0.014 370 3180 0.013 240 8 5570 0.028 920 4380 0.025 650 3180 0.022 420 2390 0.019 280 TAYLPHHOON 10 4460 0.034 900 3500 0.030 640 2550 0.027 410 1910 0.024 270 12 3720 0.041 910 2920 0.037 640 2120 0.033 420 1590 0.029 270 THYRPCHOON TSUYPHHMOIONIN THYLPHOON C-SD-TA LFTA SUTA HDSRSIL-LHSSS/CO G2 MDTA HF VH/UP MEF ALU MEX UH HENSSD/CMOIL-LHSSSP CBUARRRBSIDE 563
