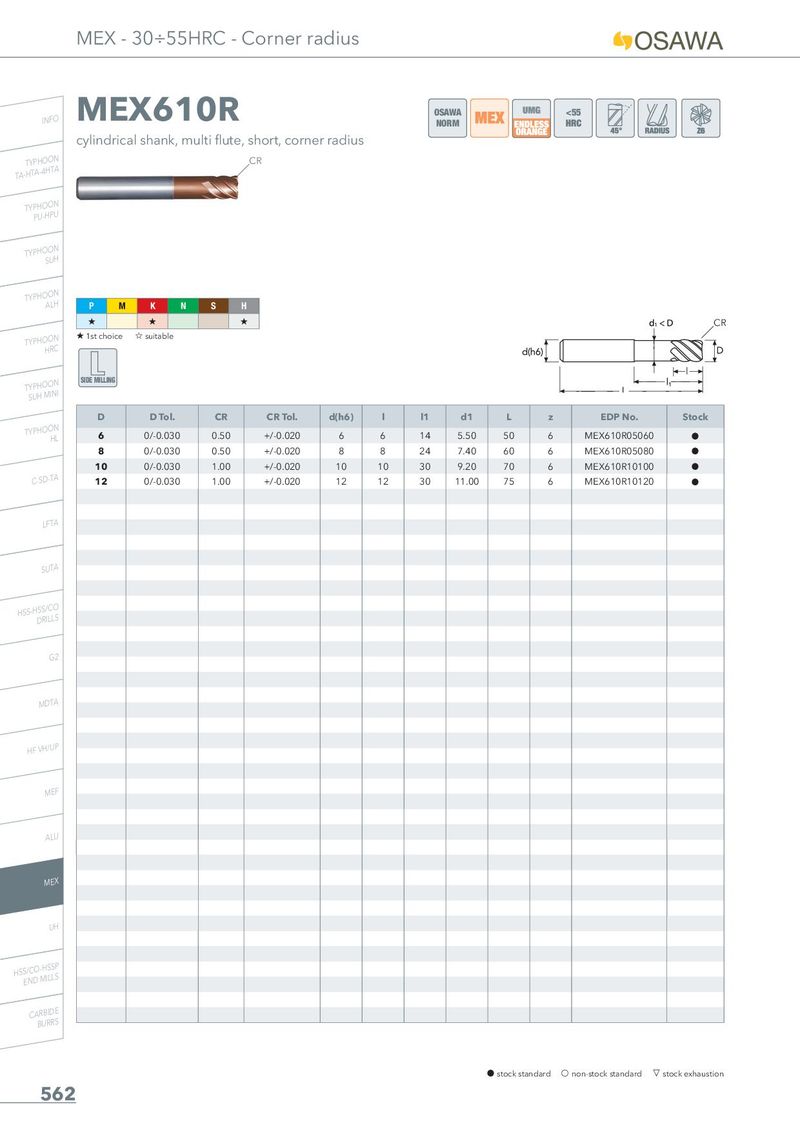

MEX610R
OSAWA <55 NORM
cylindrical shank, multi flute, short, corner radius
CR
| P M | K N | S H | ||||||||||
| � | � | � | CR | |||||||||
| �1st choice SIDE MILLING | �suitable | |||||||||||
| D | D Tol. | CR | CR Tol. | d(h6) | l | l1 | d1 | L | z | EDP No. | Stock | |
| 6 | 0/-0.030 | 0.50 | +/-0.020 | 6 | 6 | 14 | 5.50 | 50 | 6 | MEX610R05060 | h | |
| 8 | 0/-0.030 | 0.50 | +/-0.020 | 8 | 8 | 24 | 7.40 | 60 | 6 | MEX610R05080 | h | |
| 10 | 0/-0.030 | 1.00 | +/-0.020 | 10 | 10 | 30 | 9.20 | 70 | 6 | MEX610R10100 | h | |
| 12 | 0/-0.030 | 1.00 | +/-0.020 | 12 | 12 | 30 | 11.00 | 75 | 6 | MEX610R10120 | h |
