TYPHOON TA-HTA-4HTA
TYPHOON PU-HPU
TYPHOON SUH

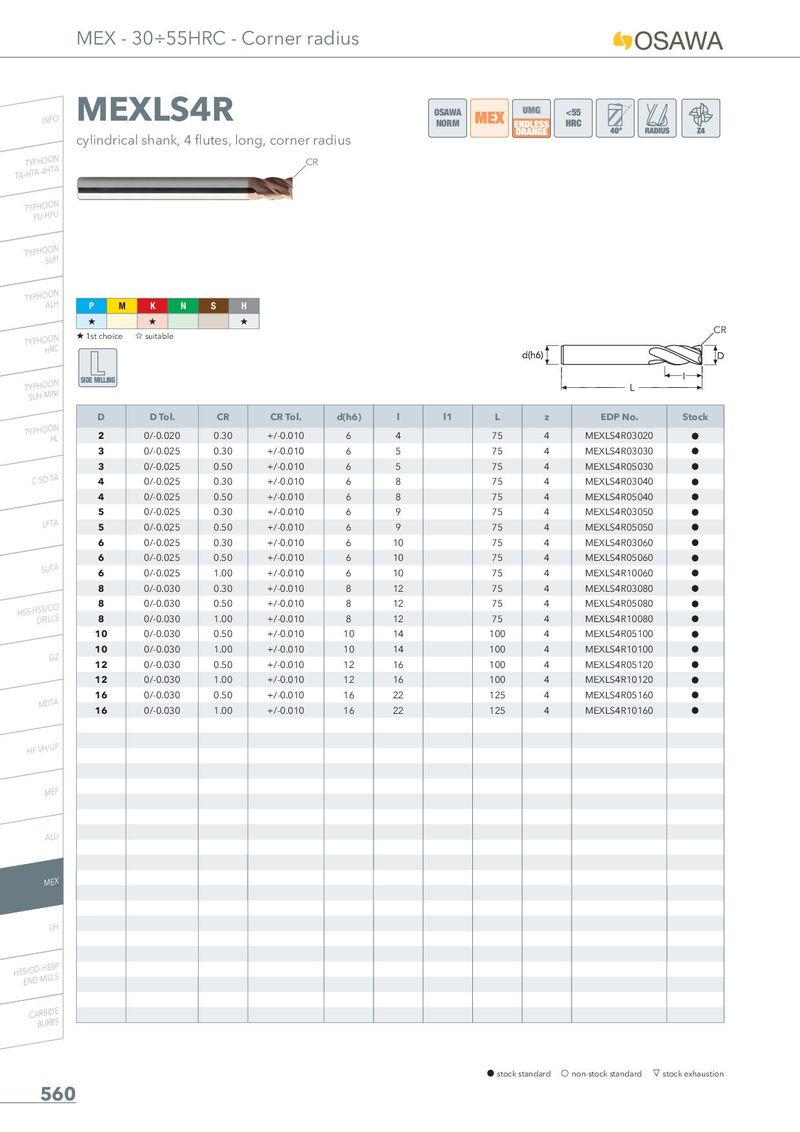

MEXLS4R
OSAWA <55 NORM
cylindrical shank, 4 flutes, long, corner radius
CR
| P M K | N | S | H |
| � � | � | ||
| �1st choice�suitable SIDE MILLING |
ALH CR TYPHOON HRC
TYPHOON SUH MINI
| D | D Tol. | CR | CR Tol. | d(h6) | l l | 1 L | z | EDP No. | Stock |
| 2 | 0/-0.020 | 0.30 | +/-0.010 | 6 | 4 | 75 | 4 | MEXLS4R03020 | h |
| 3 | 0/-0.025 | 0.30 | +/-0.010 | 6 | 5 | 75 | 4 | MEXLS4R03030 | h |
| 3 | 0/-0.025 | 0.50 | +/-0.010 | 6 | 5 | 75 | 4 | MEXLS4R05030 | h |
| 4 | 0/-0.025 | 0.30 | +/-0.010 | 6 | 8 | 75 | 4 | MEXLS4R03040 | h |
| 4 | 0/-0.025 | 0.50 | +/-0.010 | 6 | 8 | 75 | 4 | MEXLS4R05040 | h |
| 5 | 0/-0.025 | 0.30 | +/-0.010 | 6 | 9 | 75 | 4 | MEXLS4R03050 | h |
| 5 | 0/-0.025 | 0.50 | +/-0.010 | 6 | 9 | 75 | 4 | MEXLS4R05050 | h |
| 6 | 0/-0.025 | 0.30 | +/-0.010 | 6 | 10 | 75 | 4 | MEXLS4R03060 | h |
| 6 | 0/-0.025 | 0.50 | +/-0.010 | 6 | 10 | 75 | 4 | MEXLS4R05060 | h |
| 6 | 0/-0.025 | 1.00 | +/-0.010 | 6 | 10 | 75 | 4 | MEXLS4R10060 | h |
| 8 | 0/-0.030 | 0.30 | +/-0.010 | 8 | 12 | 75 | 4 | MEXLS4R03080 | h |
| 8 | 0/-0.030 | 0.50 | +/-0.010 | 8 | 12 | 75 | 4 | MEXLS4R05080 | h |
| 8 | 0/-0.030 | 1.00 | +/-0.010 | 8 | 12 | 75 | 4 | MEXLS4R10080 | h |
| 10 | 0/-0.030 | 0.50 | +/-0.010 | 10 | 14 | 100 | 4 | MEXLS4R05100 | h |
| 10 | 0/-0.030 | 1.00 | +/-0.010 | 10 | 14 | 100 | 4 | MEXLS4R10100 | h |
| 12 | 0/-0.030 | 0.50 | +/-0.010 | 12 | 16 | 100 | 4 | MEXLS4R05120 | h |
| 12 | 0/-0.030 | 1.00 | +/-0.010 | 12 | 16 | 100 | 4 | MEXLS4R10120 | h |
| 16 | 0/-0.030 | 0.50 | +/-0.010 | 16 | 22 | 125 | 4 | MEXLS4R05160 | h |
| 16 | 0/-0.030 | 1.00 | +/-0.010 | 16 | 22 | 125 | 4 | MEXLS4R10160 | h |
HL
HSS-HSS/CO
G2
MDTA
HF VH/UP
MEF
ALU
MEX
UH
HSS/CO-HSSP END MILLS
CARBIDE
