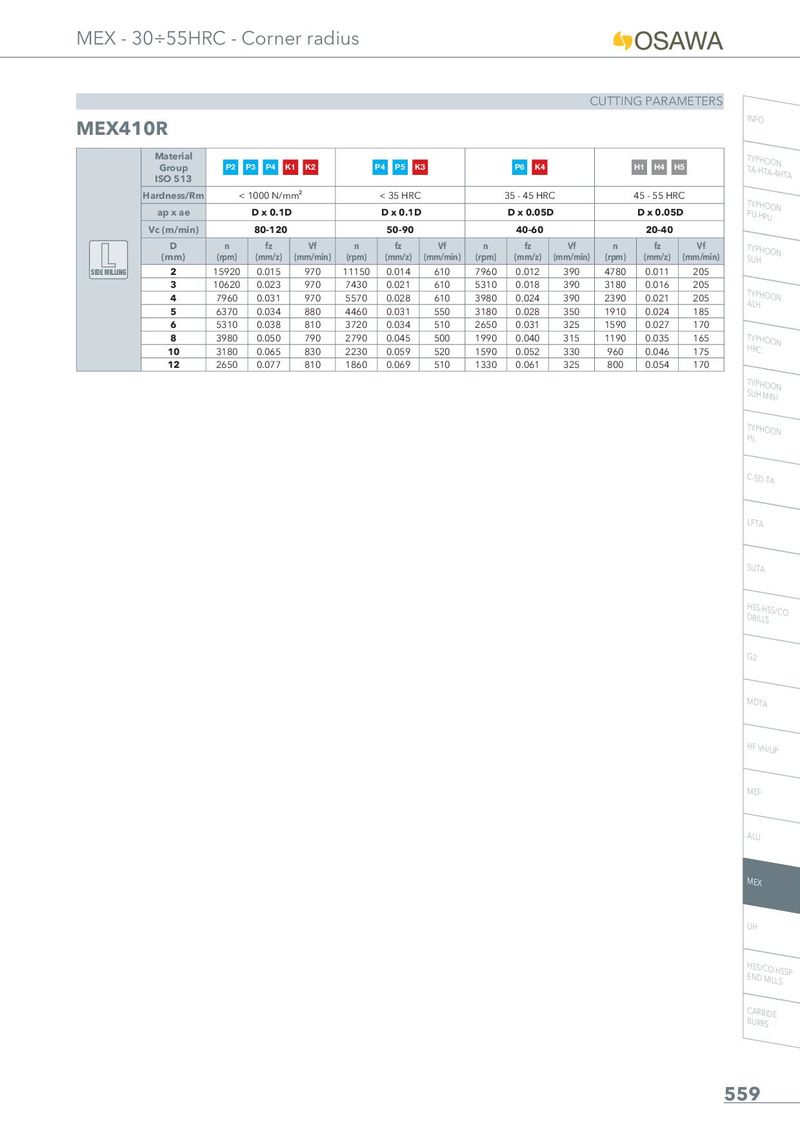

CUTTING PARAMETERS

MEX410R INFO

M I	aterial Group SO 513	P2	P3 P4 K1	K2		P4 P5 K3			P6 K4			H1 H4 H	5
Har	dness/Rm		1000 N/m	m²		< 35 HRC			35 - 45 HRC			45 - 55 HR	C
a	pxae		D x 0.1D			D x 0.1D			D x 0.05D			D x 0.05D
Vc	(m/min)		80-120			50-90			40-60			20-40
	D (mm)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)
SIDE MILLING	2	15920	0.015	970	11150	0.014	610	7960	0.012	390	4780	0.011	205
	3	10620	0.023	970	7430	0.021	610	5310	0.018	390	3180	0.016	205
	4	7960	0.031	970	5570	0.028	610	3980	0.024	390	2390	0.021	205
	5	6370	0.034	880	4460	0.031	550	3180	0.028	350	1910	0.024	185
	6	5310	0.038	810	3720	0.034	510	2650	0.031	325	1590	0.027	170
	8	3980	0.050	790	2790	0.045	500	1990	0.040	315	1190	0.035	165
	10	3180	0.065	830	2230	0.059	520	1590	0.052	330	960	0.046	175
	12	2650	0.077	810	1860	0.069	510	1330	0.061	325	800	0.054	170
