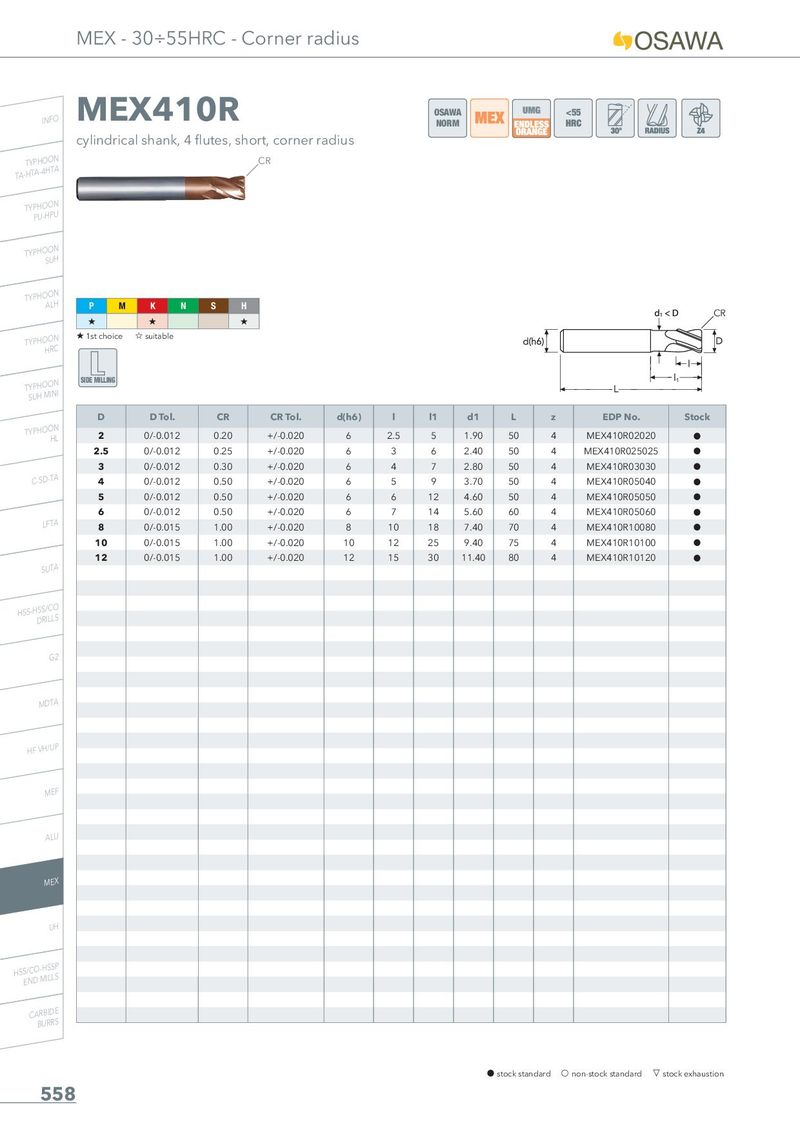

MEX410R
OSAWA <55 NORM
cylindrical shank, 4 flutes, short, corner radius
CR
| P M � | K N � | S H � | CR | ||||||||
| �1st choice SIDE MILLING | �suitable | ||||||||||
| D | D Tol. | CR | CR Tol. | d(h6) | l | l1 | d1 | L | z | EDP No. | Stock |
| 2 | 0/-0.012 | 0.20 | +/-0.020 | 6 | 2.5 | 5 | 1.90 | 50 | 4 | MEX410R02020 | h |
| 2.5 | 0/-0.012 | 0.25 | +/-0.020 | 6 | 3 | 6 | 2.40 | 50 | 4 | MEX410R025025 | h |
| 3 | 0/-0.012 | 0.30 | +/-0.020 | 6 | 4 | 7 | 2.80 | 50 | 4 | MEX410R03030 | h |
| 4 | 0/-0.012 | 0.50 | +/-0.020 | 6 | 5 | 9 | 3.70 | 50 | 4 | MEX410R05040 | h |
| 5 | 0/-0.012 | 0.50 | +/-0.020 | 6 | 6 | 12 | 4.60 | 50 | 4 | MEX410R05050 | h |
| 6 | 0/-0.012 | 0.50 | +/-0.020 | 6 | 7 | 14 | 5.60 | 60 | 4 | MEX410R05060 | h |
| 8 | 0/-0.015 | 1.00 | +/-0.020 | 8 | 10 | 18 | 7.40 | 70 | 4 | MEX410R10080 | h |
| 10 | 0/-0.015 | 1.00 | +/-0.020 | 10 | 12 | 25 | 9.40 | 75 | 4 | MEX410R10100 | h |
| 12 | 0/-0.015 | 1.00 | +/-0.020 | 12 | 15 | 30 | 11.40 | 80 | 4 | MEX410R10120 | h |
