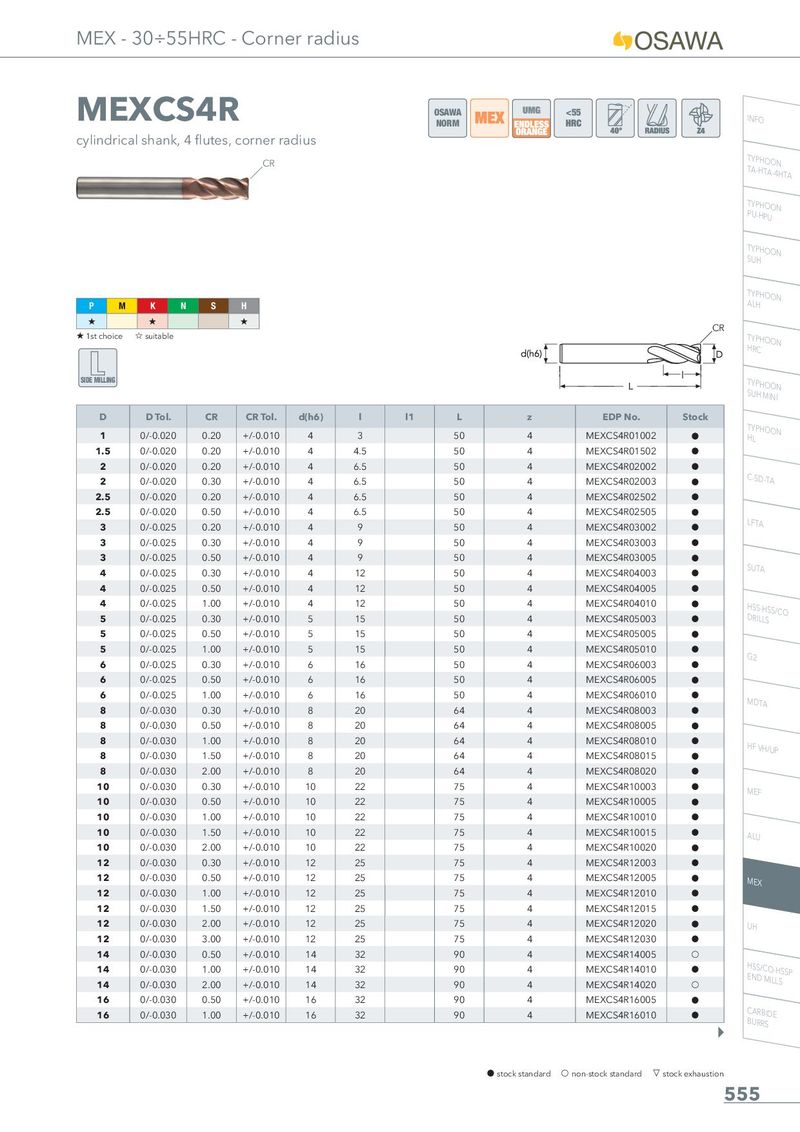

MEX - 30÷55HRC - Corner radius MEXCS4R OSAWA <55 INFO NORM cylindrical shank, 4 flutes, corner radius CR TTYAP-HHTOAO-4NHTA TPYUP-HHPOUON TSUYPHHOON P M K N S H TAYLPHHOON + + + CR + 1st choice , suitable THYRPCHOON SIDE MILLING TSUYPHHMOIONIN D D Tol. CR CR Tol. d(h6) l l1 L z EDP No. Stock 1 0/-0.020 0.20 +/-0.010 4 3 50 4 MEXCS4R01002 h THYLPHOON 1.5 0/-0.020 0.20 +/-0.010 4 4.5 50 4 MEXCS4R01502 h 2 0/-0.020 0.20 +/-0.010 4 6.5 50 4 MEXCS4R02002 h 2 0/-0.020 0.30 +/-0.010 4 6.5 50 4 MEXCS4R02003 h C-SD-TA 2.5 0/-0.020 0.20 +/-0.010 4 6.5 50 4 MEXCS4R02502 h 2.5 0/-0.020 0.50 +/-0.010 4 6.5 50 4 MEXCS4R02505 h 3 0/-0.025 0.20 +/-0.010 4 9 50 4 MEXCS4R03002 h LFTA 3 0/-0.025 0.30 +/-0.010 4 9 50 4 MEXCS4R03003 h 3 0/-0.025 0.50 +/-0.010 4 9 50 4 MEXCS4R03005 h 4 0/-0.025 0.30 +/-0.010 4 12 50 4 MEXCS4R04003 h SUTA 4 0/-0.025 0.50 +/-0.010 4 12 50 4 MEXCS4R04005 h 4 0/-0.025 1.00 +/-0.010 4 12 50 4 MEXCS4R04010 h HDSRSIL-LHSSS/CO 5 0/-0.025 0.30 +/-0.010 5 15 50 4 MEXCS4R05003 h 5 0/-0.025 0.50 +/-0.010 5 15 50 4 MEXCS4R05005 h 5 0/-0.025 1.00 +/-0.010 5 15 50 4 MEXCS4R05010 h G2 6 0/-0.025 0.30 +/-0.010 6 16 50 4 MEXCS4R06003 h 6 0/-0.025 0.50 +/-0.010 6 16 50 4 MEXCS4R06005 h 6 0/-0.025 1.00 +/-0.010 6 16 50 4 MEXCS4R06010 h MDTA 8 0/-0.030 0.30 +/-0.010 8 20 64 4 MEXCS4R08003 h 8 0/-0.030 0.50 +/-0.010 8 20 64 4 MEXCS4R08005 h 8 0/-0.030 1.00 +/-0.010 8 20 64 4 MEXCS4R08010 h HF VH/UP 8 0/-0.030 1.50 +/-0.010 8 20 64 4 MEXCS4R08015 h 8 0/-0.030 2.00 +/-0.010 8 20 64 4 MEXCS4R08020 h 10 0/-0.030 0.30 +/-0.010 10 22 75 4 MEXCS4R10003 h MEF 10 0/-0.030 0.50 +/-0.010 10 22 75 4 MEXCS4R10005 h 10 0/-0.030 1.00 +/-0.010 10 22 75 4 MEXCS4R10010 h 10 0/-0.030 1.50 +/-0.010 10 22 75 4 MEXCS4R10015 h ALU 10 0/-0.030 2.00 +/-0.010 10 22 75 4 MEXCS4R10020 h 12 0/-0.030 0.30 +/-0.010 12 25 75 4 MEXCS4R12003 h 12 0/-0.030 0.50 +/-0.010 12 25 75 4 MEXCS4R12005 h MEX 12 0/-0.030 1.00 +/-0.010 12 25 75 4 MEXCS4R12010 h 12 0/-0.030 1.50 +/-0.010 12 25 75 4 MEXCS4R12015 h 12 0/-0.030 2.00 +/-0.010 12 25 75 4 MEXCS4R12020 h UH 12 0/-0.030 3.00 +/-0.010 12 25 75 4 MEXCS4R12030 h 14 0/-0.030 0.50 +/-0.010 14 32 90 4 MEXCS4R14005 f 14 0/-0.030 1.00 +/-0.010 14 32 90 4 MEXCS4R14010 h HENSSD/CMOIL-LHSSSP 14 0/-0.030 2.00 +/-0.010 14 32 90 4 MEXCS4R14020 f 16 0/-0.030 0.50 +/-0.010 16 32 90 4 MEXCS4R16005 h 16 0/-0.030 1.00 +/-0.010 16 32 90 4 MEXCS4R16010 h CBUARRRBSIDE h stock standard f non-stock standard m stock exhaustion 555
