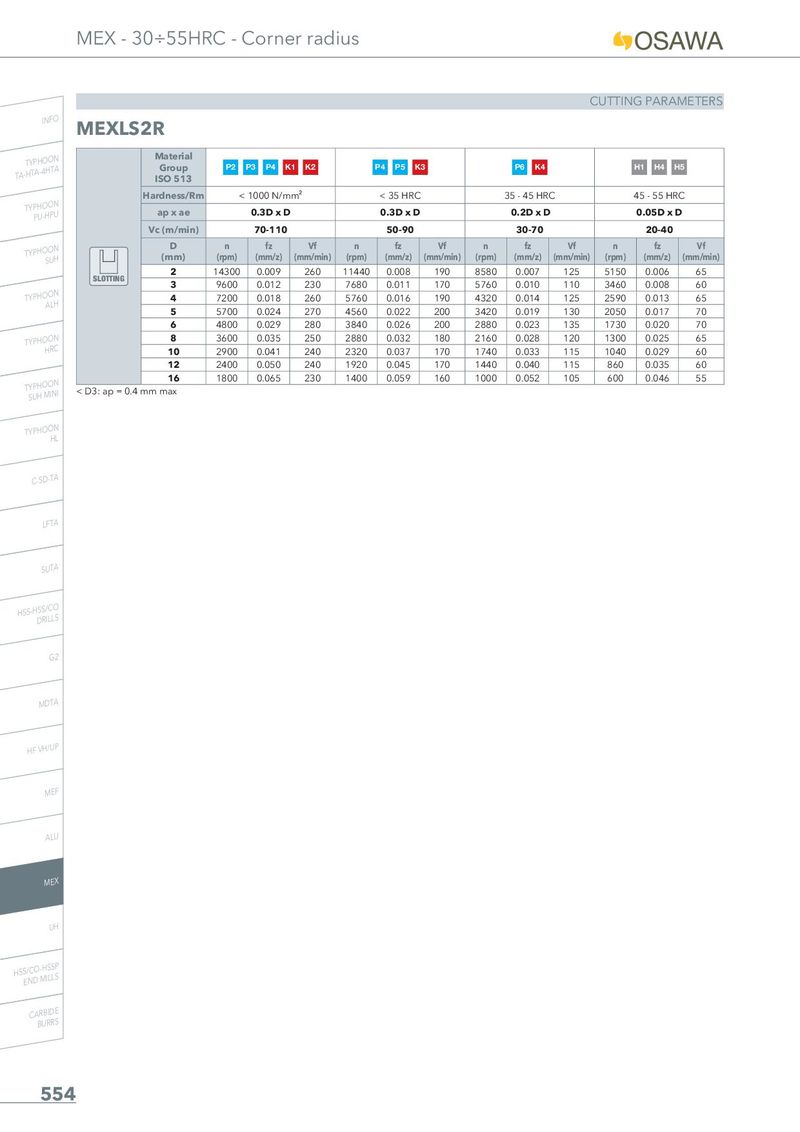

CUTTING PARAMETERS

INFO MEXLS2R

M IS	aterial Group O 513	P2	P3 P4 K1	K2		P4 P5 K	3		P6 K4			H1 H4 H	5
Har	dness/Rm		1000 N/m	m²		< 35 HRC			35 - 45 HRC			45 - 55 HR	C
a	pxae		0.3D x D			0.3D x D			0.2D x D			0.05D x D
Vc	(m/min)		70-110			50-90			30-70			20-40
	D (mm)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)	n (rpm)	fz (mm/z)	Vf (mm/min)
	2	14300	0.009	260	11440	0.008	190	8580	0.007	125	5150	0.006	65
SLOTTING	3	9600	0.012	230	7680	0.011	170	5760	0.010	110	3460	0.008	60
	4	7200	0.018	260	5760	0.016	190	4320	0.014	125	2590	0.013	65
	5	5700	0.024	270	4560	0.022	200	3420	0.019	130	2050	0.017	70
	6	4800	0.029	280	3840	0.026	200	2880	0.023	135	1730	0.020	70
	8	3600	0.035	250	2880	0.032	180	2160	0.028	120	1300	0.025	65
	10	2900	0.041	240	2320	0.037	170	1740	0.033	115	1040	0.029	60
	12	2400	0.050	240	1920	0.045	170	1440	0.040	115	860	0.035	60
	16	1800	0.065	230	1400	0.059	160	1000	0.052	105	600	0.046	55

PU-HPU

SUH

ALH

TYPHOON

TYPHOON < D3: ap = 0.4 mm max SUH MINI
