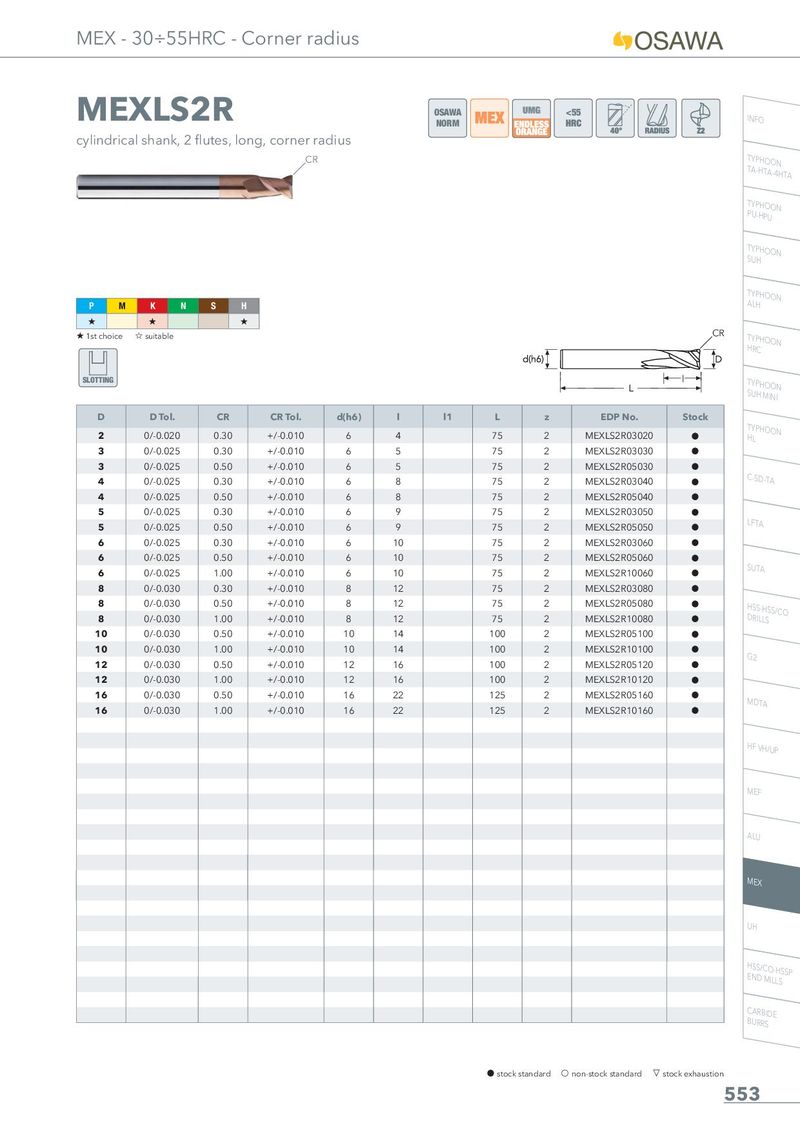

MEX - 30÷55HRC - Corner radius MEXLS2R OSAWA <55 INFO NORM cylindrical shank, 2 flutes, long, corner radius CR TTYAP-HHTOAO-4NHTA TPYUP-HHPOUON TSUYPHHOON P M K N S H TAYLPHHOON + + + + 1st choice , suitable CR THYRPCHOON SLOTTING TSUYPHHMOIONIN D D Tol. CR CR Tol. d(h6) l l1 L z EDP No. Stock 2 0/-0.020 0.30 +/-0.010 6 4 75 2 MEXLS2R03020 h THYLPHOON 3 0/-0.025 0.30 +/-0.010 6 5 75 2 MEXLS2R03030 h 3 0/-0.025 0.50 +/-0.010 6 5 75 2 MEXLS2R05030 h 4 0/-0.025 0.30 +/-0.010 6 8 75 2 MEXLS2R03040 h C-SD-TA 4 0/-0.025 0.50 +/-0.010 6 8 75 2 MEXLS2R05040 h 5 0/-0.025 0.30 +/-0.010 6 9 75 2 MEXLS2R03050 h 5 0/-0.025 0.50 +/-0.010 6 9 75 2 MEXLS2R05050 h LFTA 6 0/-0.025 0.30 +/-0.010 6 10 75 2 MEXLS2R03060 h 6 0/-0.025 0.50 +/-0.010 6 10 75 2 MEXLS2R05060 h 6 0/-0.025 1.00 +/-0.010 6 10 75 2 MEXLS2R10060 h SUTA 8 0/-0.030 0.30 +/-0.010 8 12 75 2 MEXLS2R03080 h 8 0/-0.030 0.50 +/-0.010 8 12 75 2 MEXLS2R05080 h HDSRSIL-LHSSS/CO 8 0/-0.030 1.00 +/-0.010 8 12 75 2 MEXLS2R10080 h 10 0/-0.030 0.50 +/-0.010 10 14 100 2 MEXLS2R05100 h 10 0/-0.030 1.00 +/-0.010 10 14 100 2 MEXLS2R10100 h G2 12 0/-0.030 0.50 +/-0.010 12 16 100 2 MEXLS2R05120 h 12 0/-0.030 1.00 +/-0.010 12 16 100 2 MEXLS2R10120 h 16 0/-0.030 0.50 +/-0.010 16 22 125 2 MEXLS2R05160 h MDTA 16 0/-0.030 1.00 +/-0.010 16 22 125 2 MEXLS2R10160 h HF VH/UP MEF ALU MEX UH HENSSD/CMOIL-LHSSSP CBUARRRBSIDE h stock standard f non-stock standard m stock exhaustion 553
