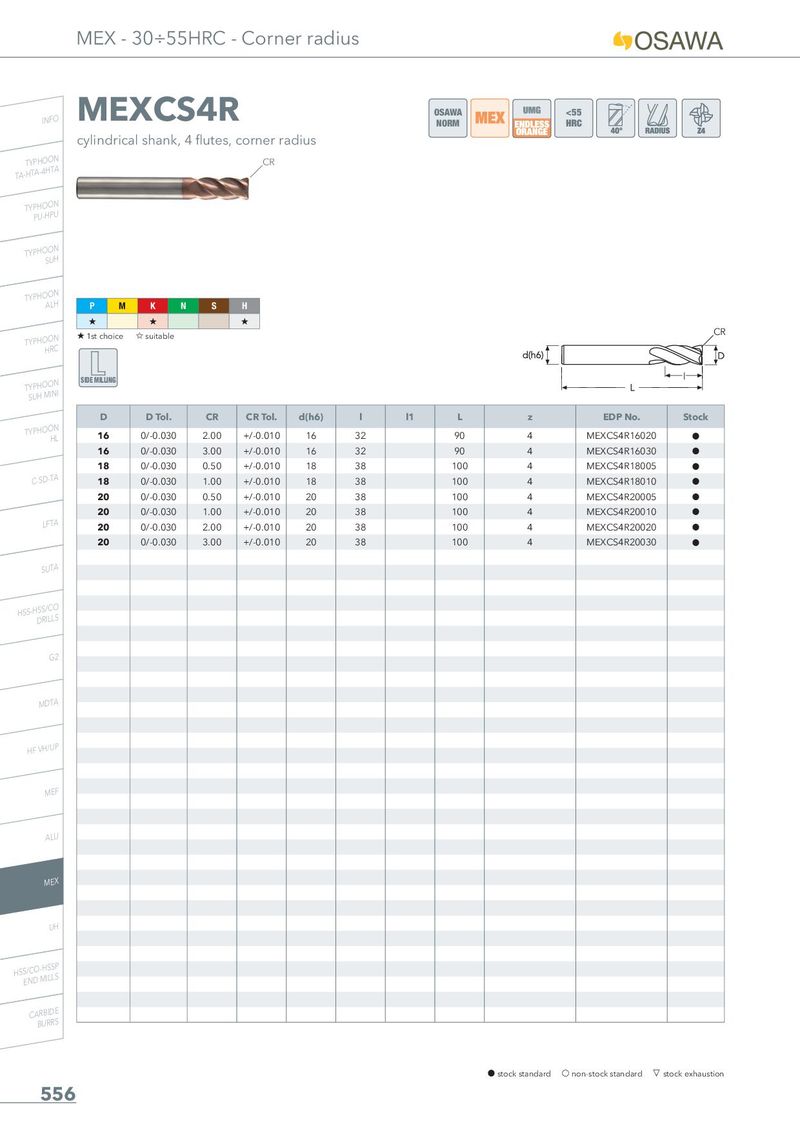

MEXCS4R
OSAWA <55 NORM
cylindrical shank, 4 flutes, corner radius
CR
| P M | K N | S | H | |||||||
| � | � | � | ||||||||
| �1st choice | �suitable | CR | ||||||||
| SIDE MILLING | ||||||||||
| D | D Tol. | CR | CR Tol. | d(h6) | l | l1 | L | z | EDP No. | Stock |
| 16 | 0/-0.030 | 2.00 | +/-0.010 | 16 | 32 | 90 | 4 | MEXCS4R16020 | h | |
| 16 | 0/-0.030 | 3.00 | +/-0.010 | 16 | 32 | 90 | 4 | MEXCS4R16030 | h | |
| 18 | 0/-0.030 | 0.50 | +/-0.010 | 18 | 38 | 100 | 4 | MEXCS4R18005 | h | |
| 18 | 0/-0.030 | 1.00 | +/-0.010 | 18 | 38 | 100 | 4 | MEXCS4R18010 | h | |
| 20 | 0/-0.030 | 0.50 | +/-0.010 | 20 | 38 | 100 | 4 | MEXCS4R20005 | h | |
| 20 | 0/-0.030 | 1.00 | +/-0.010 | 20 | 38 | 100 | 4 | MEXCS4R20010 | h | |
| 20 | 0/-0.030 | 2.00 | +/-0.010 | 20 | 38 | 100 | 4 | MEXCS4R20020 | h | |
| 20 | 0/-0.030 | 3.00 | +/-0.010 | 20 | 38 | 100 | 4 | MEXCS4R20030 | h |
