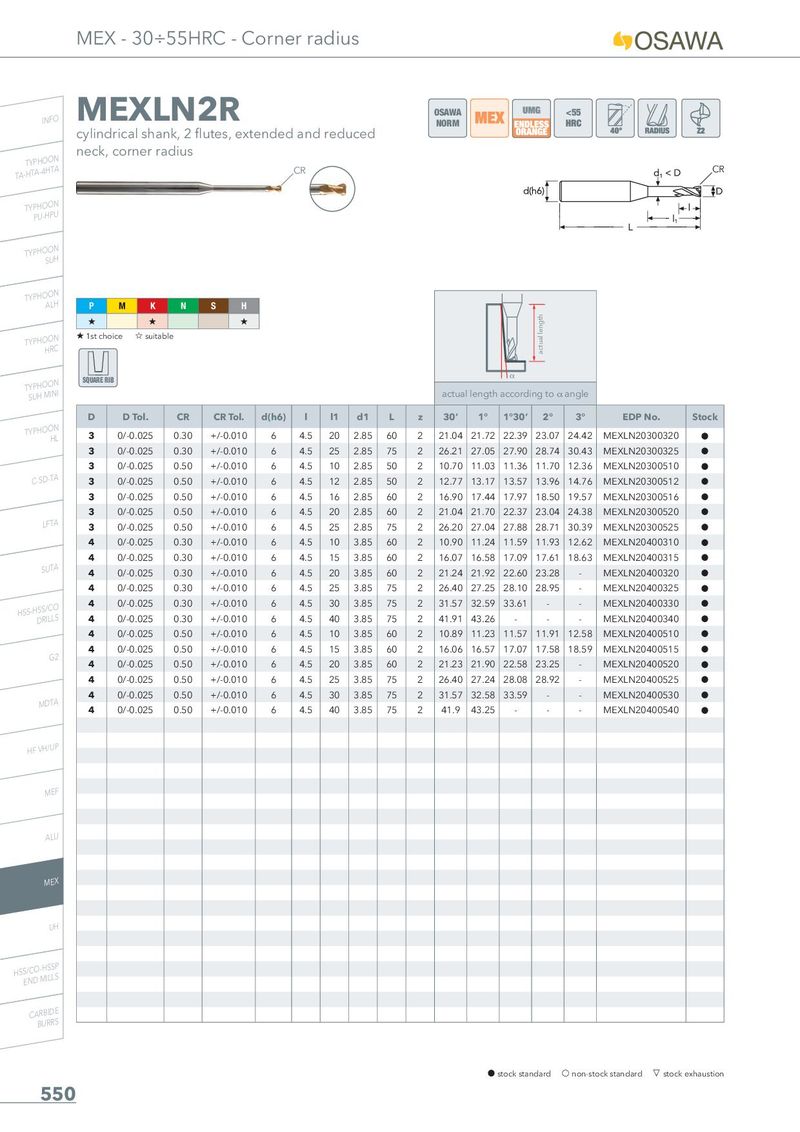

MEX - 30÷55HRC - Corner radius INFO MEXLN2R OSAWA <55 NORM cylindrical shank, 2 flutes, extended and reduced TA-THYTPAH-4OHOTNA neck, corner radius CR CR TYPPHUO-HOPNU TYPHOSOUNH TYPHOAOLNH P M K N S H + + + actual length TYPHOHORNC + 1st choice , suitable TSYUPHHOMOINNI SQUARE RIB α actual length according to _ angle D D Tol. CR CR Tol. d(h6) l l1 d1 L z 30’ 1° 1°30’ 2° 3° EDP No. Stock TYPHOOHNL 3 0/-0.025 0.30 +/-0.010 6 4.5 20 2.85 60 2 21.04 21.72 22.39 23.07 24.42 MEXLN20300320 h 3 0/-0.025 0.30 +/-0.010 6 4.5 25 2.85 75 2 26.21 27.05 27.90 28.74 30.43 MEXLN20300325 h 3 0/-0.025 0.50 +/-0.010 6 4.5 10 2.85 50 2 10.70 11.03 11.36 11.70 12.36 MEXLN20300510 h C-SD-TA 3 0/-0.025 0.50 +/-0.010 6 4.5 12 2.85 50 2 12.77 13.17 13.57 13.96 14.76 MEXLN20300512 h 3 0/-0.025 0.50 +/-0.010 6 4.5 16 2.85 60 2 16.90 17.44 17.97 18.50 19.57 MEXLN20300516 h 3 0/-0.025 0.50 +/-0.010 6 4.5 20 2.85 60 2 21.04 21.70 22.37 23.04 24.38 MEXLN20300520 h LFTA 3 0/-0.025 0.50 +/-0.010 6 4.5 25 2.85 75 2 26.20 27.04 27.88 28.71 30.39 MEXLN20300525 h 4 0/-0.025 0.30 +/-0.010 6 4.5 10 3.85 60 2 10.90 11.24 11.59 11.93 12.62 MEXLN20400310 h 4 0/-0.025 0.30 +/-0.010 6 4.5 15 3.85 60 2 16.07 16.58 17.09 17.61 18.63 MEXLN20400315 h SUTA 4 0/-0.025 0.30 +/-0.010 6 4.5 20 3.85 60 2 21.24 21.92 22.60 23.28 - MEXLN20400320 h 4 0/-0.025 0.30 +/-0.010 6 4.5 25 3.85 75 2 26.40 27.25 28.10 28.95 - MEXLN20400325 h HSS-HDSSR/ILCLOS 4 0/-0.025 0.30 +/-0.010 6 4.5 30 3.85 75 2 31.57 32.59 33.61 - - MEXLN20400330 h 4 0/-0.025 0.30 +/-0.010 6 4.5 40 3.85 75 2 41.91 43.26 - - - MEXLN20400340 h 4 0/-0.025 0.50 +/-0.010 6 4.5 10 3.85 60 2 10.89 11.23 11.57 11.91 12.58 MEXLN20400510 h G2 4 0/-0.025 0.50 +/-0.010 6 4.5 15 3.85 60 2 16.06 16.57 17.07 17.58 18.59 MEXLN20400515 h 4 0/-0.025 0.50 +/-0.010 6 4.5 20 3.85 60 2 21.23 21.90 22.58 23.25 - MEXLN20400520 h 4 0/-0.025 0.50 +/-0.010 6 4.5 25 3.85 75 2 26.40 27.24 28.08 28.92 - MEXLN20400525 h MDTA 4 0/-0.025 0.50 +/-0.010 6 4.5 30 3.85 75 2 31.57 32.58 33.59 - - MEXLN20400530 h 4 0/-0.025 0.50 +/-0.010 6 4.5 40 3.85 75 2 41.9 43.25 - - - MEXLN20400540 h HF VH/UP MEF ALU MEX UH HSSE/NCDO-MHISLSLPS CARBIDE BURRS h stock standard f non-stock standard m stock exhaustion 550
